Button battery holder installation method

Button battery seat is button battery connector, used for loading button battery, generally welded on the PCB board, used for module clock power supply, including a body, positive electrode part, negative electrode part, by the bottom of the seat body relative edge are respectively fixed and limited to the battery convex bar rib and positioning seat.

First, the installation of button battery seat

1. The CMOS battery on the computer motherboard generally uses the button battery of model 2032;

2. The installation method basically follows the same principle, that is, the [positive side] with letters is facing upwards;

3. During installation, place the positive pole side with letters upward in the [battery bin] and press it into the battery bin;

4. The flat side of the button battery is the negative connector spring, and the protruding side is the positive connector protruding that.

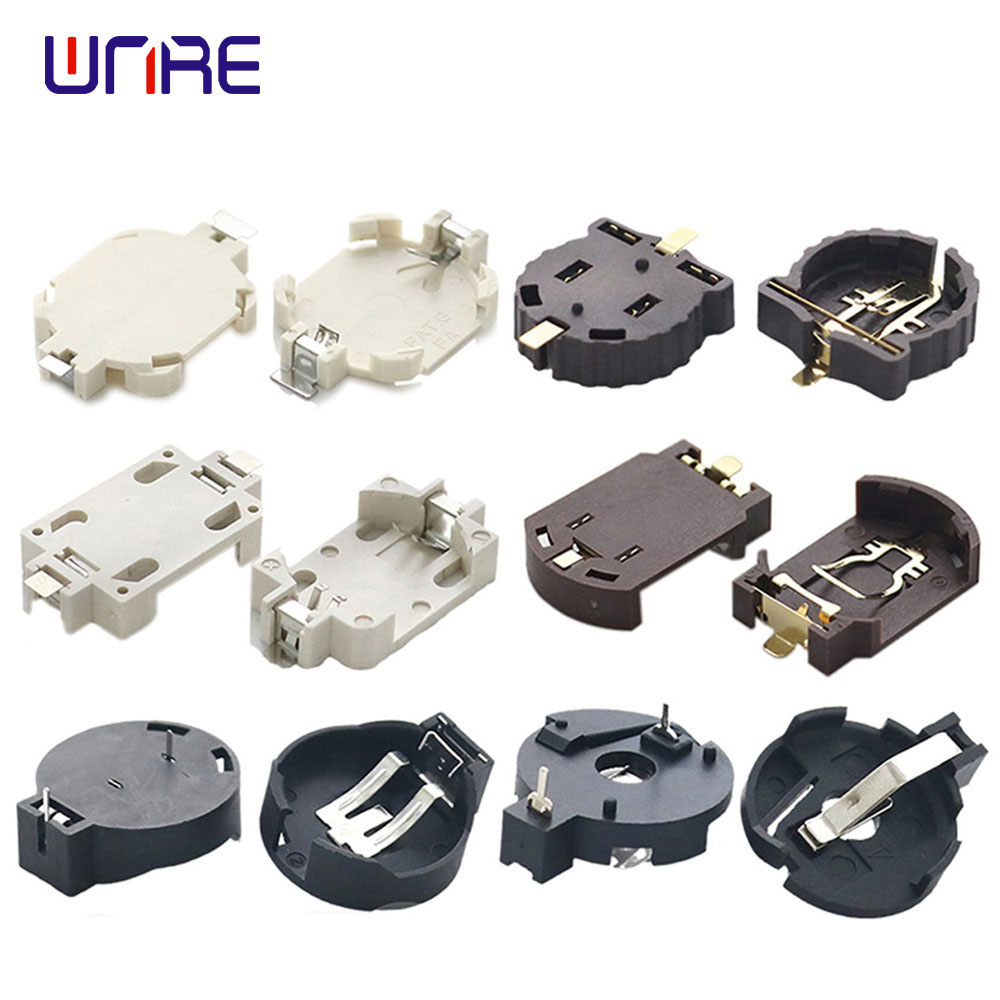

battery holder-3
