Use and precautions of battery holder BS-2450-1

Battery holder BS-2450-1 with ribbons, also called CR2450 button batteries, for use with CR2450 batteries.

2450 represents the standard size of the battery, with 24 representing a diameter of 24.5mm and 50 representing a height of 5.0mm.

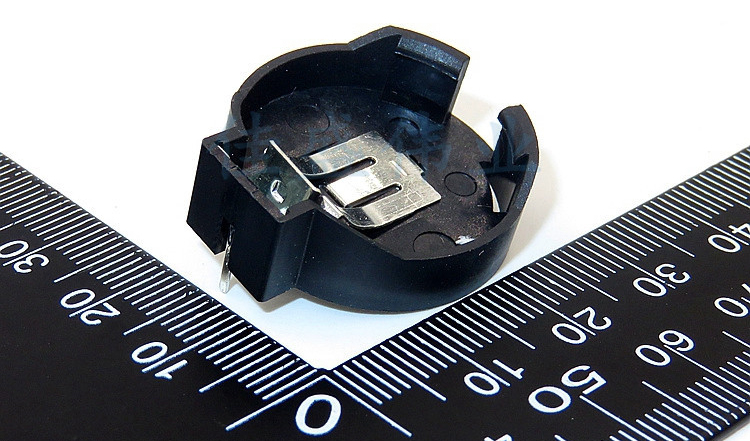

BS-2450-1

Scope of application:
1: RTC real-time clock chip power supply for various electronic products.
2: ultra-thin remote control, automobile remote control.
3: medical equipment, digital toys, industrial control board, fire protection, etc.

Usage:
1. There is a DIP foot on the battery seat. The tin is soldered on the hole or pad of the PCB board, and the battery is placed in the battery seat.
2. Spot weld the battery, weld the pins, and then weld the battery with the feet on the PCB board.

Note:
(1) Battery spot welding will produce high temperature and pressure, which can easily damage the electrical performance of the battery
(2) the spot welding battery can not go through the wave soldering, will cause the battery short circuit lead to scrap

Notes for use:
1. Do not pile the batteries together in a disorderly and naked way.
2. Do not weld directly on the surface of the battery. Heating the battery will easily lead to electrolyte leakage and internal short circuit.
3. Do not charge the battery, it will cause the rapid expansion of the battery and explosion and fire.
4. Don’t split the battery.
5. do not make the battery deformation.
6. different types of batteries can not be mixed.
7. the correct installation and use of the battery, to prevent the battery short circuit and wrong installation of positive and negative pole

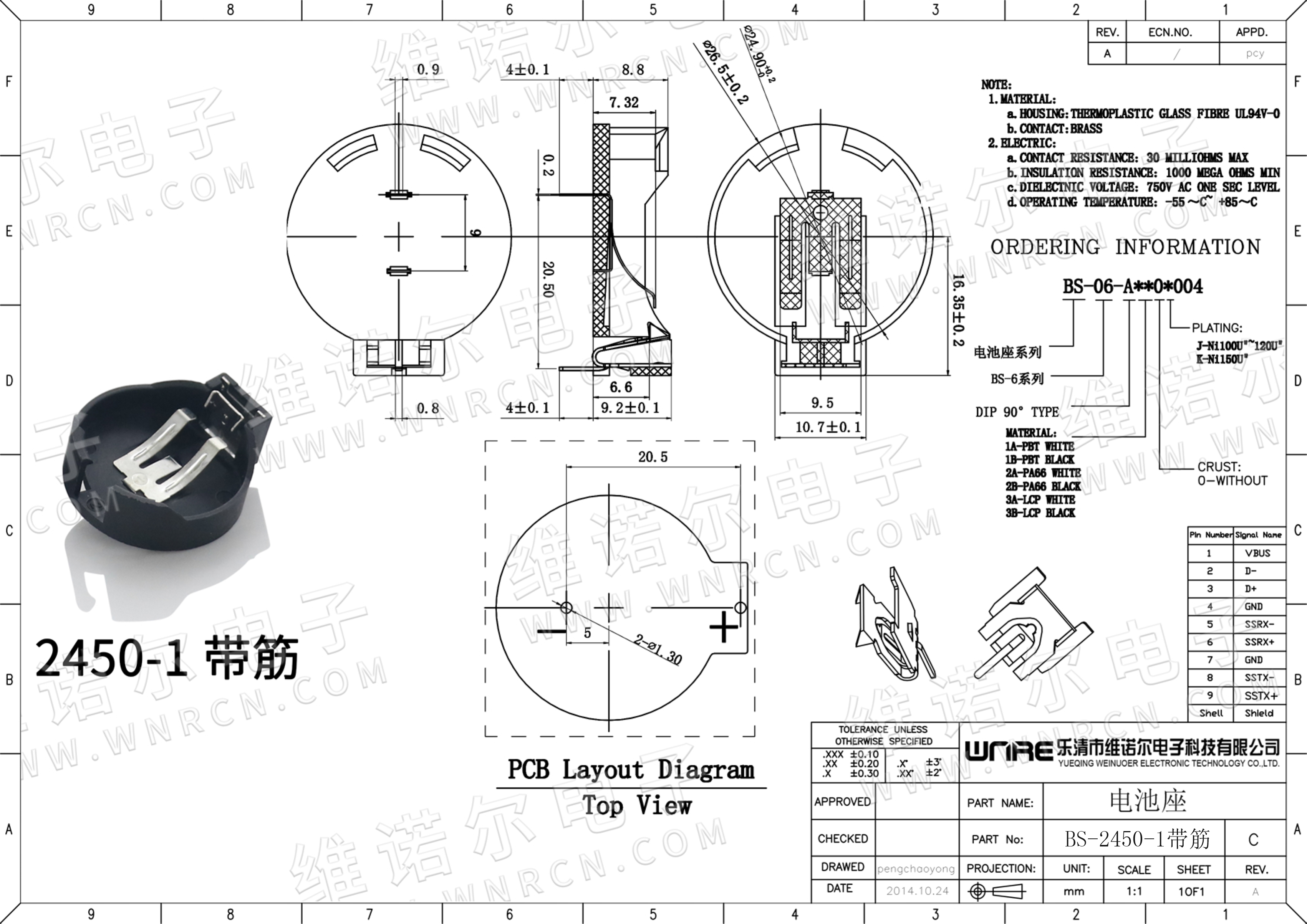

BS-2450-1

Learn more about battery holders:

battery holder-3
