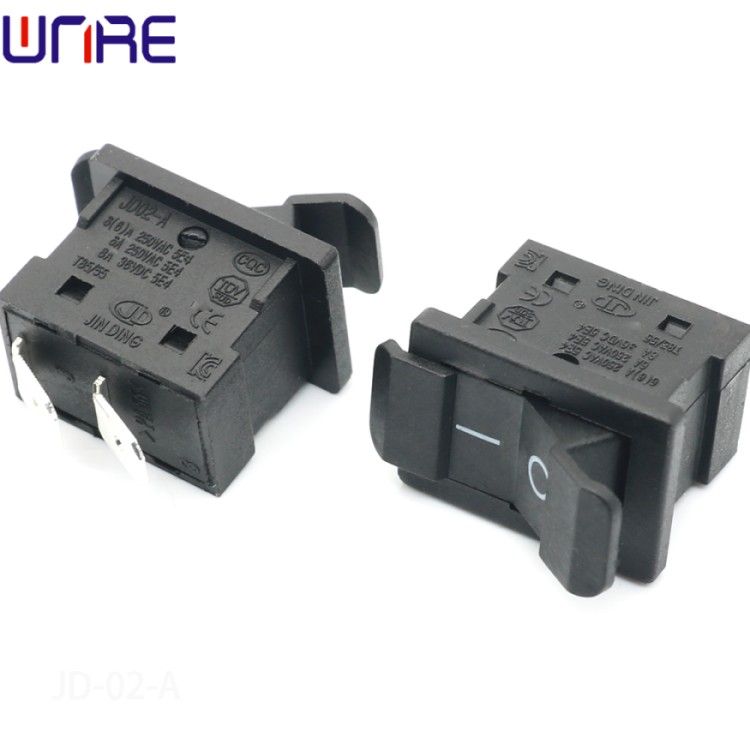

KCD1 rocker boat shaped switch 15 * 21 two gear two pin self reset button power boat shaped switch patch

SERIES:  JD02 rocker switch

Mounting Type：snap-in

CIRCUIT:      ON-OFF SPDT maintain

Panel Cutout Dimensions Rectangular – X mm x 13mm

Illumination：Non-Illuminated

BODY COLOR:            Black

ACTUATOR COLOR:        Black Red Blue Green Yellow Orange

TERMINATION:   4.8mm tab terminal

MATERIAL                                 Finished PLATING

Rocker: PA66

Spring：Steel wire T9A

housing: PA66

terminal: According to customer requirements

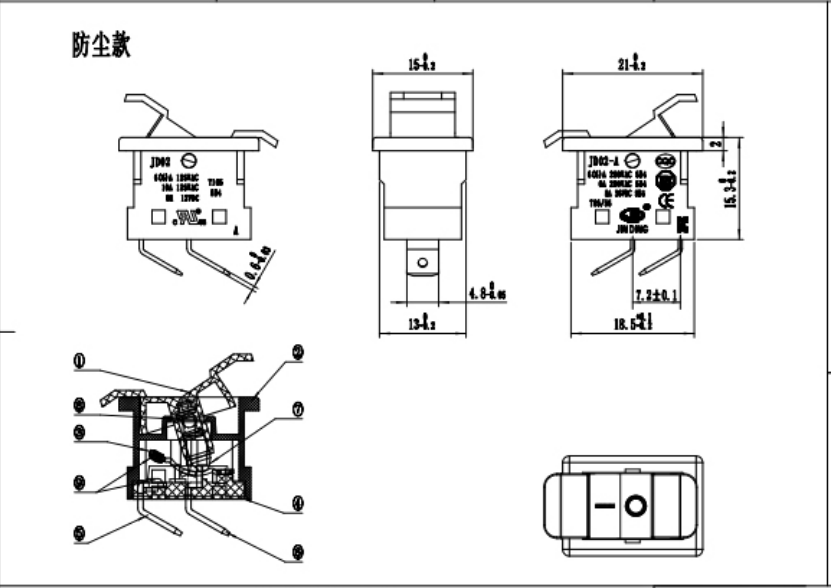

Drawing

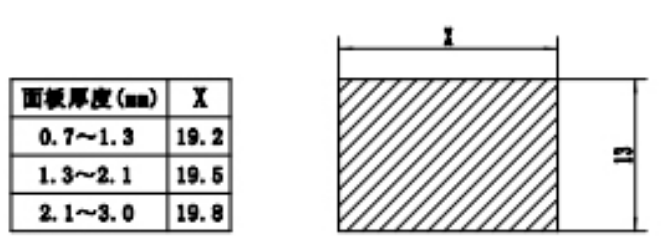

Panel opening size
