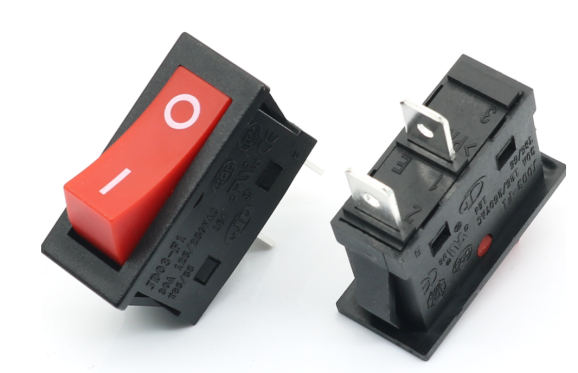

KCD3 boat type switch 13 * 31mm 250v 30A two speed two legged boat type rocker power supply

SERIES: JD03 rocker switch

Mounting Type：snap-in

CIRCUIT:      ON-OFF SPDT maintain

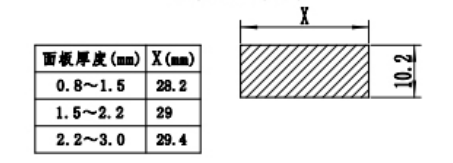

Panel Cutout Dimensions Rectangular – Xmm x10.2mm

Illumination：Non-Illuminated

BODY COLOR:            Black

ACTUATOR COLOR:        Black Red Blue Green Yellow Orange

MARKING:

TERMINATION:   6.3mm tab terminal

MATERIAL                                 Finished PLATING

Rocker: PA66

Spring：Qin steel wire

housing: PA66

terminal: According to customer requirements

Advantage:
Most of our products are CE UL CCC certificated. We specialized in producing and design Rocker switches for more than 20 years.
We do OEM of 1Waterproof 2Base type 3Body color 4Rocker color 5Actuator shape 6Making 7Position 8Terminal Current to satisfy your requirement.

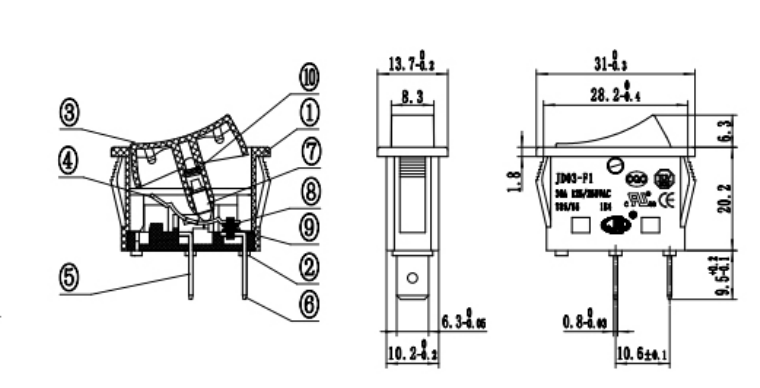

Drawing
