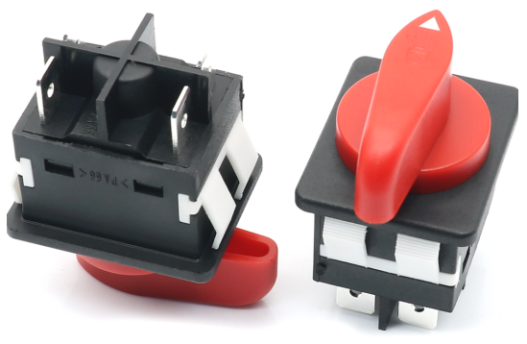

KCD4 rotary button boat shaped switch 2nd gear 30A telephone high-power rocker power universal switch

SERIES:         JD06 Rocker switch

Mounting Type：snap-in

Panel Cutout Dimensions Rectangular – 30mm x 22mm

Illumination：Non-Illuminated

BODY COLOR:            Black

ACTUATOR COLOR:        Black Red Blue Green Yellow Orange

MARKING:

TERMINATION:   8.5mm tab terminal

MATERIAL                                 Finished PLATING

Rocker: PA66

Spring：Steel wire T9A

housing: PA66

terminal:According to customer requirements

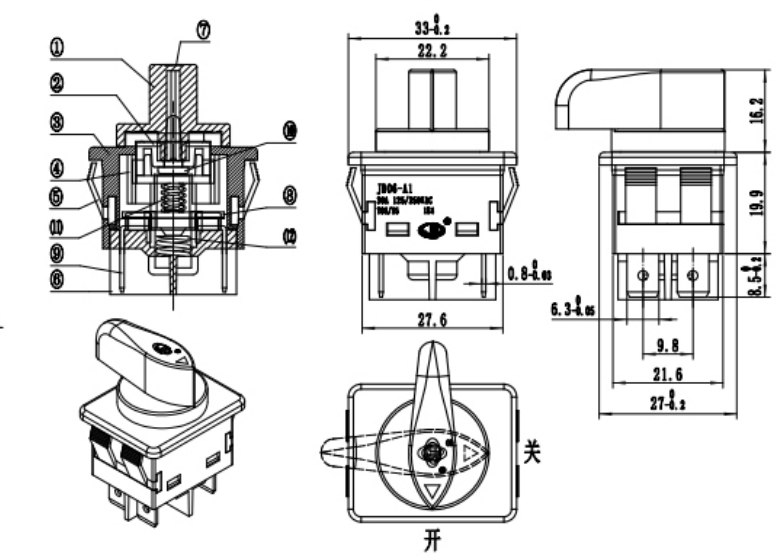

Drawing

.

Panel opening size
