What are the characteristics of the microswitch?

Characteristics of microswitch

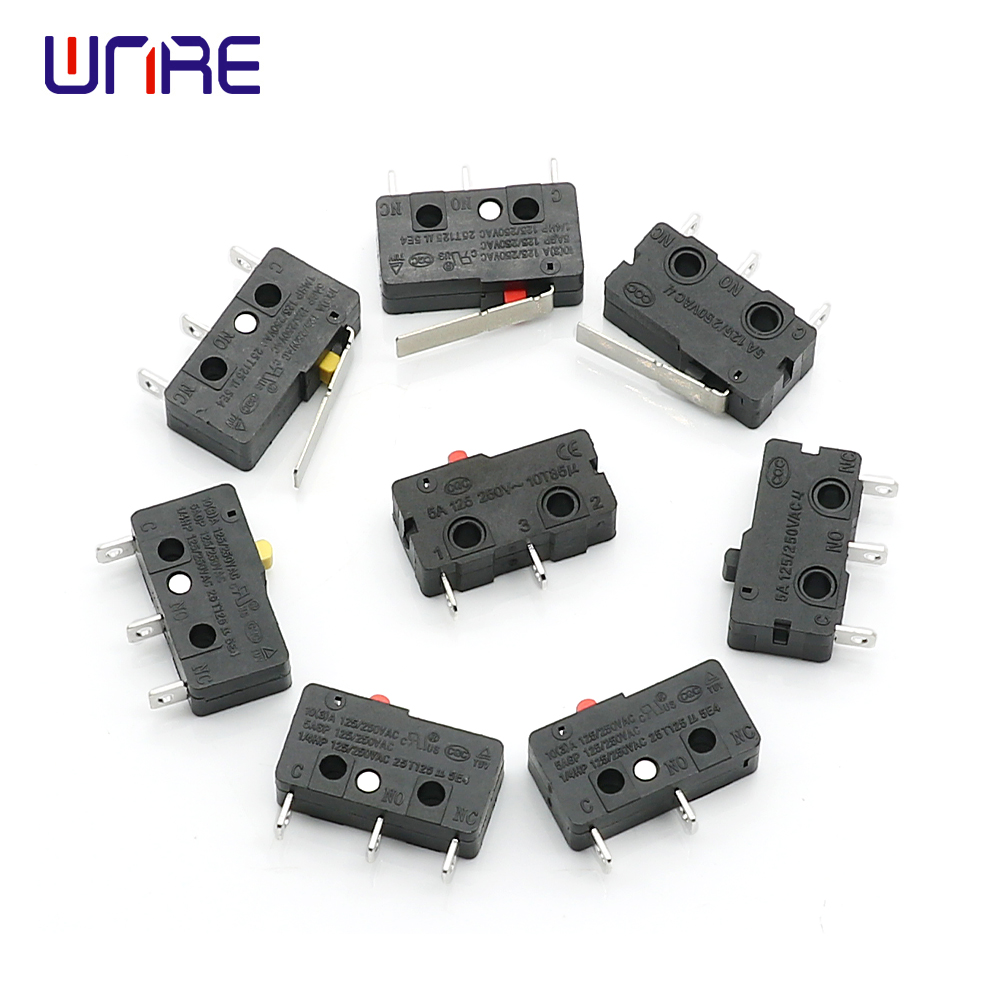

micro switch

1. Although the specifications and models are small, the total flow rate of power switch is large

Normally, when an electronic circuit is turned off, a flame, full name arc, will result between the contacts. The greater the total electric flow, the more likely it is to lead to arc light, the slow speed of changing the contact, the longer the arc light time delay, which is the factor leading to contact deterioration. The quick mechanism of the micro switch can change the contact in an instant, so the arc time delay is short. Although the specifications and models are small, they can use the power circuit with a very large total flow.

2, precision machining

Even if the micro switch continues to open/close the operation process can basically transform the contact in the same position, so the position detection error is small, can be used to require precision machining scope. This is also the unique advantage of microswitch with quick mechanism.

3. Performance indicators

Because the arc light time delay is short, the contact is less damaged, so the performance index is improved.

4. Touch and sound

The quick-moving mechanism has unusual touch and sound during operation, so the operation process can be defined according to the hand feeling and auditory system software.

Characteristics of small, medium and large microswitch

1, pocket type, lightweight, precision processing.

2, can use practical screws m3 mm type.

3, in addition to the forming terminal and with the structure of the specification distance, so that the solder wire, flux can not invade the power switch inside.

4, also necessary the most available small current strength load of small power supply circuit type (AU cable sheath point contact).

5, independent terminal, beneficial to install to the printing and packaging board. The main body of the power switch is separate from the printing and packaging board of 1.2~1.6mm.

6, also necessary printing and packaging board right corner terminal and left corner terminal product series.

7. Comply with ROHS instructions.




Post time: Jul-05-2022
