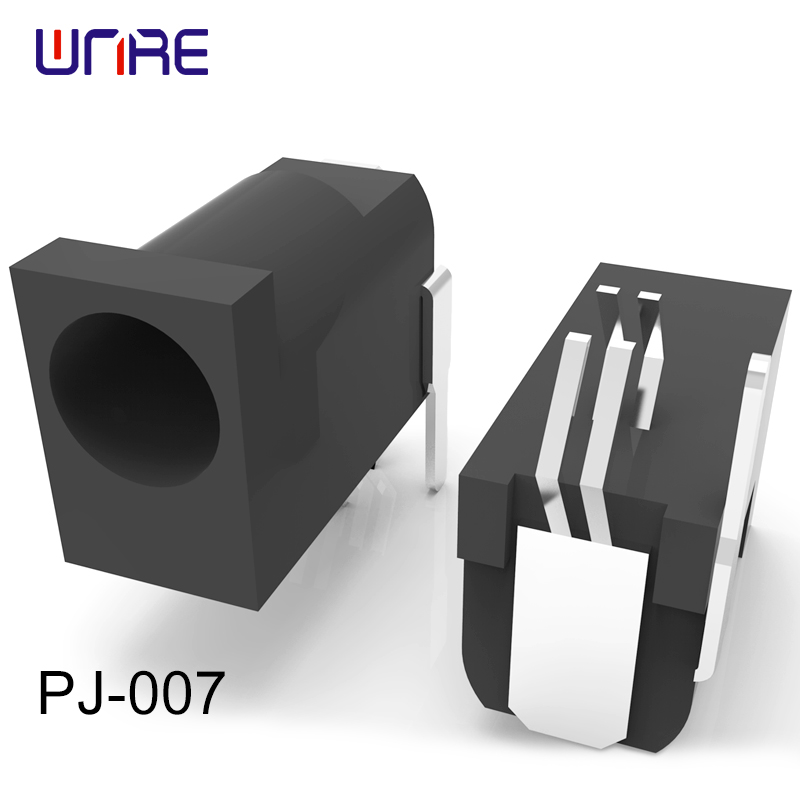

PJ-007 DC power JACK PCB mount tapered PC pins non-shielded

PJ-007 DC power JACK PCB mount tapered PC pins non-shielded Featured Image
  • PJ-007 DC power JACK PCB mount tapered PC pins non-shielded

Short Description:

Model no.PJ-007

DESCRIPTION: DC power JACK

FEATURES

• PCB mount

• tapered PC pins

• non-shielded

rated input voltage 24V
rated input current 3.5A
contact resistance between terminal and mating plug 50mΩ
between terminal in a closed circuit 30mΩ
insulation resistance ≥100MΩ 500VDC
voltage withstand for one minute 500V AC（50Hz）/min
insertion/withdrawal force 0.3-2kg
operating temperature -25-85℃
life at a rate of 10-20 cycles/minute 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

SOLDERABILITY

parameter conditions/description min typ max units
wave soldering dipped in solder pot for 5±0.5 seconds 255 260 265 ℃

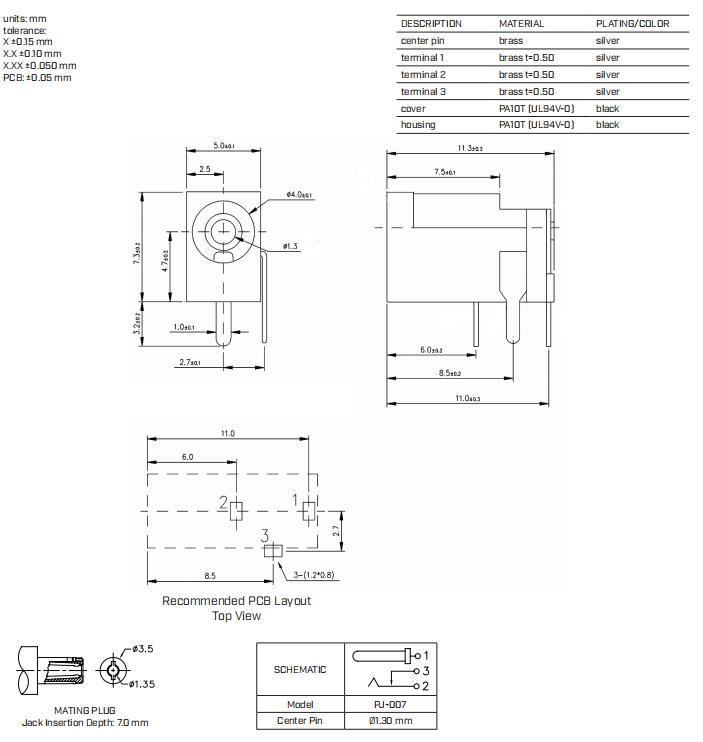

PRODUCT DRAWING

PRODUCT DRAWING
