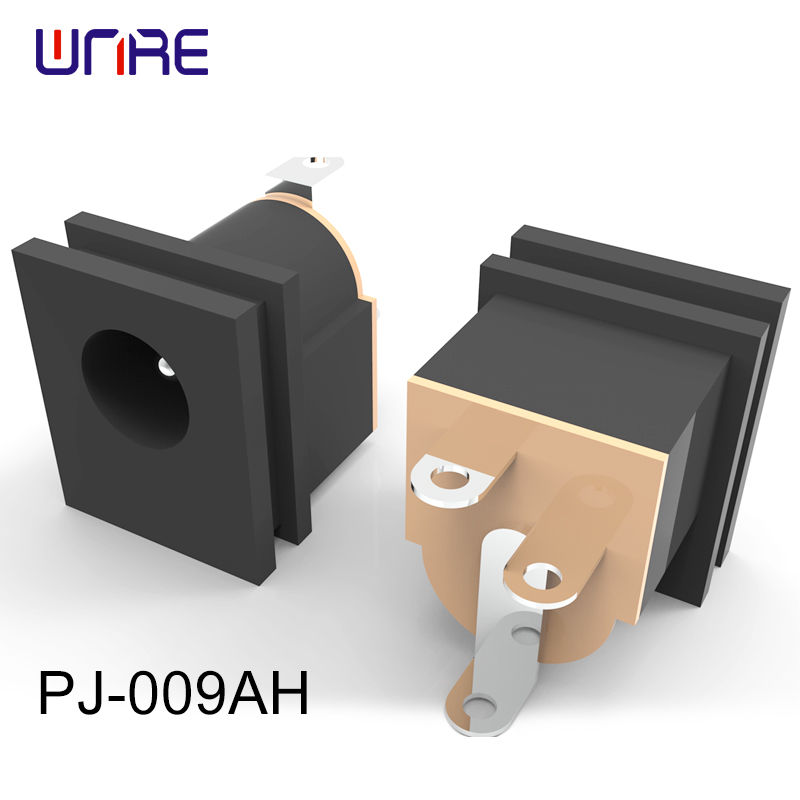

PJ-009AH DC power JACK 2.0 mm center pin 24V 5 A rating UL94V-0

PJ-009AH DC power JACK 2.0 mm center pin 24V 5 A rating UL94V-0 Featured Image

Short Description:

Model no.PJ-009AH

DESCRIPTION: DC power JACK

FEATURES

• 2.0 mm center pin

• 5 A rating

rated input voltage	24V
rated input current	2.5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	≥100MΩ 500VDC
voltage withstand for one minute	500V AC（50Hz）/min
insertion/withdrawal force	5-20N
operating temperature	-25-85℃
life at a rate of 10-20 cycles/minute	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

SOLDERABILITY

parameter	conditions/description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 seconds	255	260	265	℃

DESCRIPTION	MATERIAL	PLATING
center pin	brass	nickel
terminal 1	brass	tin
terminal 2	copper alloy	tin
terminal 3	brass	tin
housing	PBT

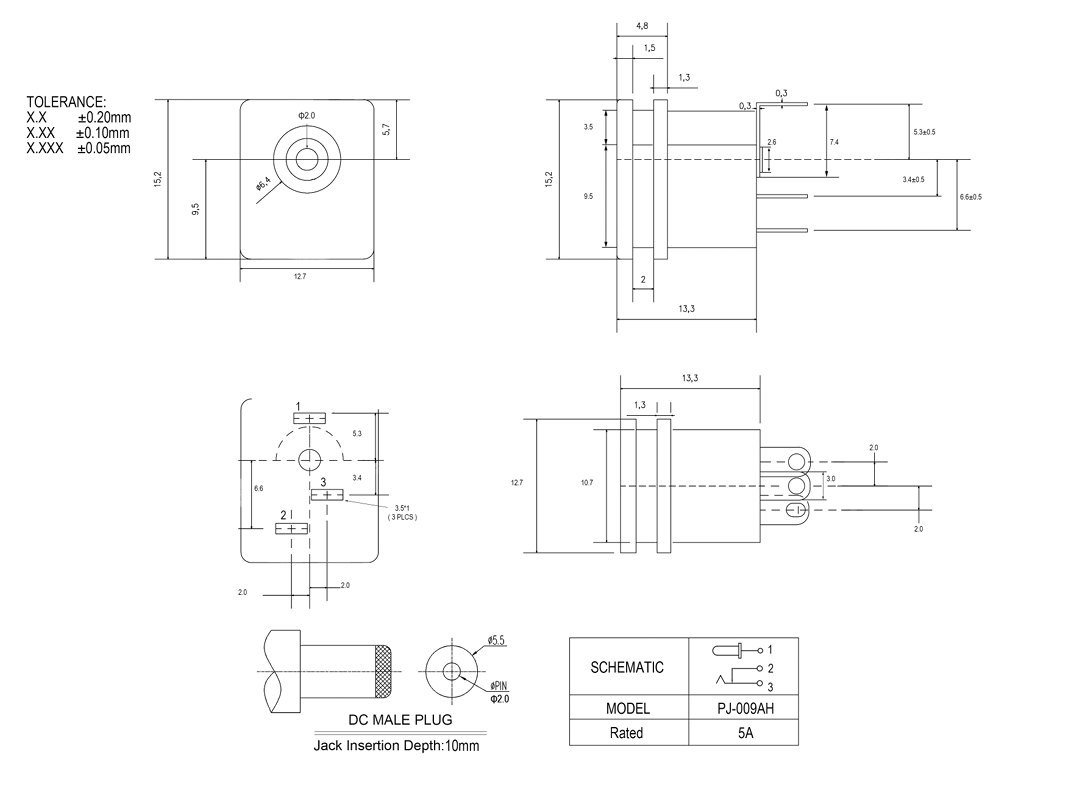

PRODUCT DRAWING
