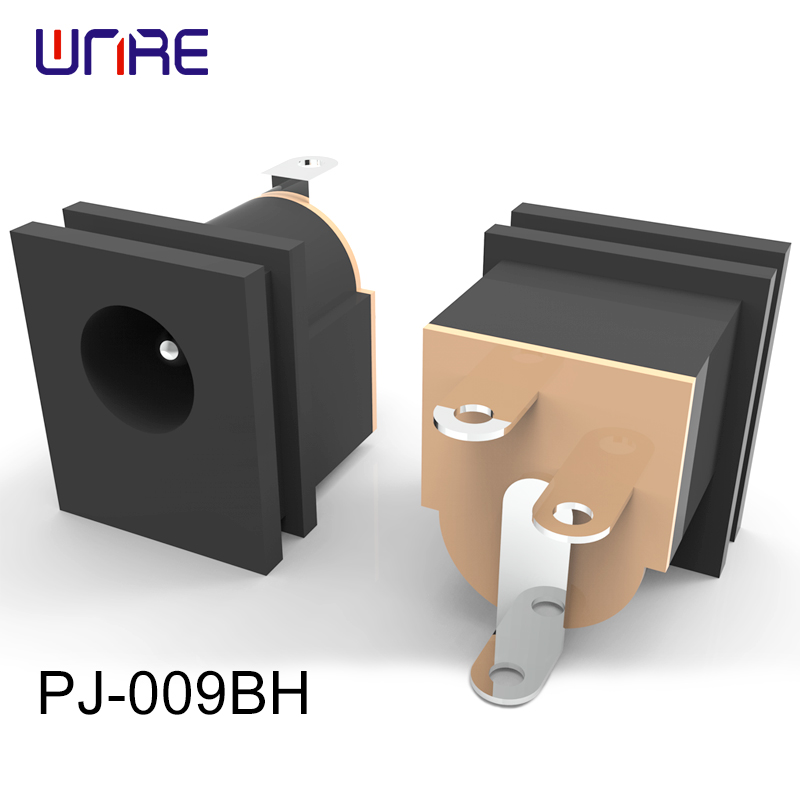

PJ-009BH DC power JACK 2.5 mm center pin 24V 5 A rating

PJ-009BH DC power JACK 2.5 mm center pin 24V 5 A rating Featured Image
  • PJ-009BH DC power JACK 2.5 mm center pin 24V 5 A rating

Short Description:

Model no.PJ-009BH

DESCRIPTION: DC power JACK

FEATURES

• 2.5 mm center pin

• 5 A rating

rated input voltage 24V
rated input current 2.5A
contact resistance between terminal and mating plug 50mΩ
between terminal in a closed circuit 30mΩ
insulation resistance ≥100MΩ 500VDC
voltage withstand for one minute 500V AC（50Hz）/min
insertion/withdrawal force 5-20N
operating temperature -25-85℃
life at a rate of 10-20 cycles/minute 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

SOLDERABILITY

parameter conditions/description min typ max units
wave soldering dipped in solder pot for 5±0.5 seconds 255 260 265 ℃



DESCRIPTION MATERIAL PLATING
center pin brass nickel
terminal 1 brass tin
terminal 2 copper alloy tin
terminal 3 brass tin
housing PBT

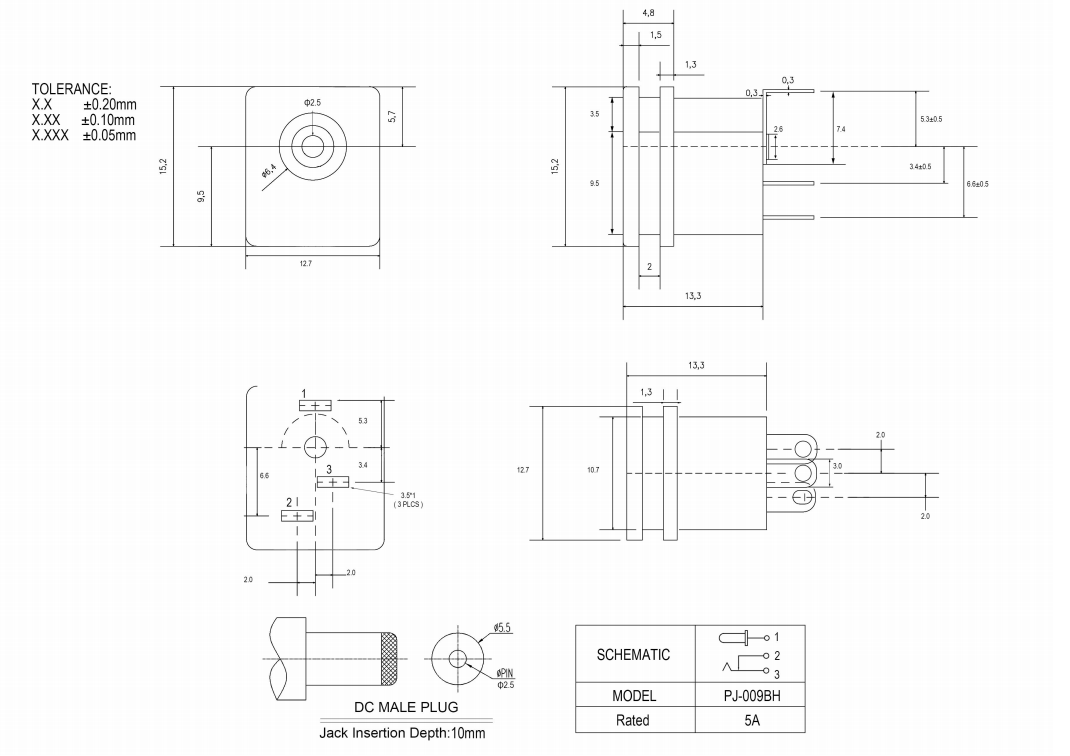

PRODUCT DRAWING

PRODUCT DRAWING
