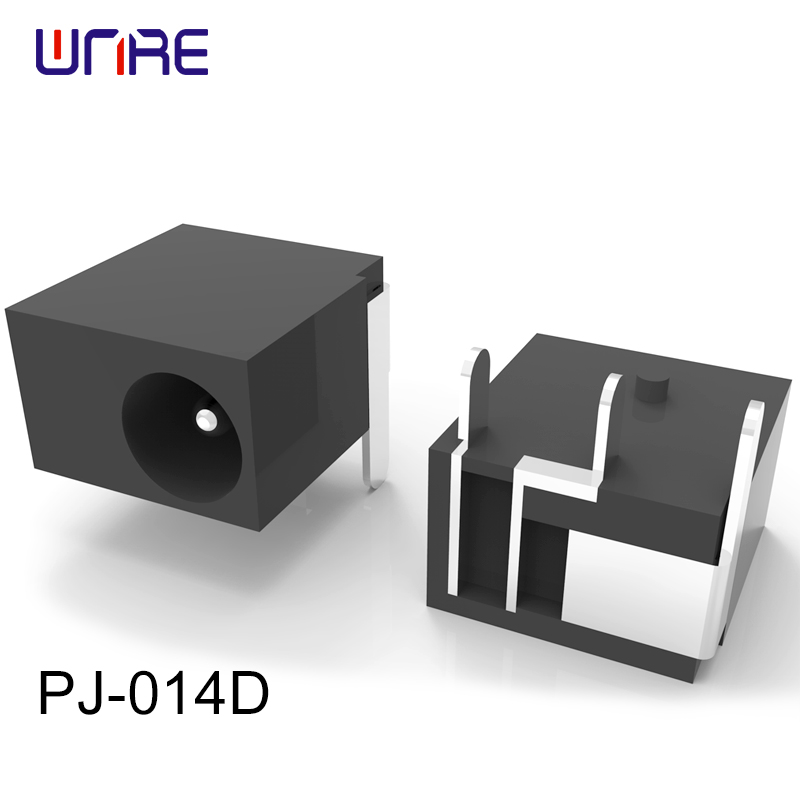

PJ-014D DC power JACK 2.5 A rating through hole mounting 1.3 mm center pin

PJ-014D DC power JACK 2.5 A rating through hole mounting 1.3 mm center pin Featured Image
  • PJ-014D DC power JACK 2.5 A rating through hole mounting 1.3 mm center pin

Short Description:

Model no.PJ-014D

DESCRIPTION: DC power JACK

FEATURES

• 1.3 mm center pin

• 2.5 A rating

• right angle orientation

• through hole mounting

rated input voltage 24V
rated input current 2.5A
contact resistance 50mΩ
insulation resistance 100MΩ 500VDC
voltage withstand 500V AC
insertion/withdrawal force 0.3-3kg
operating temperature -25-85℃
life 5000 cycles
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

SOLDERABILITY

parameter conditions/description min typ max units
wave soldering dipped in solder pot for 5 ±0.5 seconds



 255 260 265 ℃

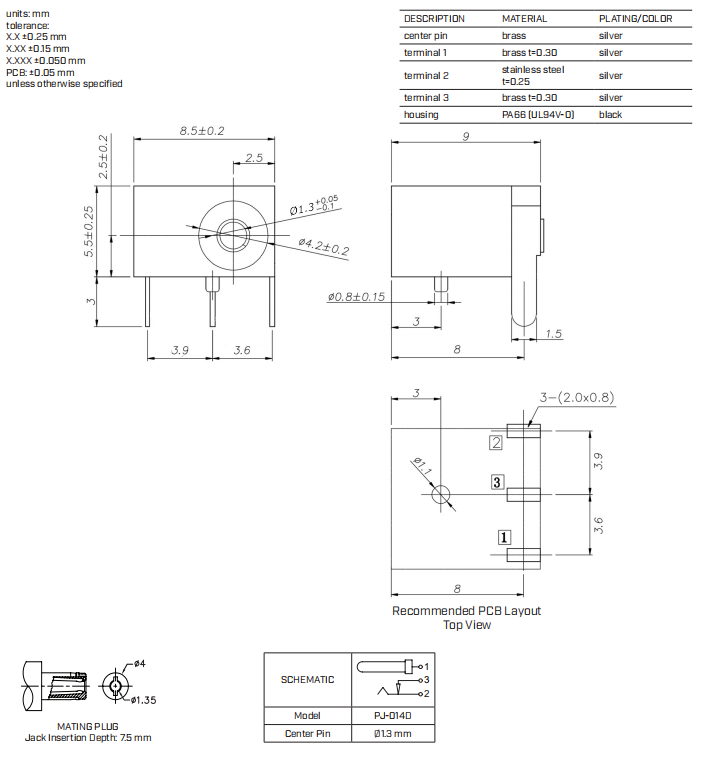

PRODUCT DRAWING

PRODUCT DRAWING
