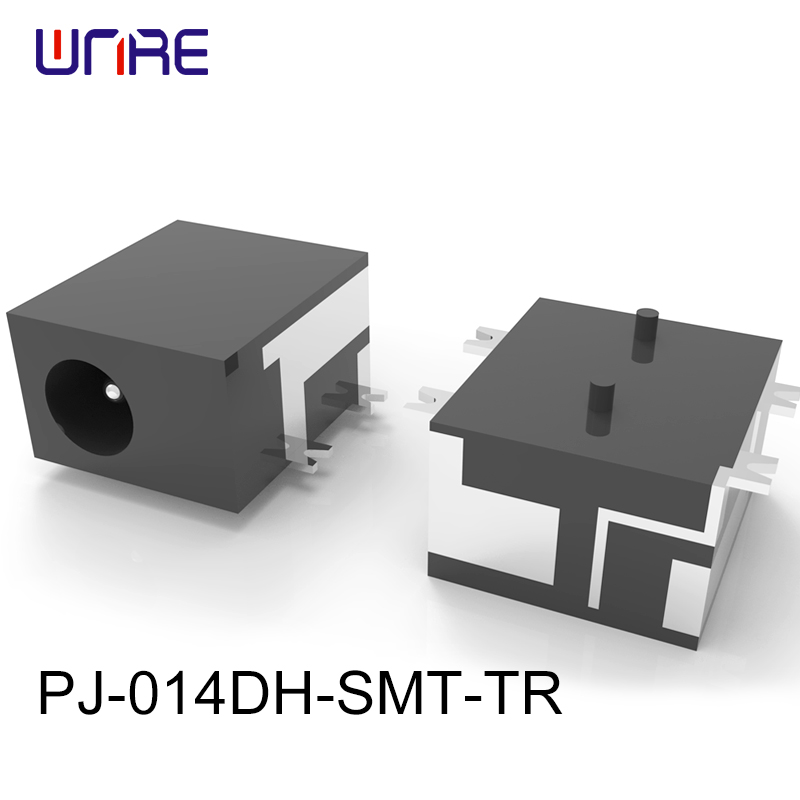

PJ-014DH-SMT-TR DC power JACK low profile 3.5 A current rating

Short Description:

Model no.PJ-014DH-SMT-TR

DESCRIPTION: DC power JACK

FEATURES

• low profile

• 3.5 A current rating

rated input voltage	24V
rated input current	3.5A
contact resistance	30mΩ
insulation resistance	100MΩ 500VDC
voltage withstand for one minute	500V AC
insertion/withdrawal force	0.3-2kg
operating temperature	-25-85℃
life	5000 cycles
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

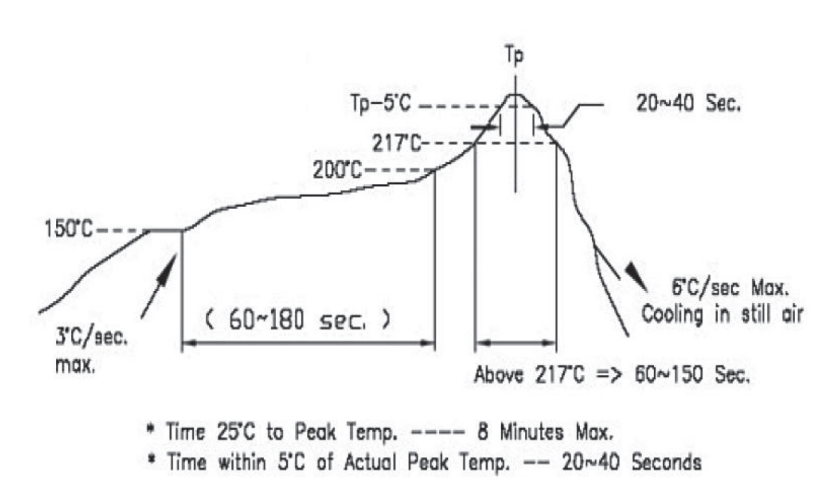

SOLDERABILITY

parameter	conditions/description	min	typ	max	units
reel storage	10~30°C, <70% humidity				℃
reflow soldering¹	see reflow profile	255	260		℃
drying conditions²	parts in reel: bake at 110℃ for 4 hours parts removed from reel: bake at 110℃ for 4 hours

Note:

1. CUI Devices recommends to solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.

2. When exceeding floor life by >240 hours.

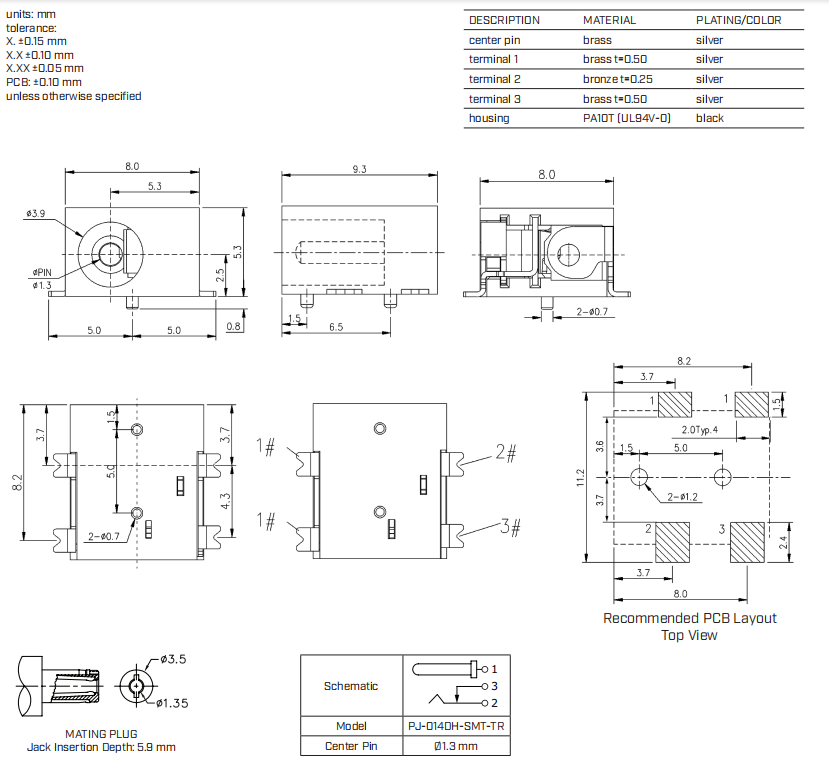

PRODUCT DRAWING

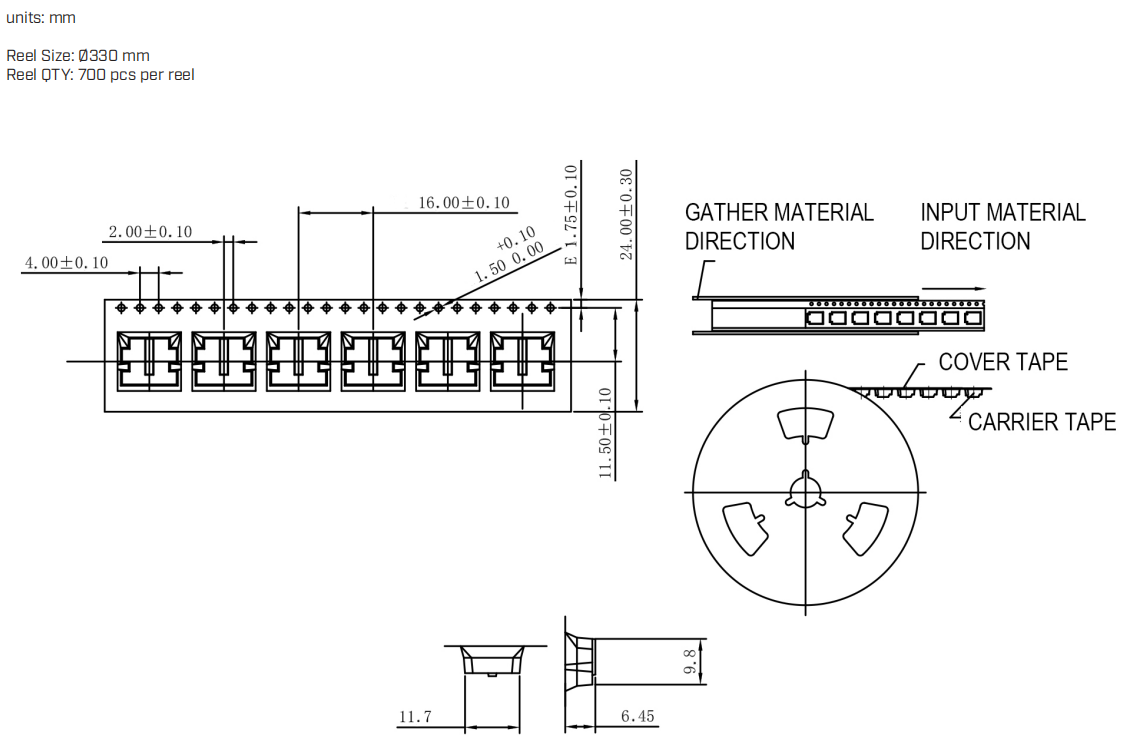

PACKAGING

Previous: PJ-038-SMT-TR DC power JACK 0.65 mm center pin 1.0 A rating

Next: PJ-030DH-SMT-TR DC power JACK
