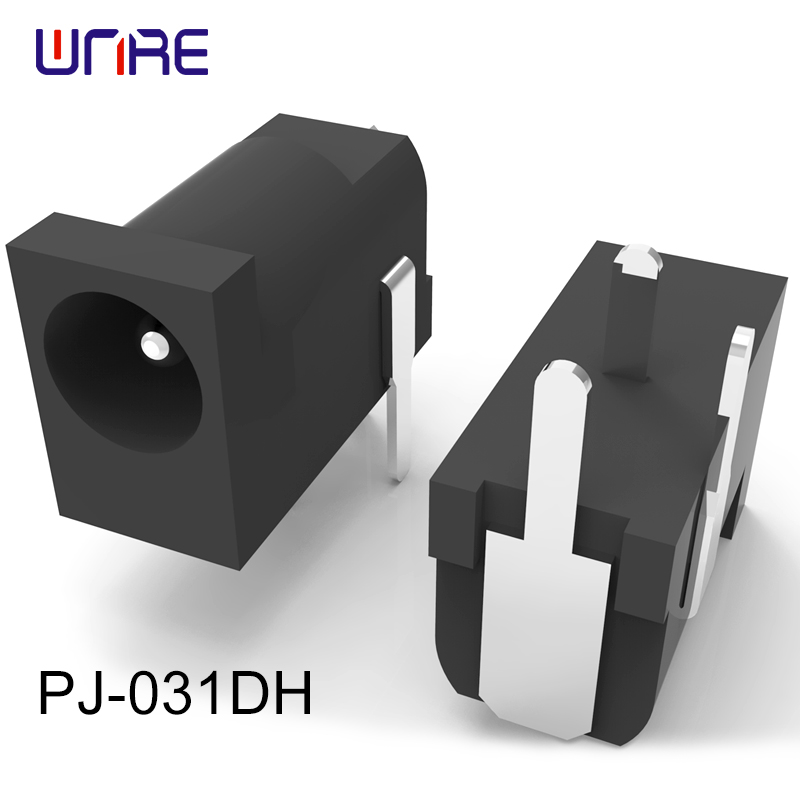

PJ-031DH DC power JACK 1.3 mm center pin through hole mount

Model no.PJ-031DH

DESCRIPTION: DC power JACK

FEATURES

• 1.3 mm center pin

• 3.5 A rating

• right angle orientation

• through hole mount

Product Detail

SOLDERABILITY

parameter	conditions/description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 seconds	255	260	265	℃

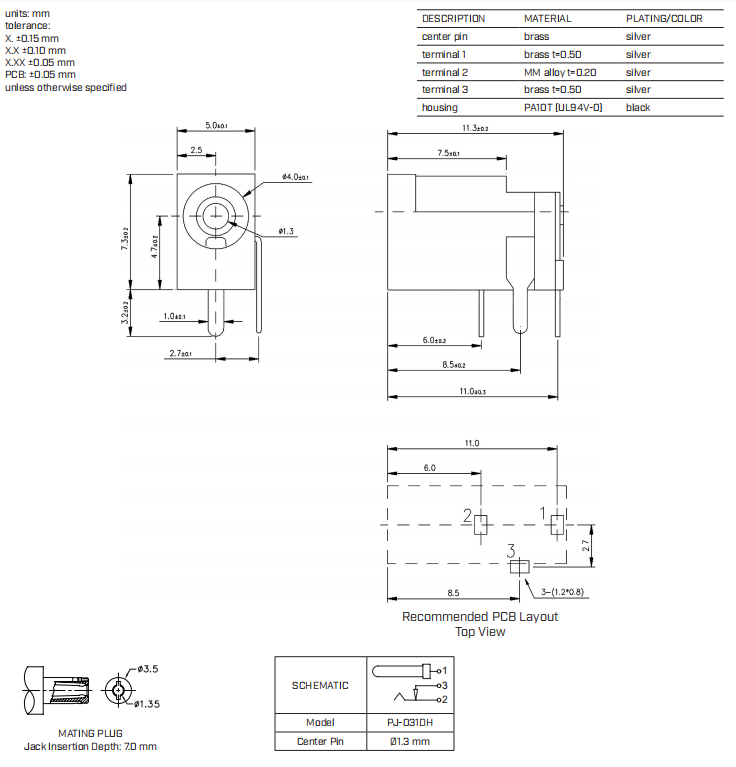

PRODUCT DRAWING
