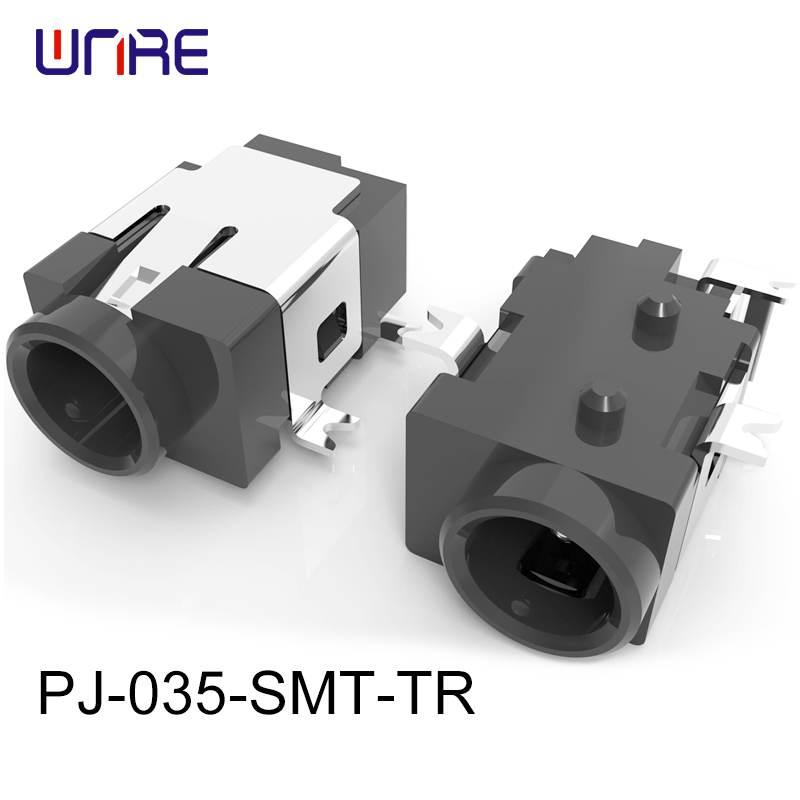

PJ-035-SMT-TR DC power JACK 1.0 mm center pin 3 conductor shielded

Model no.PJ-035-SMT-TR

DESCRIPTION: DC power JACK

FEATURES

• 1.0 mm center pin

• 2.0 A rating

• right angle orientation

• surface mount(SMT)

• shielded

• 3 conductor

rated input voltage	24V
rated input current	2.0A
contact resistance¹	between terminal and mating plug 50mΩ
contact resistance¹	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ 500VDC
voltage withstand for 1 minute	500V AC
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life at a rate of 24 cycles/minute	5000 cycles
flammability rating	UL94V-0
RoHS	Yes

Note:

1. When measured at a current of less than 100 mA/1 kHz

2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.

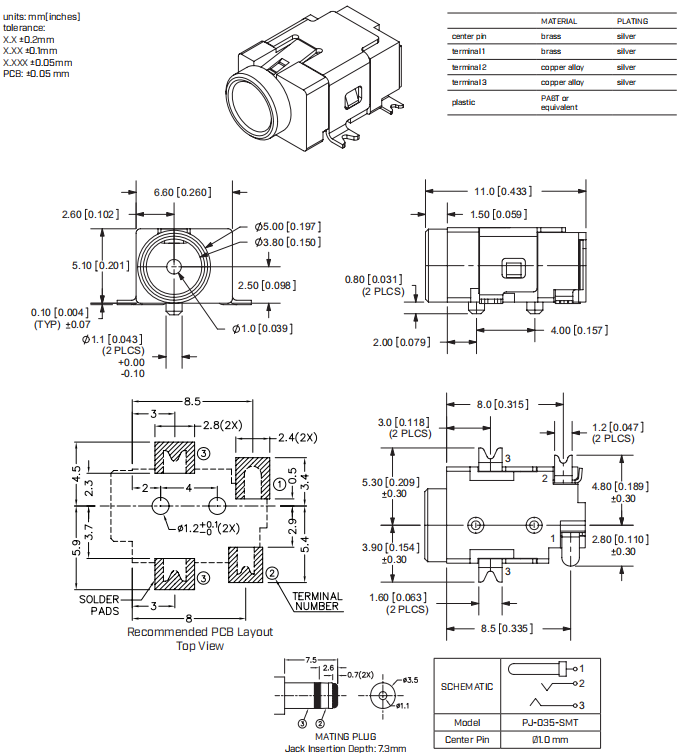

Product Detail

SOLDERABILITY

parameter	conditions/description	min	typ	max	units

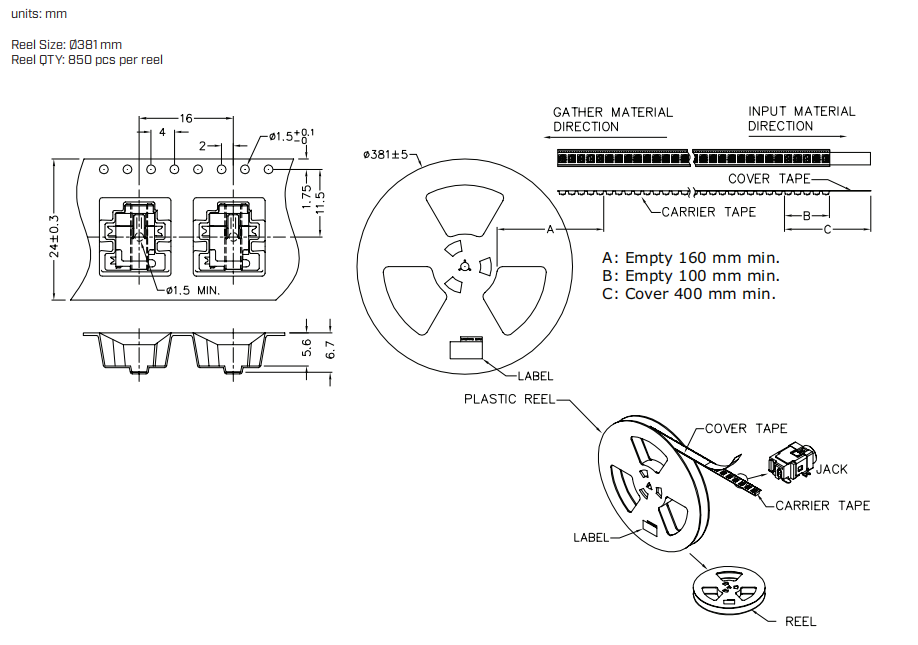

reel storage	at relative humidity <80%			40	℃

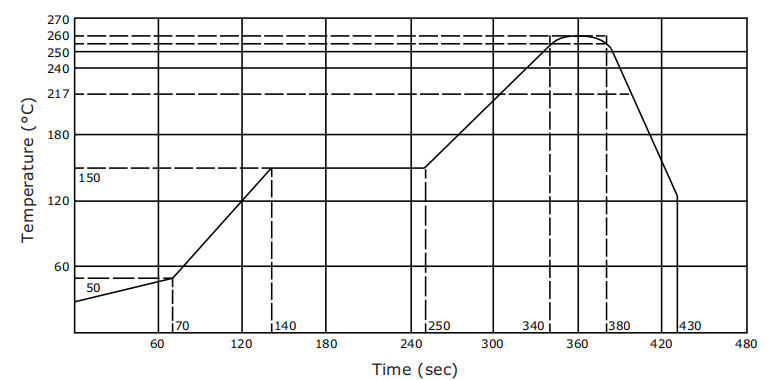

reflow soldering¹	see reflow profile	255	260	265	℃
drying conditions²	parts in reel: bake at 40℃ ±5℃ for 72 hours parts removed from reel: bake at 40°C ±5°C for 10 hours
