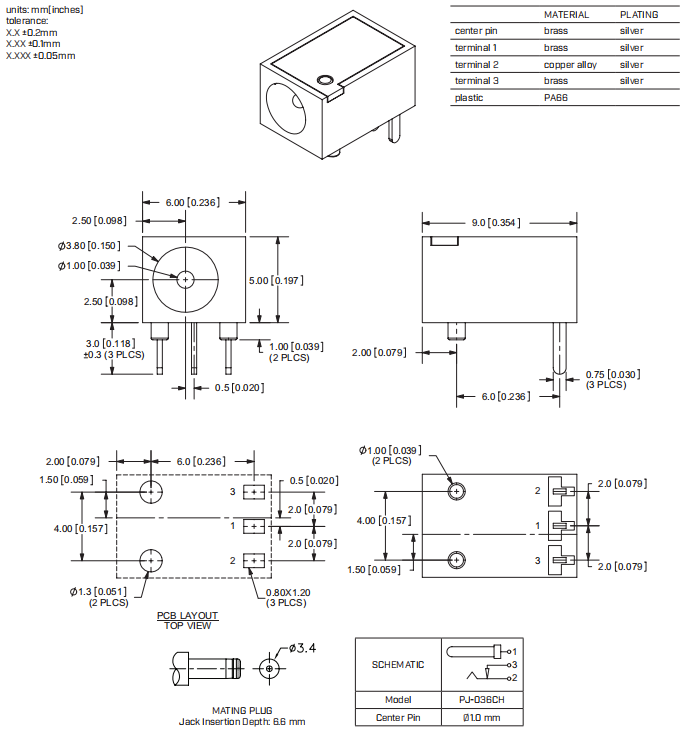

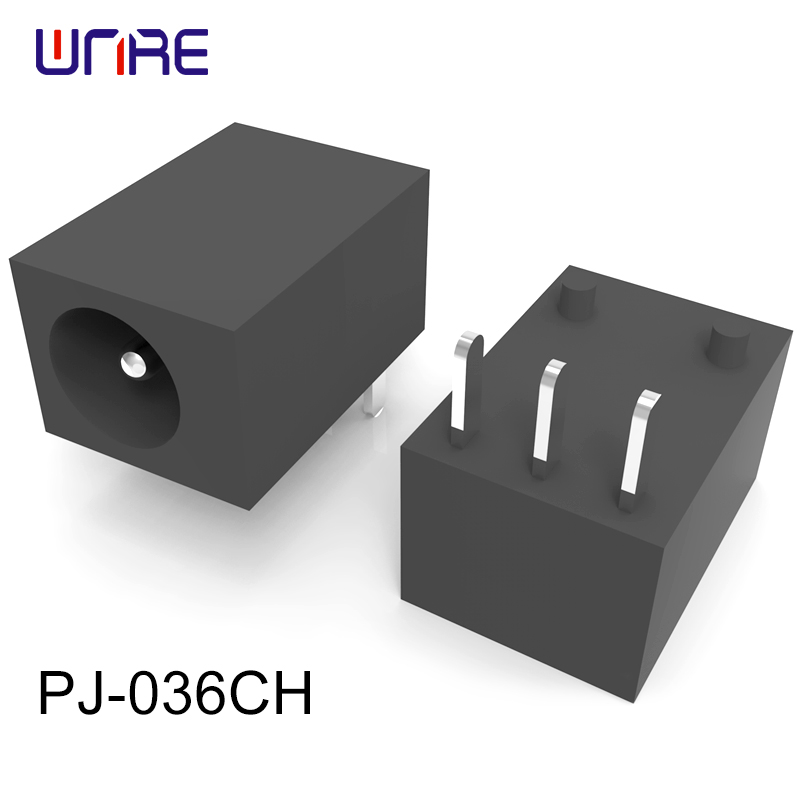

PJ-036CH DC power JACK 1.0 mm center pin 3.5 A rating low profile

Model no.PJ-036CH

DESCRIPTION: DC power JACK

FEATURES

• 1.0 mm center pin

• 3.5 A rating

• low profile

• right angle orientation

• through hole mount

rated input voltage	24V
rated input current	3.5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ 500VDC
voltage withstand at 50/60Hz for 1 minute	500V AC
insertion/withdrawal force	0.3-3kg
terminal strength	500g(any direction for 10 seconds)
operating temperature	-25-85℃
life	5000 cycles
flammability rating	UL94V-0
RoHS	Yes
