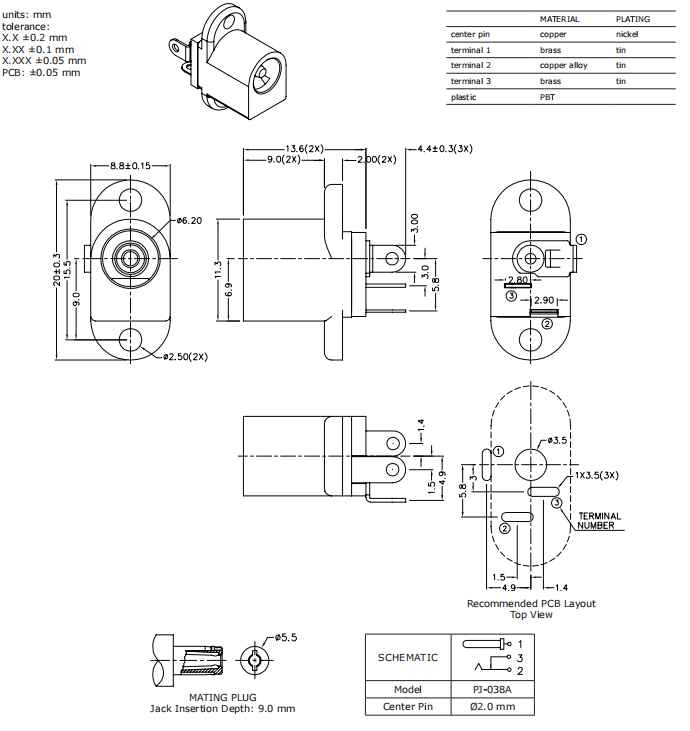

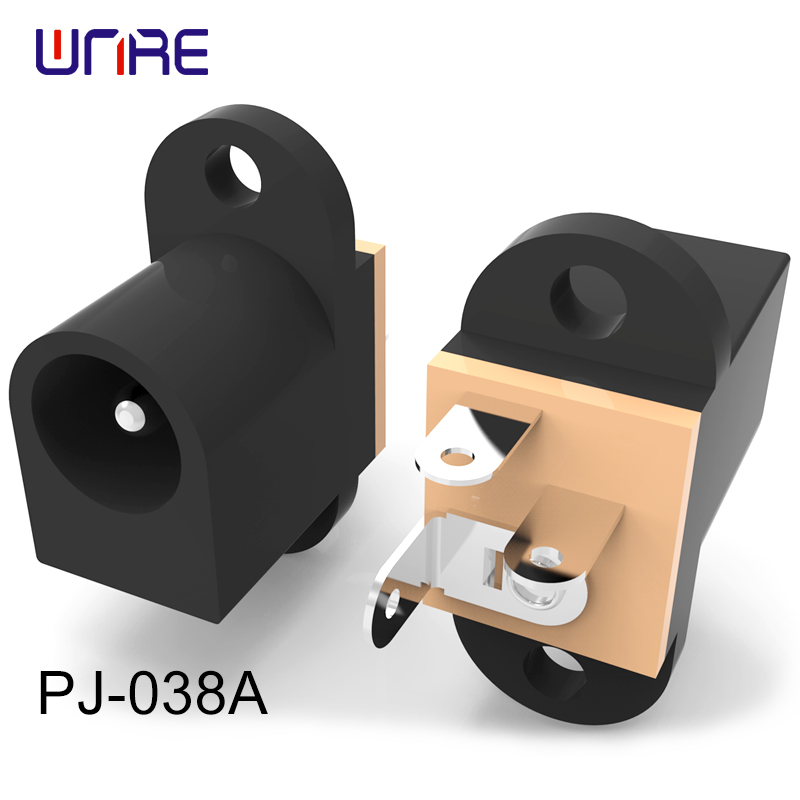

PJ-038A DC power JACK 2 mm center pin 2.5 A rating panel mount with tabs and 2.5 mm screw holes

Model no.PJ-038A

DESCRIPTION: DC power JACK

FEATURES

• 2.0 mm center pin

• 2.5 A rating

• right angle orientation

• panel mount with tabs and 2.5 mm screw holes

rated input voltage	24V
rated input current	2.5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ 500VDC
voltage withstand at 50/60Hz for 1 minute	500V AC
insertion/withdrawal force	0.3-3kg
terminal strength	any direction for 10 seconds 500g
operating temperature	-25-85℃
life	5000 cycles
flammability rating	UL94V-0
RoHS	Yes
