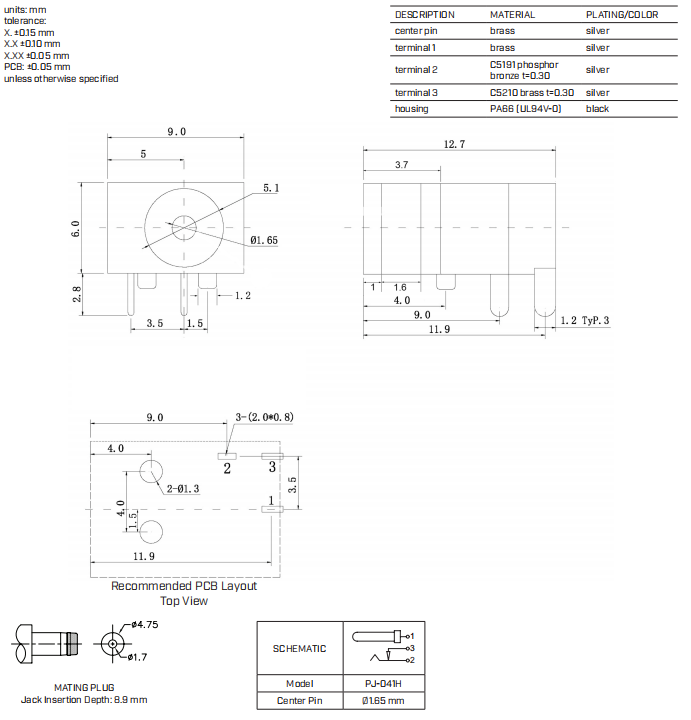

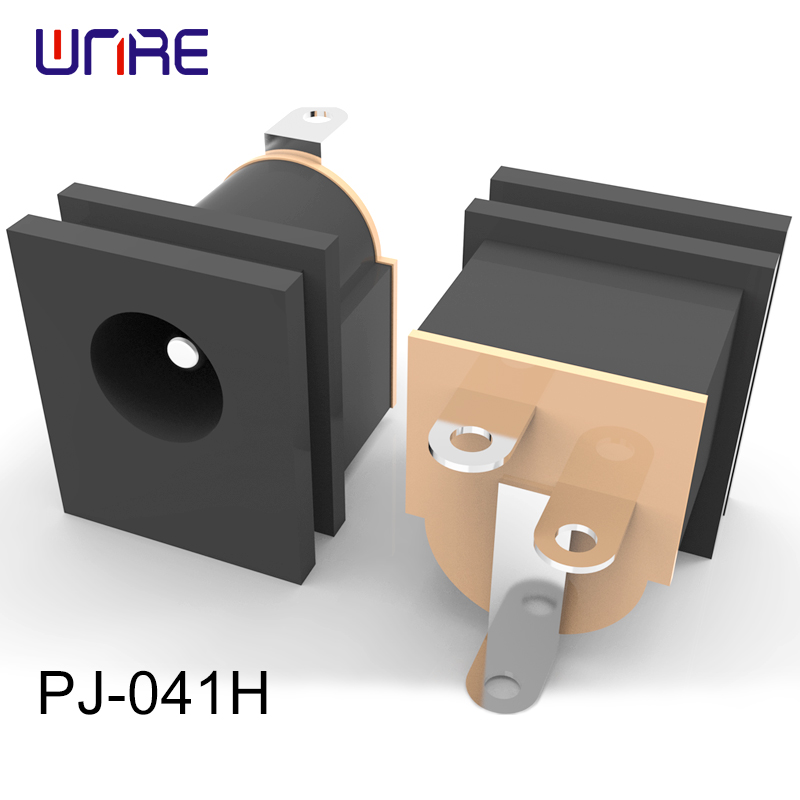

PJ-041H DC power JACK 1.65 mm center pin right angle orientation

Model no.PJ-041H

DESCRIPTION: DC power JACK

FEATURES

• 1.65 mm center pin

• high current 5 A rating

• right angle orientation

•through hole with panel slot

rated input voltage	24V
rated input current	5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	≥100MΩ 500VDC
voltage withstand for 1 minute	500V AC
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life	5000 cycles
flammability rating	UL94V-0
RoHS	Yes
