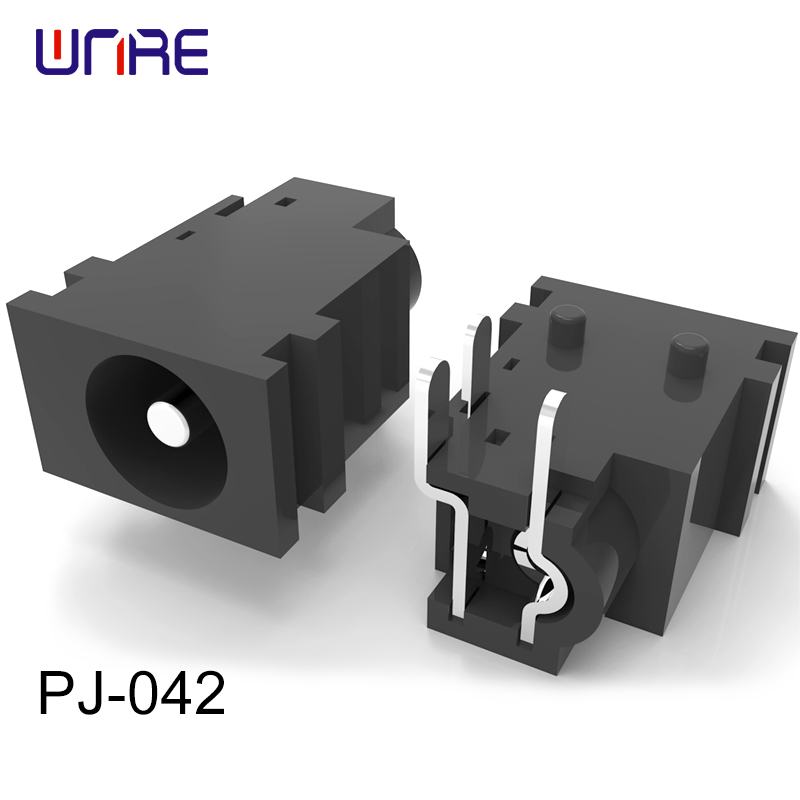

PJ-042 DC power JACK 1.65 mm center pin 2.5 A rating

PJ-042 DC power JACK 1.65 mm center pin 2.5 A rating Featured Image
  • PJ-042 DC power JACK 1.65 mm center pin 2.5 A rating

Short Description:

Model no.PJ-042

DESCRIPTION: DC power JACK

FEATURES

• 1.65 mm center pin

• 2.5 A rating

rated input voltage 24V
rated input current 2.5A
contact resistance between terminal and mating plug 50mΩ
between terminal in a closed circuit 30mΩ
insulation resistance ≥100MΩ 500VDC
voltage withstand for 1 minute 500V AC（50Hz）/min
insertion/withdrawal force 3-30N
operating temperature -25-85℃
life at a rate of 10-20 cycles/minute 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

SOLDERABILITY

parameter conditions/description min typ max units
wave soldering dipped in solder pot for 5±0.5 seconds 255 260 265 ℃
DESCRIPTION MATERIAL PLATING/COLOR
housing PA66
center pin brass tin
terminal 2 brass tin
terminal 3 C5210Brass=0.3 tin
terminal 4 C5191phosphor=0.3 tin

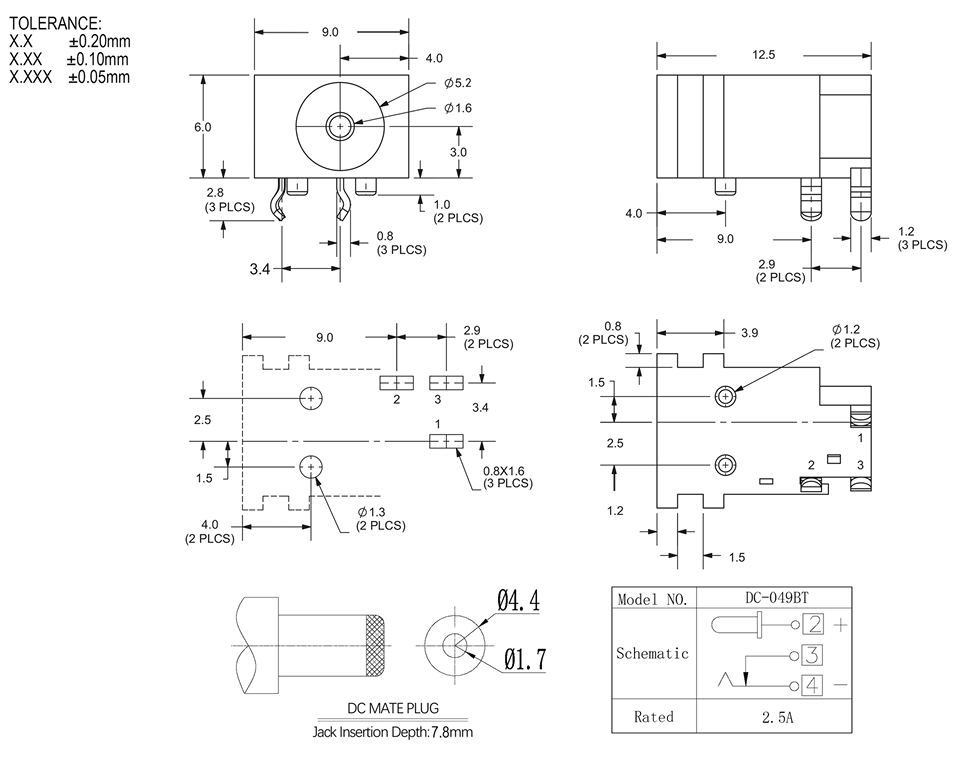

PRODUCT DRAWING

PRODUCT DRAWING
