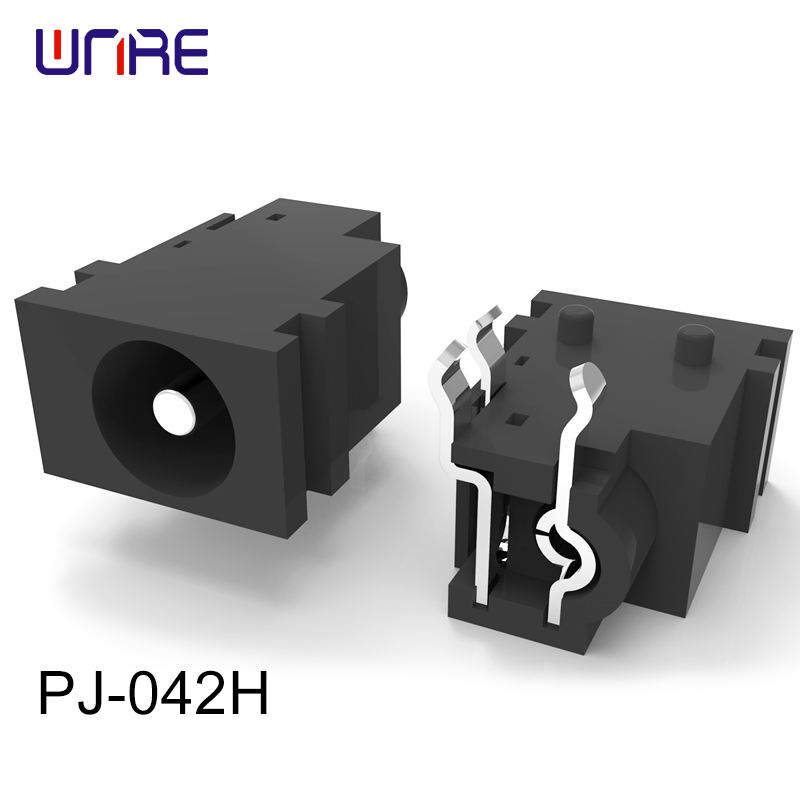

PJ-042H DC power JACK 1.65 mm center pin 5 A rating

Model no.PJ-042H

DESCRIPTION: DC power JACK

FEATURES

• 1.65 mm center pin

• 5 A rating

rated input voltage	24V
rated input current	2A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	≥100MΩ 500VDC
voltage withstand for 1 minute	500V AC（50Hz）/min
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life at a rate of 10-20 cycles/minute	5000
flammability rating	UL94V-0
RoHS	Yes

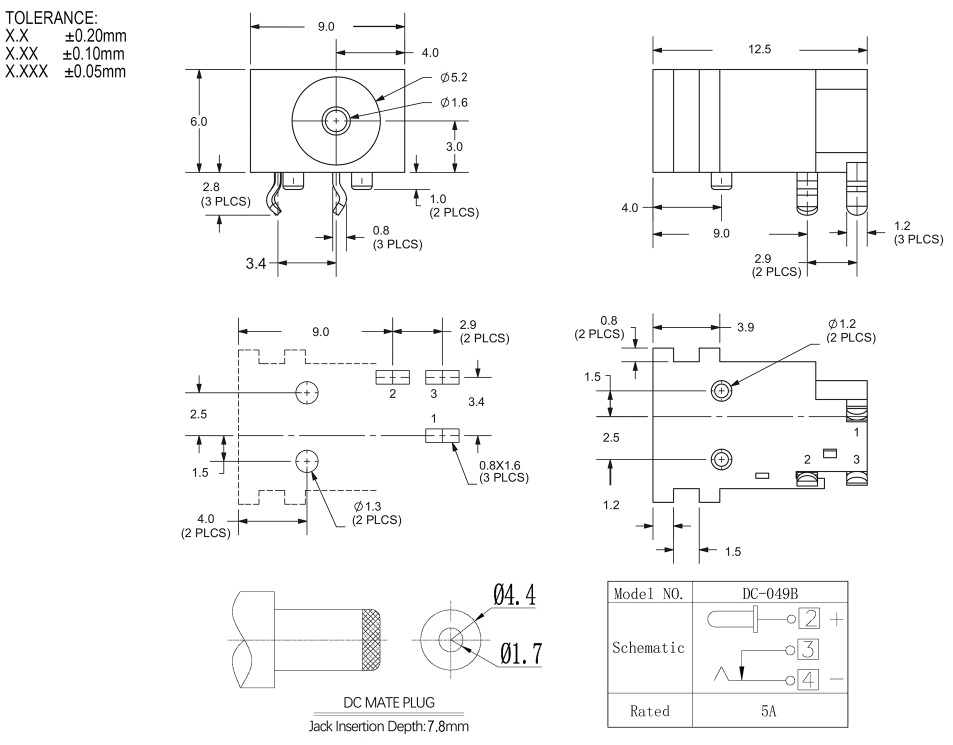

Product Detail

SOLDERABILITY

parameter	conditions/description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 second	255	260	265	℃
