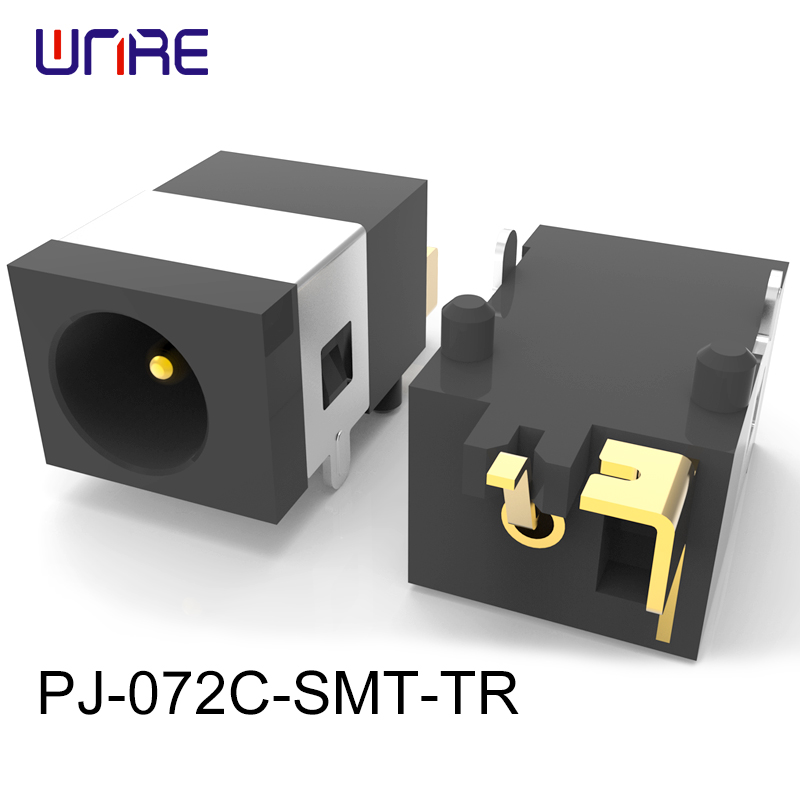

PJ-072C-SMT-TR DC power JACK 1 mm center pin 2 A rating

PJ-072C-SMT-TR DC power JACK 1 mm center pin 2 A rating Featured Image

Short Description:

Model no.PJ-072C-SMT-TR

DESCRIPTION: DC power JACK

FEATURES

• 1 mm center pin

• 2 A rating

rated input voltage	24V
rated input current	2A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	≥100MΩ 500VDC
voltage withstand for 1 minute	500V AC（50Hz）/min
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

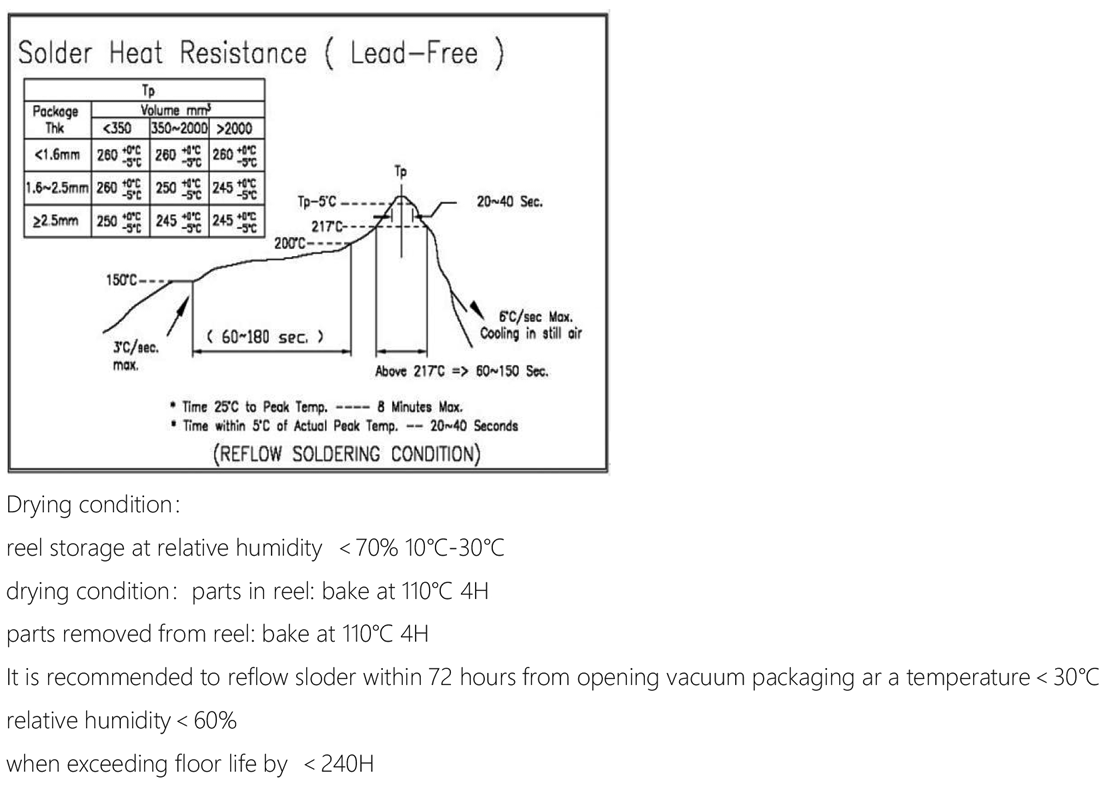

SOLDERABILITY

DESCRIPTION	MATERIAL	PLATING/COLOR
shell	brass	nickel
terminal 1	copper alloy	contact area:gold remaining area:tin
terminal 2		gold
Housing	PA10T

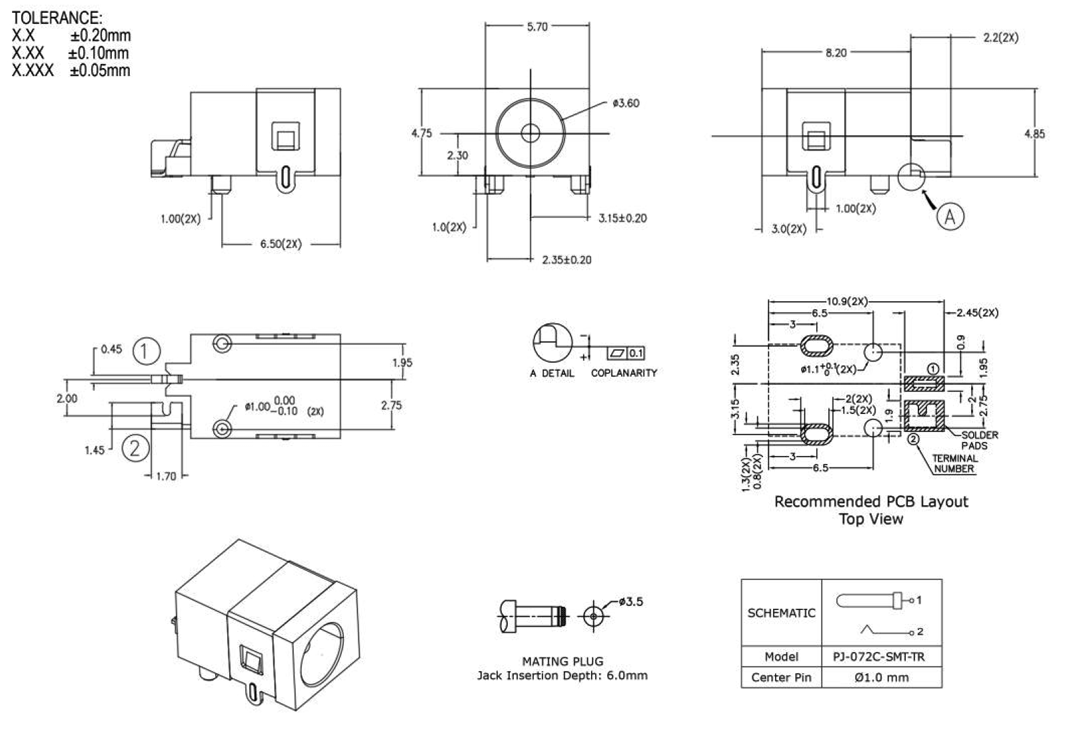

PRODUCT DRAWING

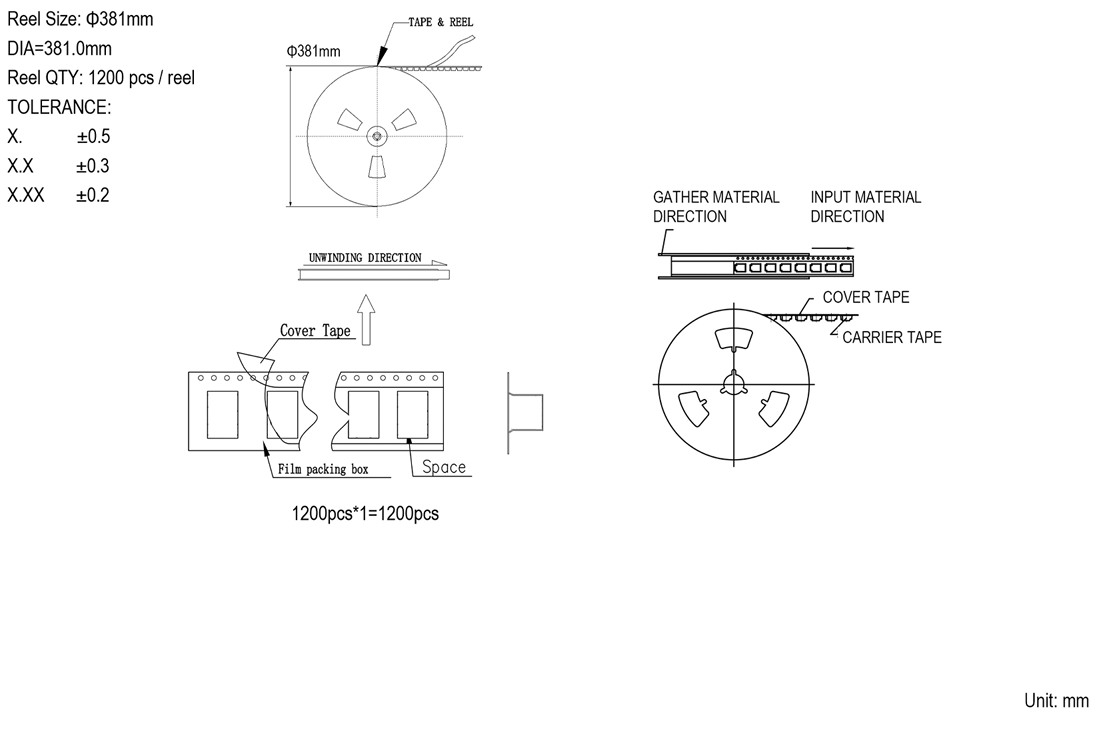

PACKAGE DRAWING
