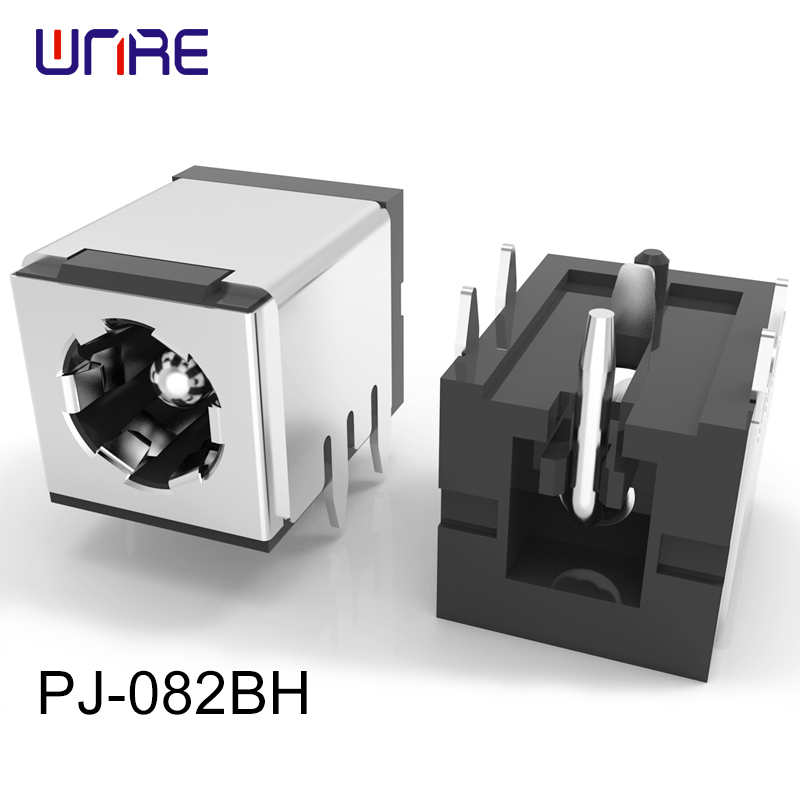

PJ-082BH DC power JACK 10 A rating Shielded No internal switch
SOLDERABILITY
| Parameter | Conditions/Description | min | typ | max | units |
| Reel storage | 10-30,<70%humidity | ℃ | |||

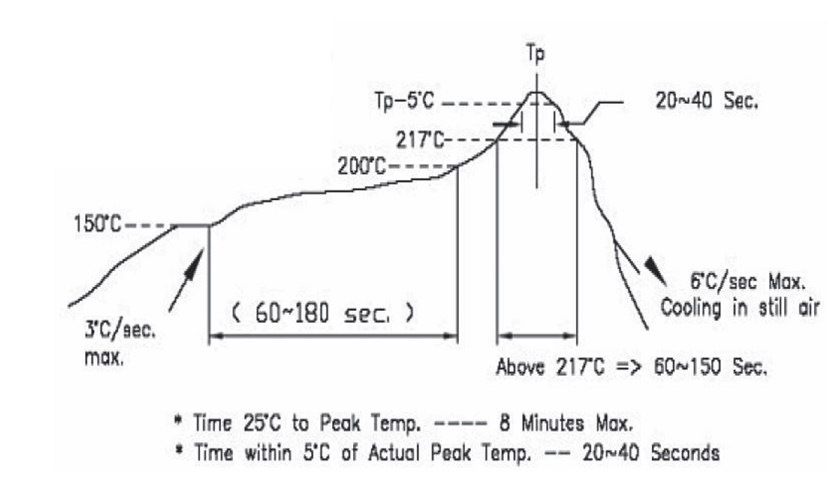

| Reflow soldering1 | See reflow profile | 255 | 260 | ℃ | |
| Drying conditions2 | Parts in real:bake at 110℃ for 4 hoursParts removed from reel:bake at 110℃ for 4 hours |
Note:
- CUI Devices recommends to solder within 72 hours from opening vacuum packaging at a temperature <60%.
- When exceeding floor life by >240 hours
tolerance:
X≤4.0: ±0.2 mm
4.0<X≤16: ±0.3 mm
PCB: ±0.05 mm units: mm
| DESCRIPTION | MATERIAL | PLATING/COLOR |
| terminal 1 | brass | silver |
| terminal 2 | copper t=0.30 | silver |
| stopper | SUS 301 t=0.30 | |
| shield A | SPCC t=0.40 | nickel |
| shield B | SUS 301 t=0.15 | |
| Housing | PA9T(UL94V-0) | black |

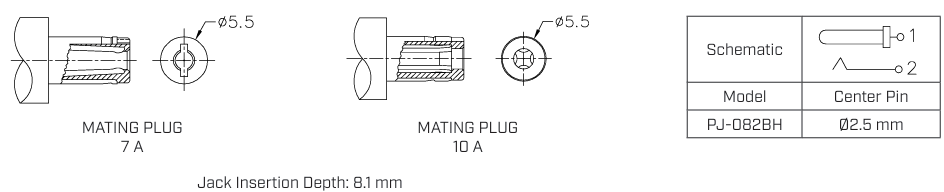

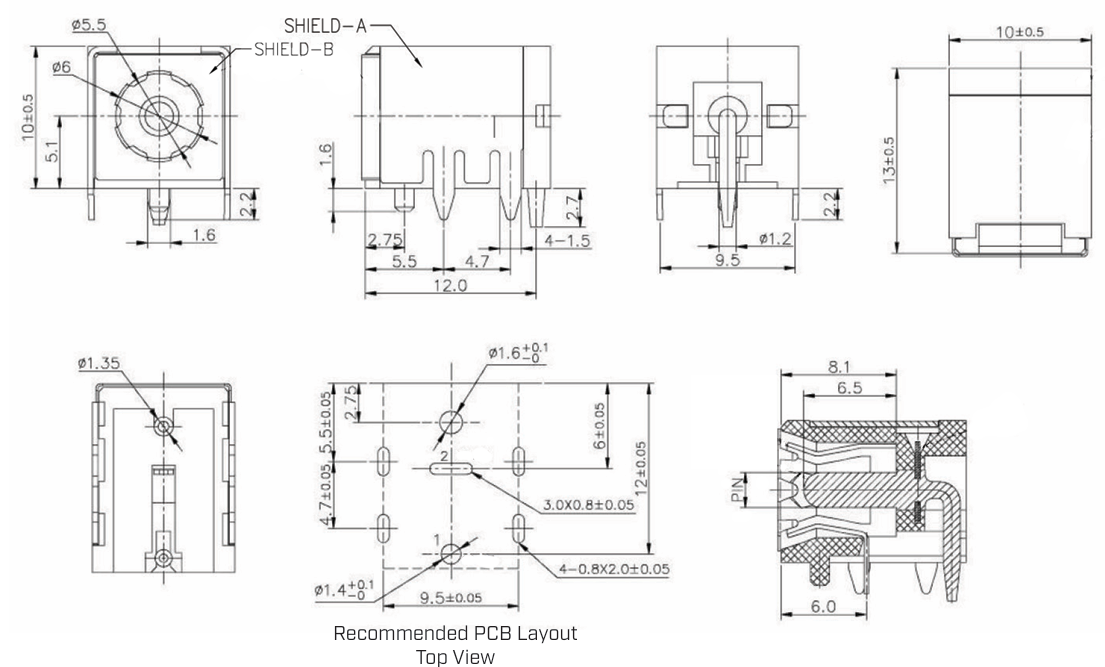

PRODUCT DRAWING

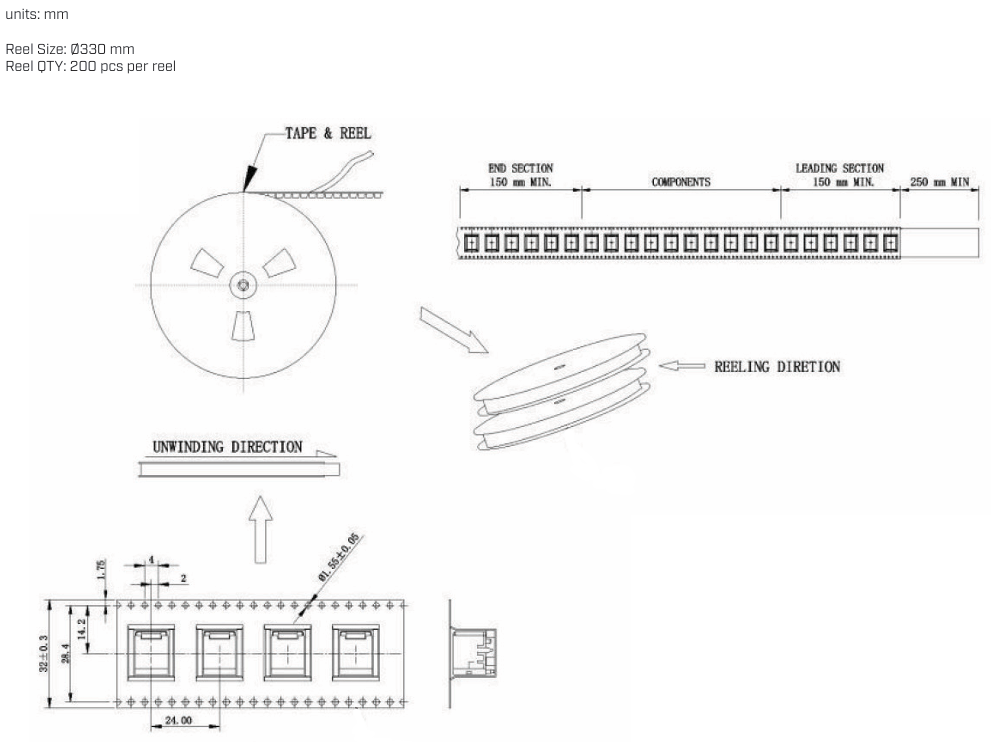

PACKAGE DRAWING
