PJ-086H DC power JACK 1.65mm center pin 5 A rating

Model no.PJ-086H

DESCRIPTION: DC power JACK

FEATURES

• 1.65 mm center pin

• 5 A rating

rated input voltage	24V
rated input current	5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Product Detail

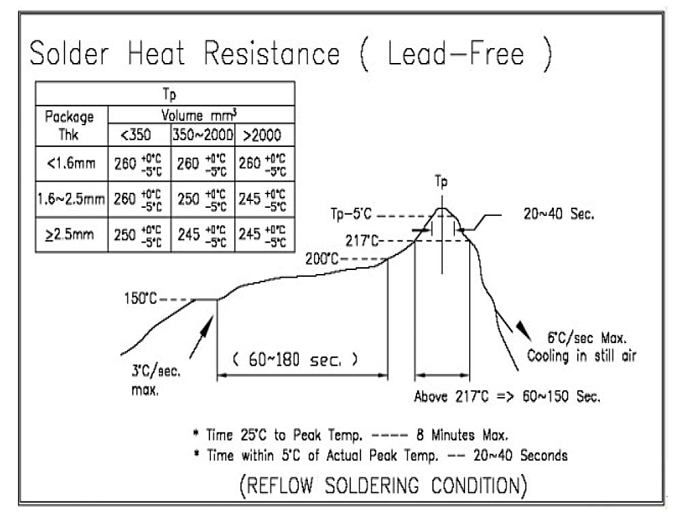

SOLDERABILITY

Drying condition：

reel storage at relative humidity ＜70% 10℃-30℃

drying condition：parts in reel: bake at 110℃ 4H

parts removed from reel: bake at 110℃ 4H

It is recommended to reflow solder within 72 hours from opening vacuum packaging ar a temperature＜30℃ relative humidity＜60%

when exceeding floor life by ＜240H
