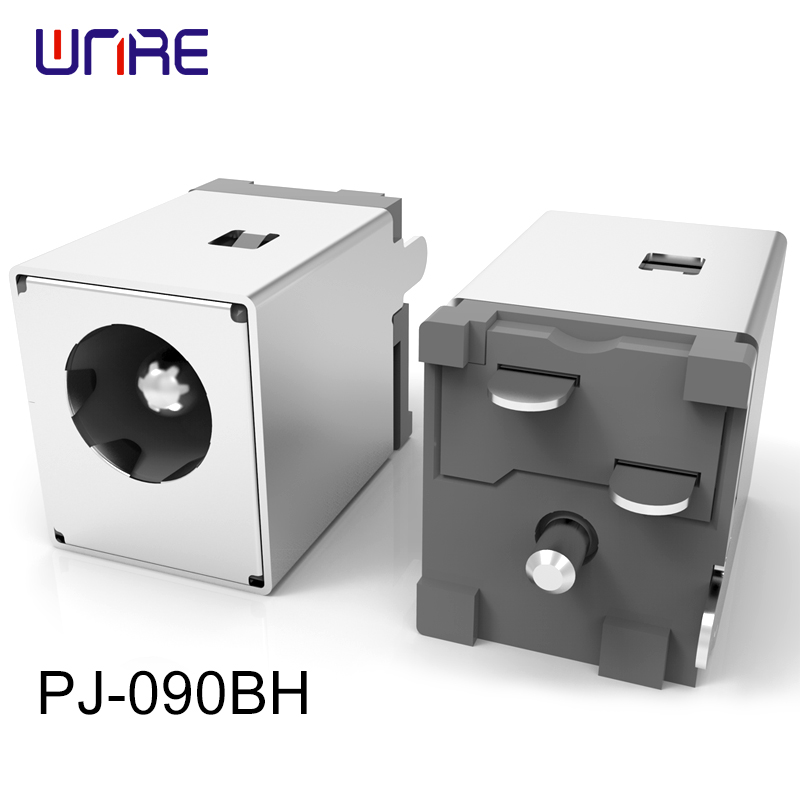

PJ-090BH DC power JACK 2.5 mm center pin 5 A rating through hole

PJ-090BH DC power JACK 2.5 mm center pin 5 A rating through hole Featured Image

Short Description:

Model no.PJ-090BH

DESCRIPTION: DC power JACK

FEATURES

• 2.5 mm center pin

• 5 A rating

• Shielded

• through hole

• vertical orientation

• 1 switch

rated input voltage	24V DC
rated input current	5A
contact resistance	between terminal and mating plug 20mΩ
contact resistance	between terminal in a closed circuit 20mΩ
insulation resistance	100MΩ/min at 500 Vdc between adjacent contacts
voltage withstand for 1 minute, 0.5 mA between adjacent contacts	500V AC
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life at a rate of 24 cycles/minute	5000 cycles
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

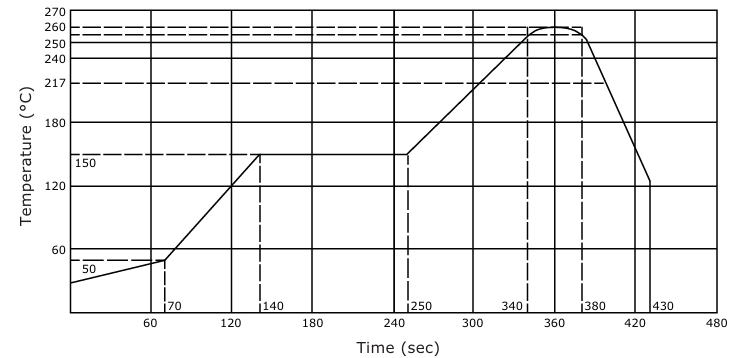

SOLDERABILITY

Parameter	Conditions/Description	min	typ	max	units
Reel storage	at relative humidity <80%			40	℃
Reflow soldering¹	See reflow profile	255	260	265	℃
Drying conditions²	Parts in real:bake at 40°C ±5°C for 72 hours Parts removed from reel:bake at 40°C ±5°C for 10 hours

Note:

It is recommended to reflow solder within 72 hours from opening vacuum packaging at a temperature <60%.
When exceeding floor life by >72 hours.

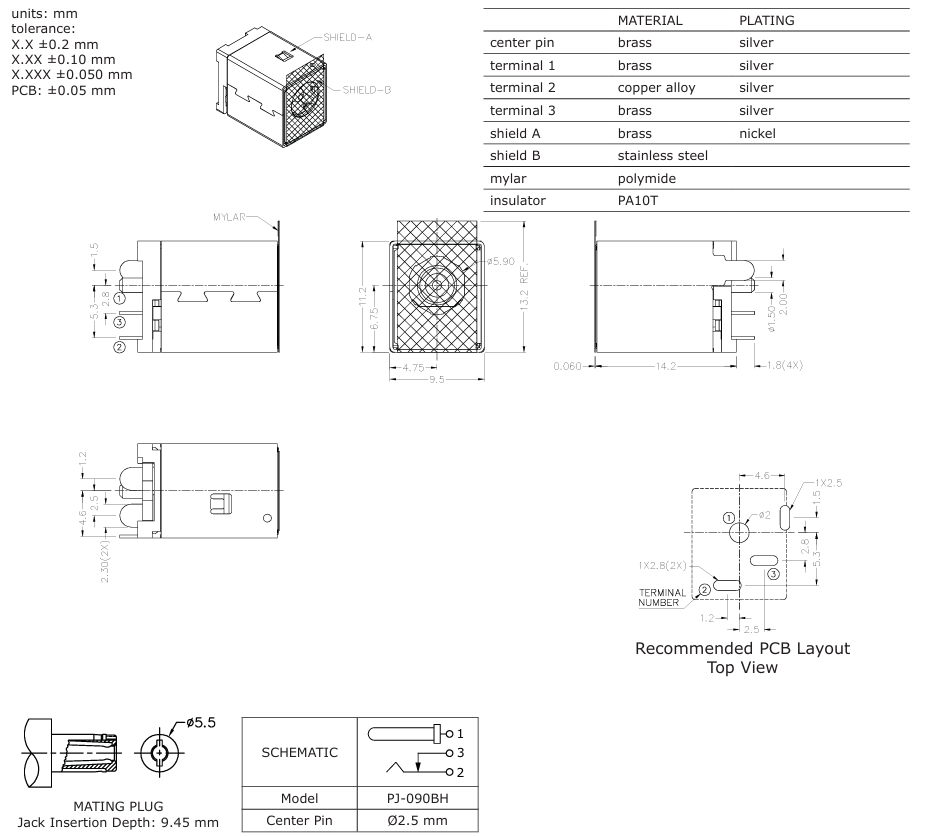

PRODUCT DRAWING

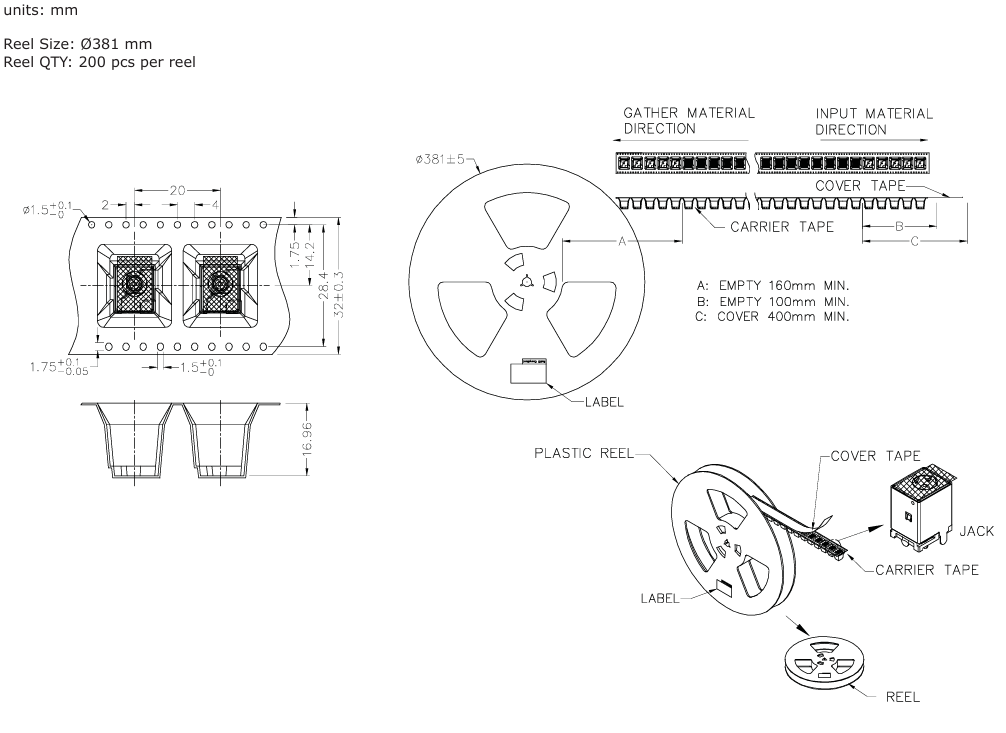

PACKAGE DRAWING
