PJ-091H-MSMT-TR DC power JACK

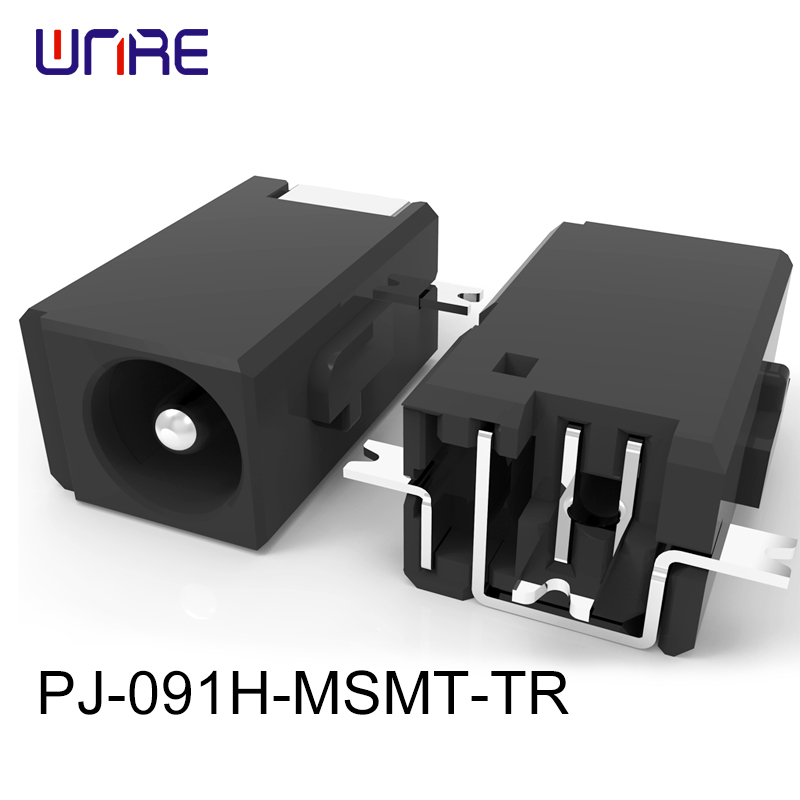

PJ-091H-MSMT-TR DC power JACK Featured Image

Short Description:

Model no.PJ-091H-MSMT-TR

DESCRIPTION: DC power JACK

rated input voltage	24V
rated input current	5A
contact resistance	between terminal and mating plug 50mΩ
	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

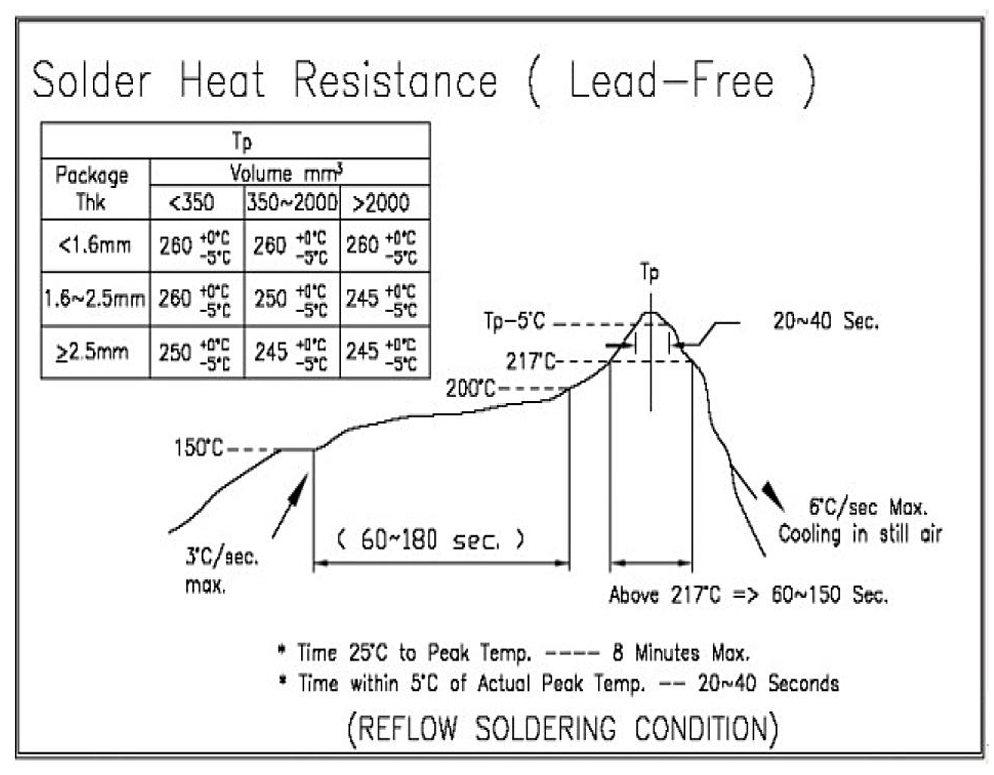

SOLDERABILITY

Drying condition：

reel storage at relative humidity ＜70% 10℃-30℃

drying condition：parts in reel: bake at 110℃ 4H

parts removed from reel: bake at 110℃ 4H

It is recommended to reflow solder within 72 hours from opening vacuum packaging ar a temperature＜30℃

relative humidity＜60%

when exceeding floor life by ＜240H

DESCRIPTION	MATERIAL	PLATING/COLOR
center pin	brass	silver
terminal 1	brass	silver
terminal 2	copper alloy	silver
terminal 3	brass	silver
Housing	PA10T

PRODUCT DRAWING

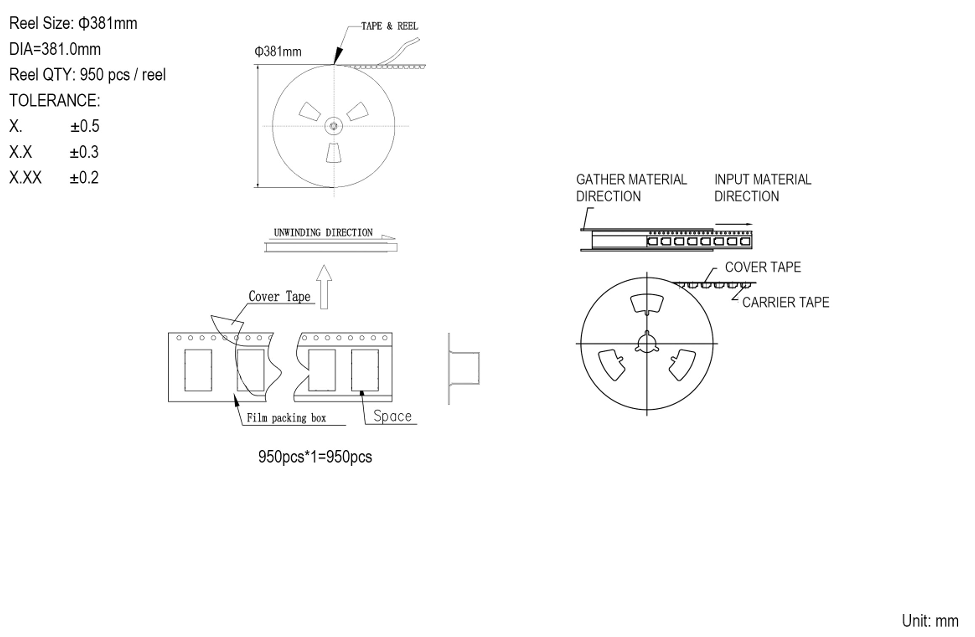

PACKAGE DRAWING
