SJ-038-3100-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash

SJ-038-3100-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash Featured Image
  • SJ-038-3100-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash

Short Description:

Model no.SJ-038-3100-C1

DESCRIPTION:AUDIO JACK

rated input voltage 12V
rated input current 1A
contact resistance between terminal and mating plug

50mΩ
between terminal in a closed circuit30mΩ
insulation resistance 100MΩ
voltage withstand for 1 minute 500V
insertion/withdrawal force 3-30N
operating temperature -25-85℃
life 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

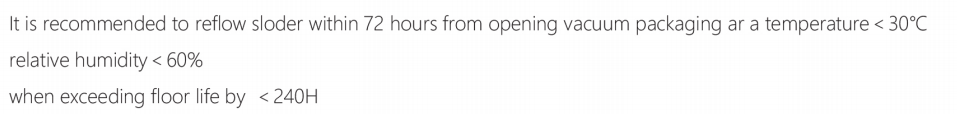

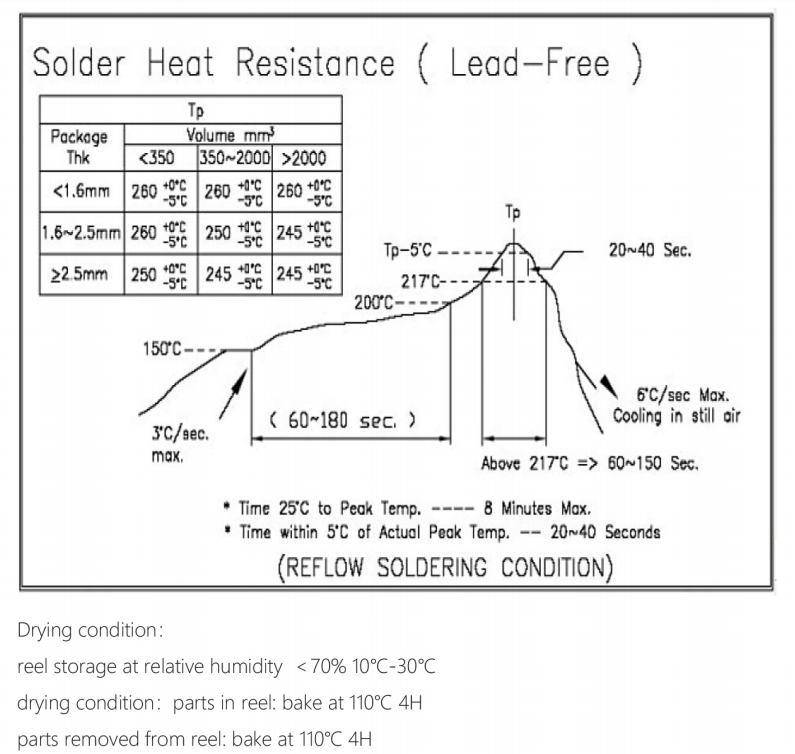

SOLDERABILITY

SOLDERABILITY

SOLDERABILITY.1

DESCRIPTION MATERIAL PLATING/COLOR
terminal 1 copper alloy gold flash
terminal 2 copper alloy gold flash
terminal 3 copper alloy gold flash
terminal 4 copper alloy gold flash
terminal 5 copper alloy gold flash
plastic PA10T black

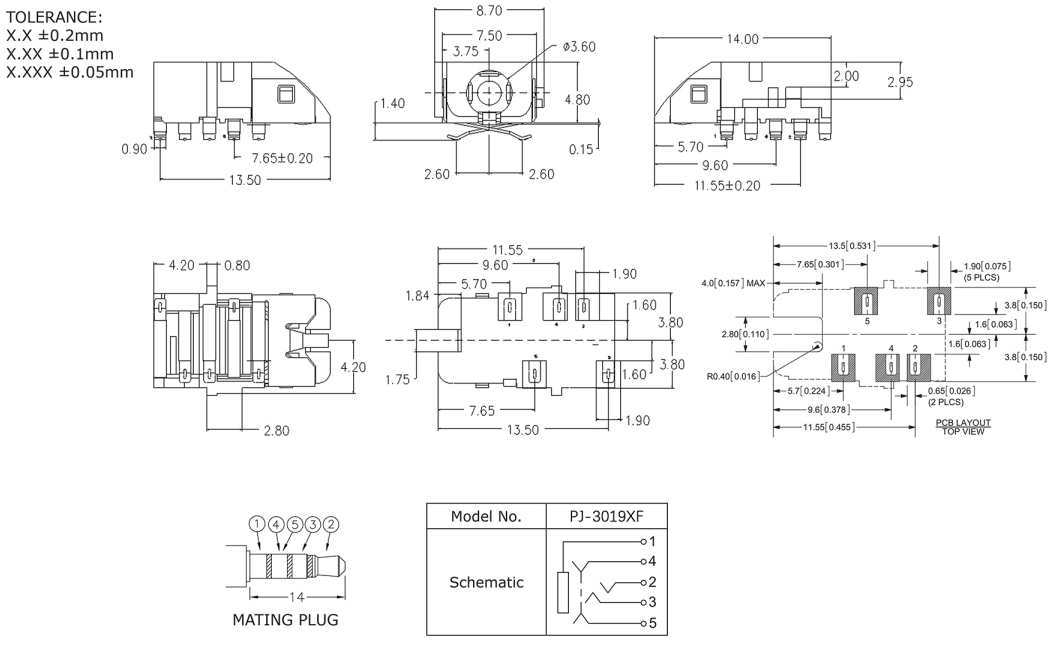

PRODUCT DRAWING

PRODUCT DRAWING
