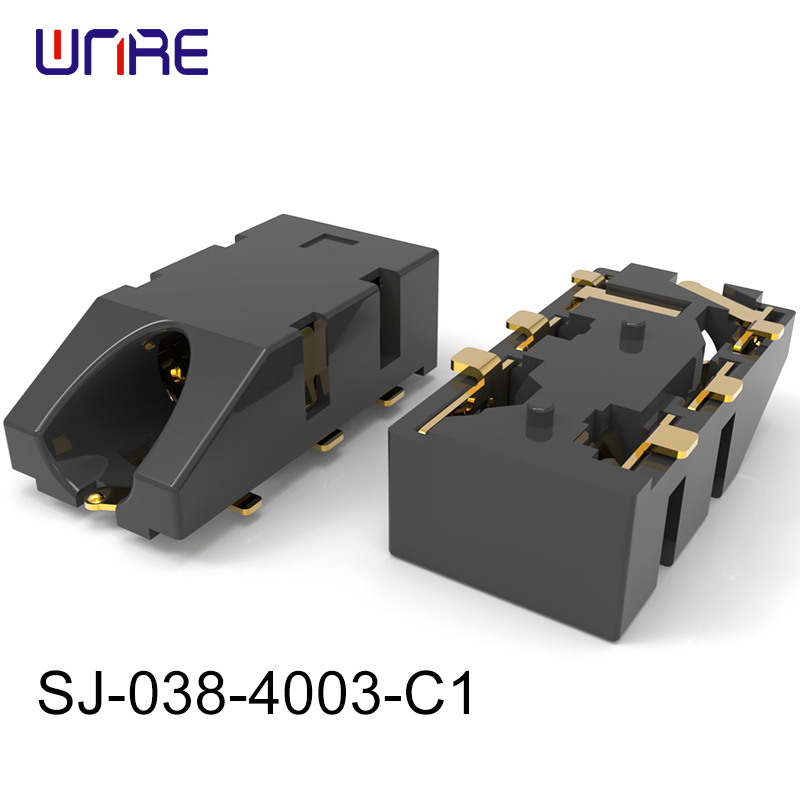

SJ-038-4003-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash

SJ-038-4003-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash Featured Image
  • SJ-038-4003-C1 AUDIO JACK 12V 1A UL94V-0 Copper Alloy Gold flash

Short Description:

Model no.SJ-038-4003-C1

DESCRIPTION:AUDIO JACK

rated input voltage 12V
rated input current 1A
contact resistance between terminal and mating plug

50mΩ
between terminal in a closed circuit 30mΩ
insulation resistance 100MΩ
voltage withstand for 1 minute 500V
insertion/withdrawal force 3-30N
operating temperature -25-85℃
life 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

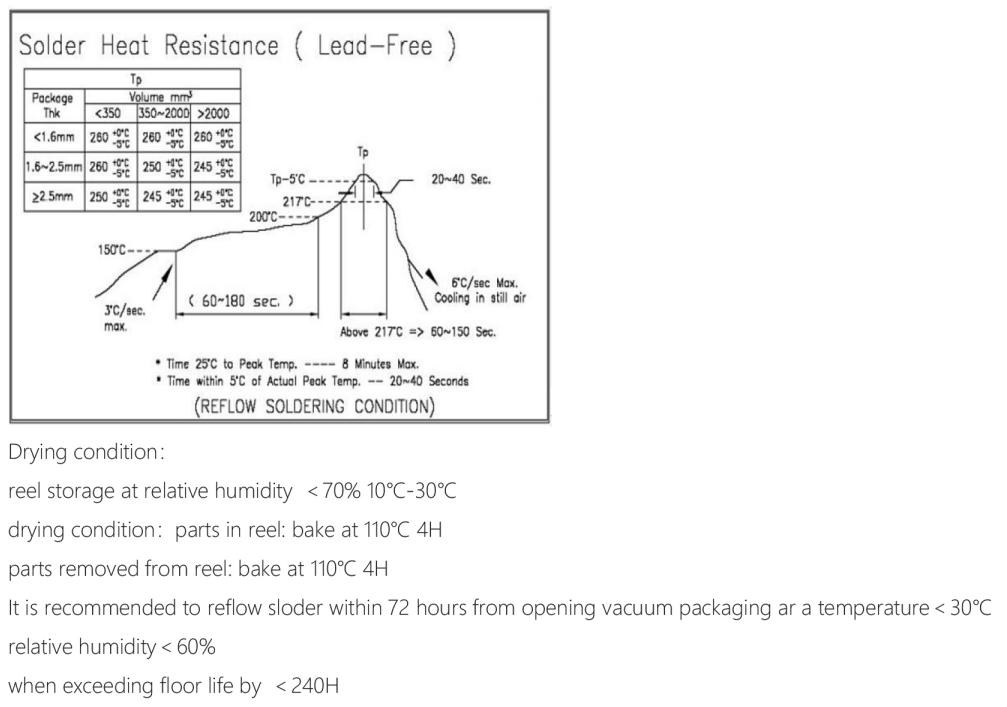

SOLDERABILITY

SOLDERABILITY

DESCRIPTION MATERIAL
terminal 1 copper alloy
terminal 2 copper alloy
terminal 3 copper alloy
terminal 4 copper alloy
terminal 5 copper alloy
terminal 6 copper alloy
housing high temp.plastic

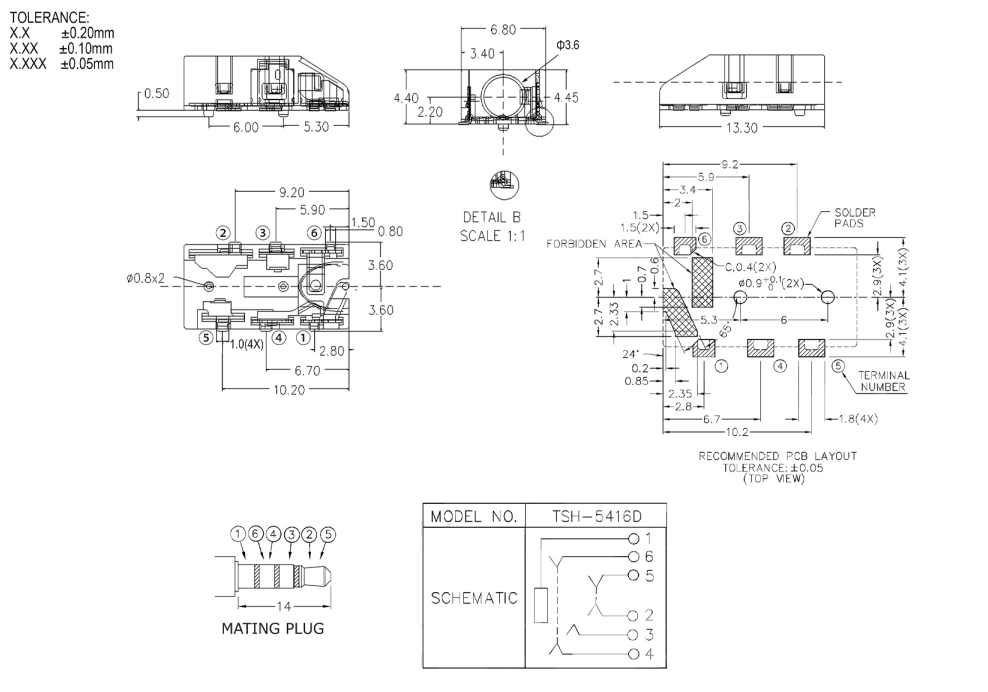

PRODUCT DRAWING

PRODUCT DRAWING
