SJ-2504A-SMT-TR AUDIO JACK 12V 1A PPA BLK Phosphorus Bronze

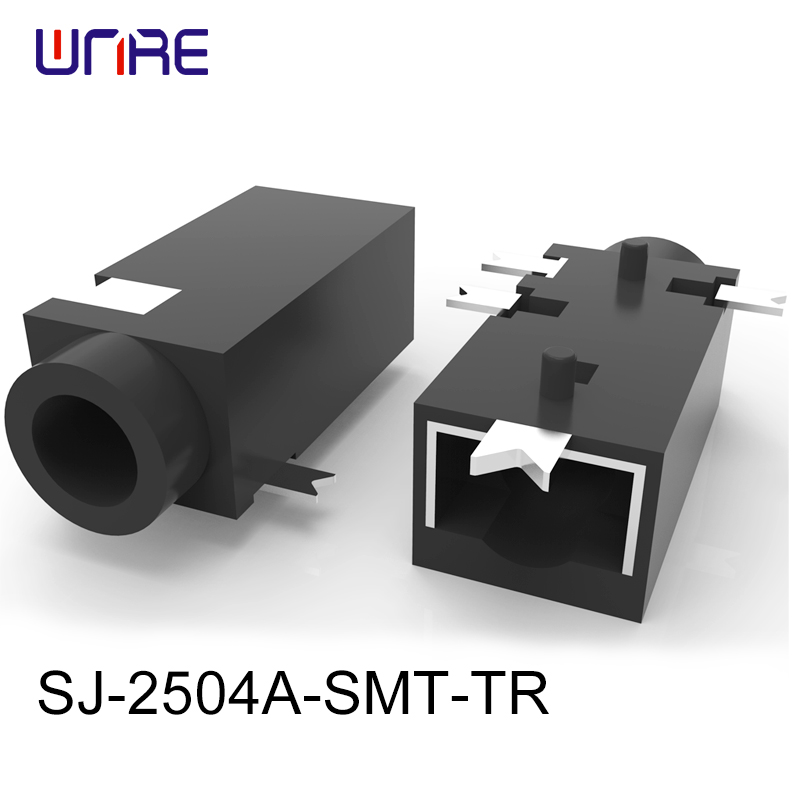

SJ-2504A-SMT-TR AUDIO JACK 12V 1A PPA BLK Phosphorus Bronze Featured Image
  • SJ-2504A-SMT-TR AUDIO JACK 12V 1A PPA BLK Phosphorus Bronze

Short Description:

Model no.SJ-2504A-SMT-TR

DESCRIPTION:AUDIO JACK

rated input voltage 12V
rated input current 1A
contact resistance between terminal and mating plug

50mΩ
between terminal in a closed circuit 30mΩ
insulation resistance 100MΩ
voltage withstand for 1 minute 500V
insertion/withdrawal force 3-30N
operating temperature -25-85℃
life 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

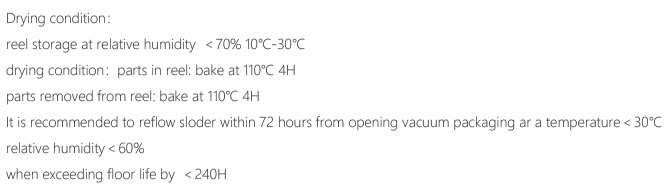

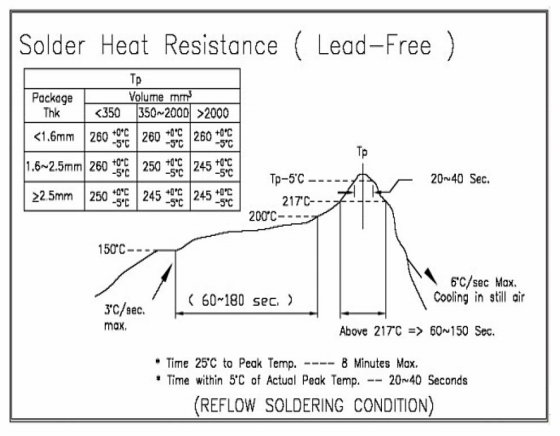

SOLDERABILITY

SOLDERABILITY

SOLDERABILITY.1

DESCRIPTION MATERIAL PLATING
housing PPA BLK
terminal 1 phosphorus bronze sliver plating
terminal 2 phosphorus bronze sliver plating
terminal 3 phosphorus bronze sliver plating
terminal 4 phosphorus bronze sliver plating

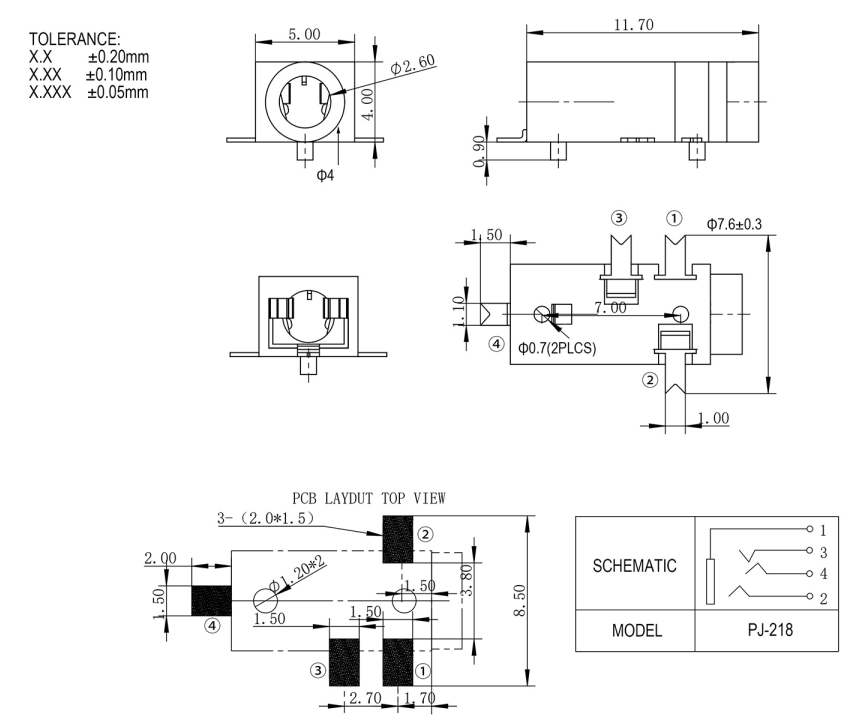

PRODUCT DRAWING

PRODUCT DRAWING

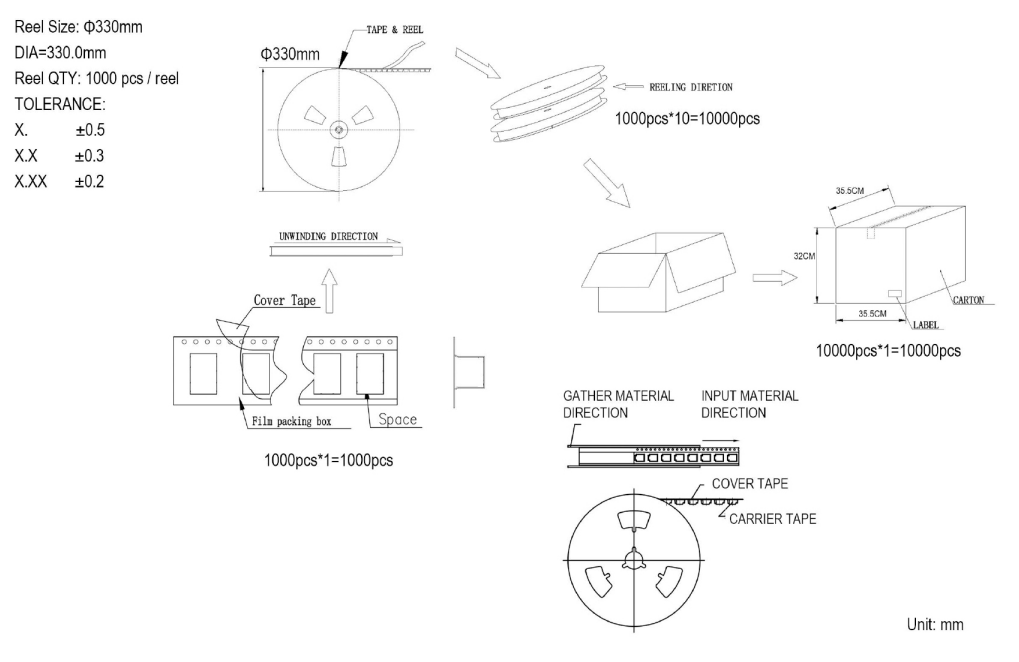

PACKAGE DRAWING

PACKAGE DRAWING
