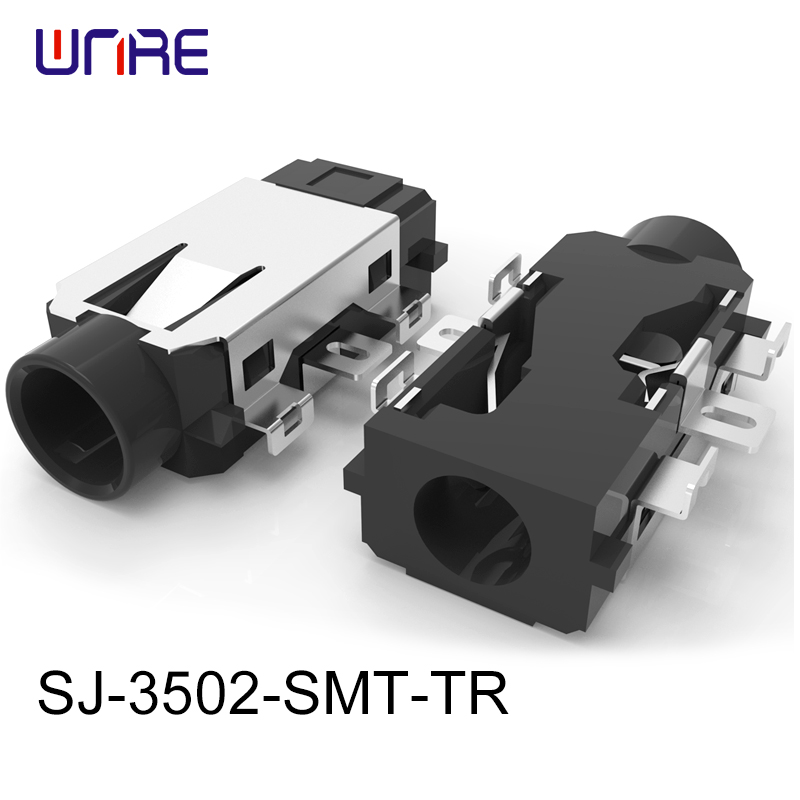

SJ-3502-SMT-TR MID MOUNT AUDIO JACK Mid mount for low profile applications

Short Description:

Model no.SJ-3502-SMT-TR

DESCRIPTION:MID MOUNT AUDIO JACK

FEATURES

• Mid mount for low profile applications

• Shielded

• No internal switches

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

SOLDERABILITY

Parameter	Conditions/Description	min	typ	max	units
Reel storage	at relative humidity<80%			40	℃

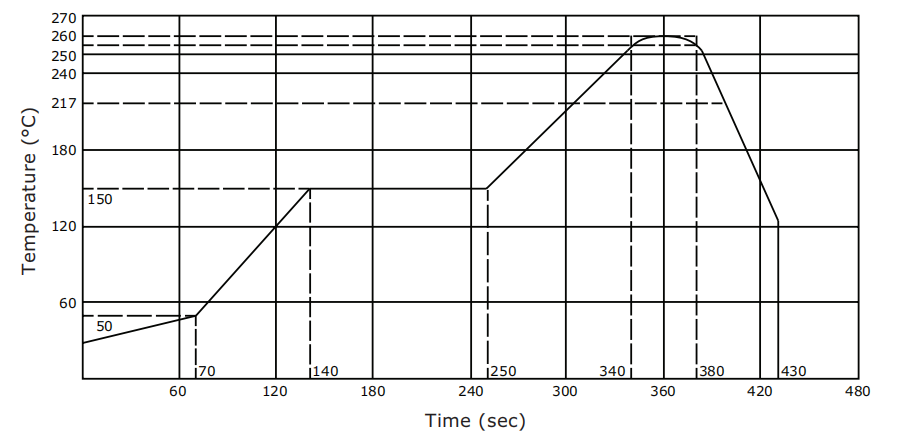

Reflow soldering¹	See reflow profile	255	260	265	℃
Drying conditions²	Parts in real:bake at 40℃±5℃ for 72 hours Parts removed from reel:bake at 40℃±5℃ for 10 hours

Note:

1. It is recommended to reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.

2. When exceeding floor life by >72 hours.

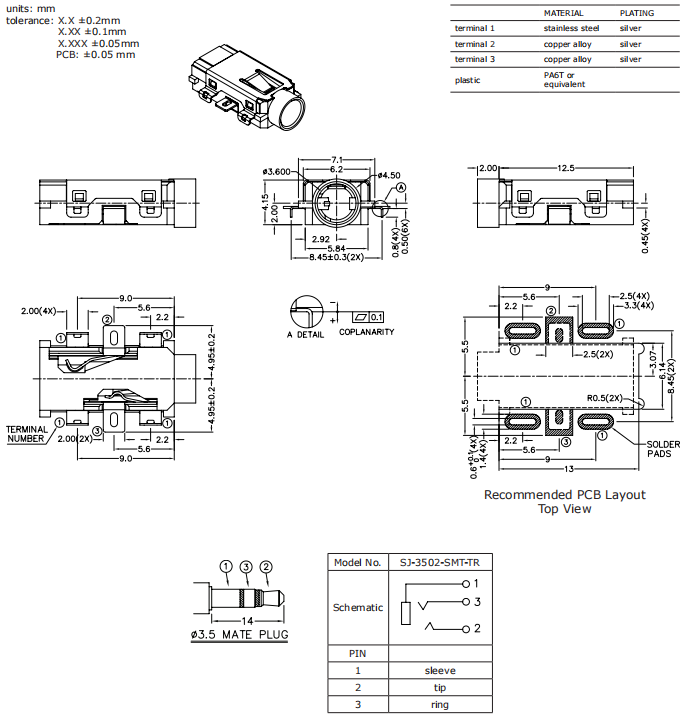

PRODUCT DRAWING

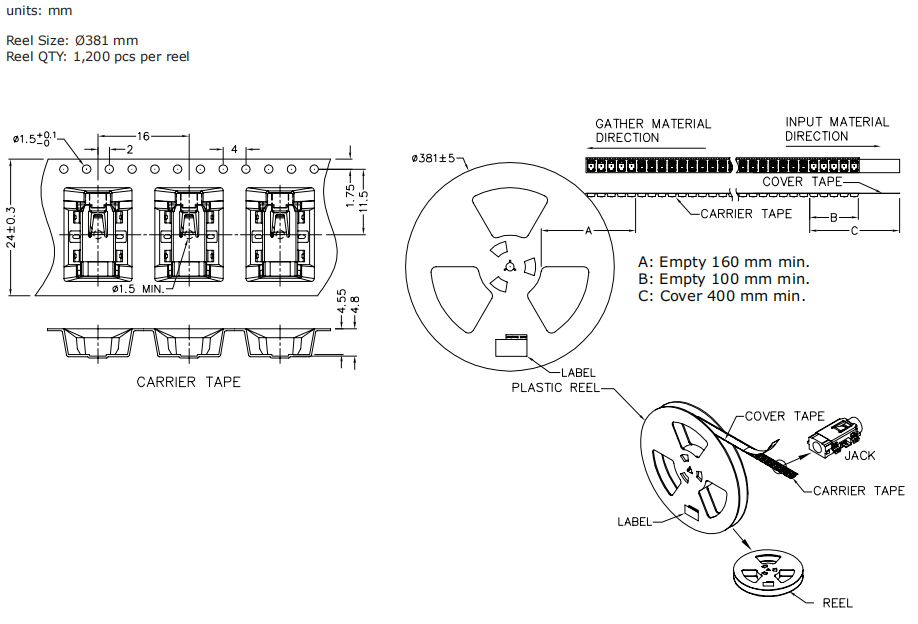

PACKAGE DRAWING

Previous: MJ-3536N AUDIO JACK threaded bushing internal tip switch

Next: SJ-3503-SMT-TR Shield Copper Alloy Gold Flash
