SJ-3503-SMT-TR Shield Copper Alloy Gold Flash

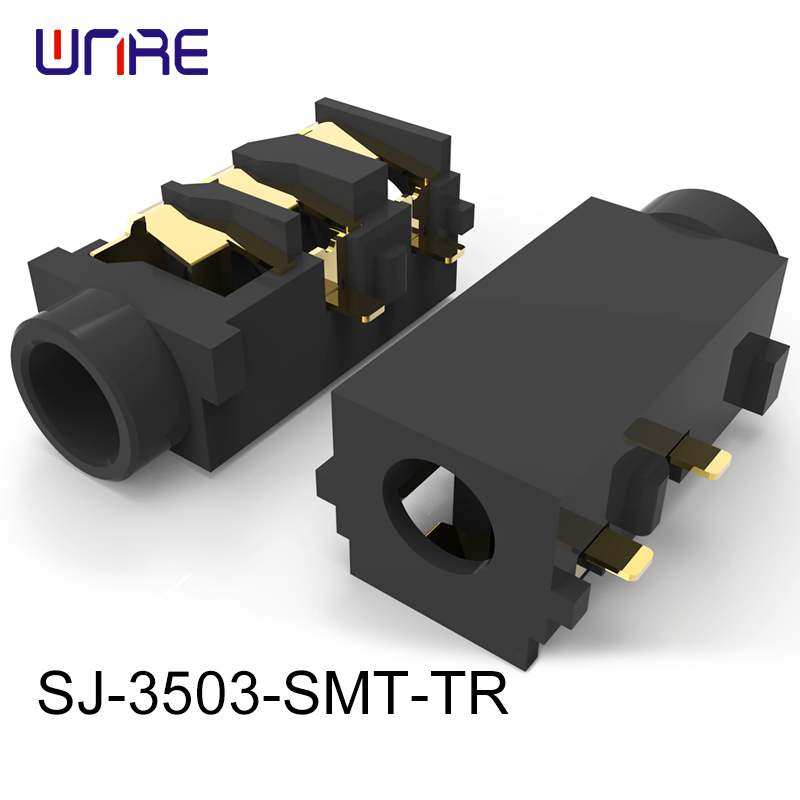

SJ-3503-SMT-TR Shield Copper Alloy Gold Flash Featured Image

Short Description:

Model no.SJ-3503-SMT-TR

DESCRIPTION:Shield

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	AC 500V(50Hz)/min
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

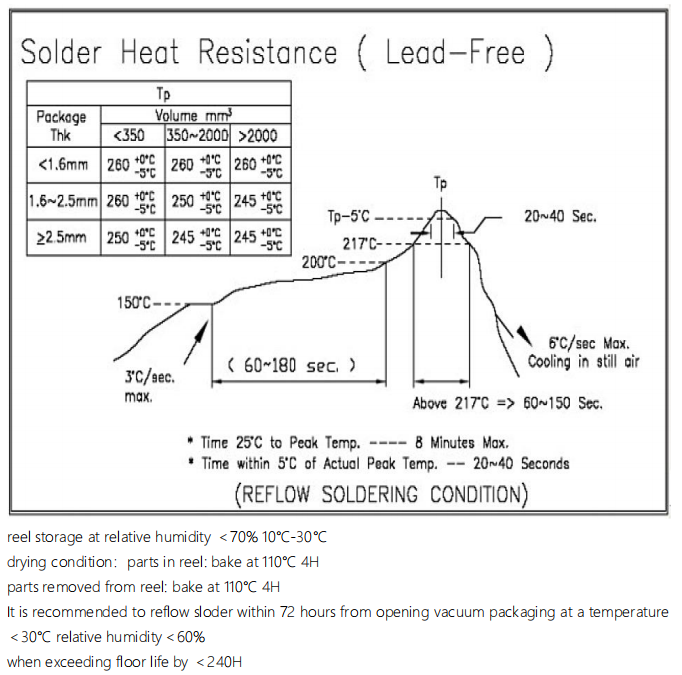

SOLDERABILITY

DESCRIPTION	MATERIAL	PLATING/COLOR
terminal 1	copper alloy	gold flash
terminal 2	copper alloy	gold flash
terminal 3	copper alloy	gold flash
terminal 4	copper alloy	gold flash
terminal 5	copper alloy	gold flash
shield stainless steel
Housing	PA6T

PRODUCT DRAWING

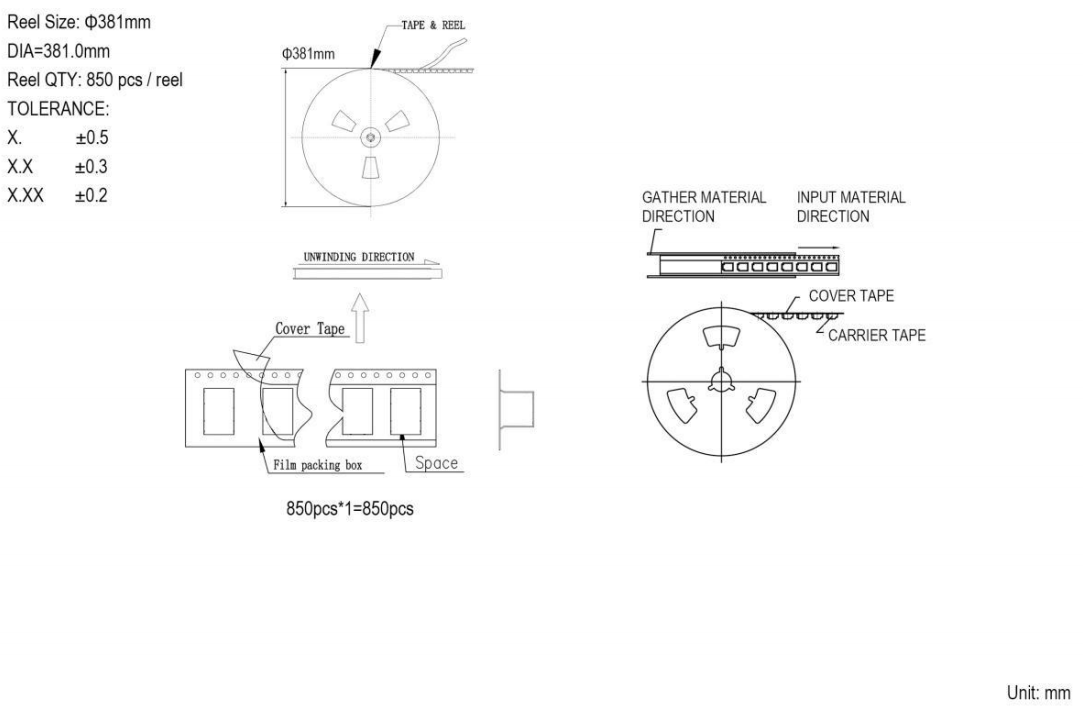

PACKAGE DRAWING
