SJ-435107 AUDIO JACK 12V 1A UL94V-0 copper alloy tin nickel

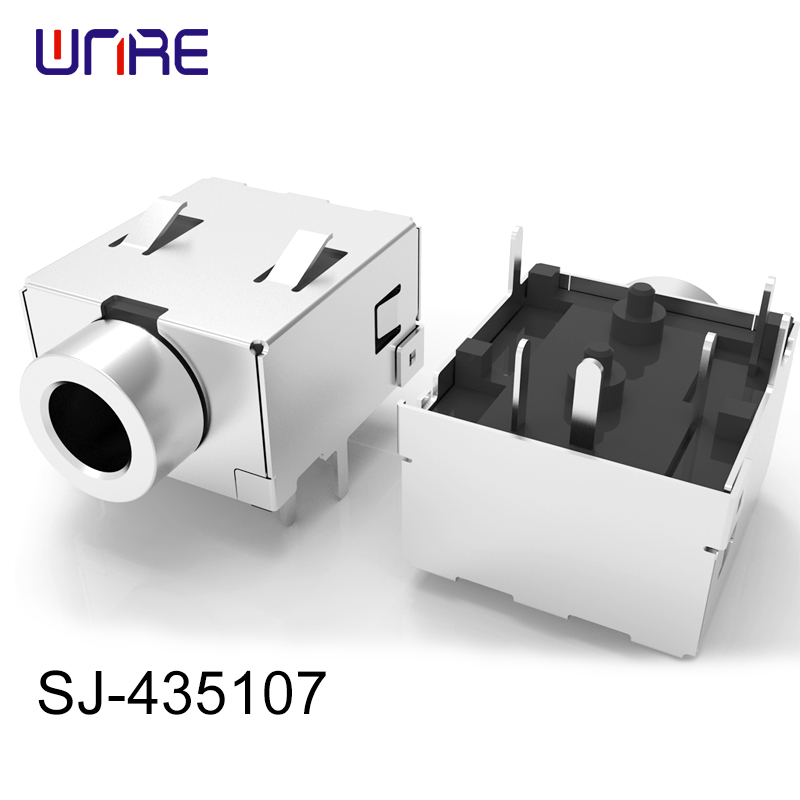

SJ-435107 AUDIO JACK 12V 1A UL94V-0 copper alloy tin nickel Featured Image

Short Description:

Model no.SJ-435107

DESCRIPTION:AUDIO JACK

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

SOLDERABILITY

Parameter	Conditions/Description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 seconds at	255	260	265	℃

DESCRIPTION	MATERIAL	PLATING/COLOR
terminal 1	copper alloy	tin
terminal 2	copper alloy	tin
terminal 3	copper alloy	tin
terminal 4	copper alloy	tin
terminal 5	copper alloy	tin
terminal 6	copper alloy	tin
shield	copper alloy	nickel
bushing	brass	nickel
Housing	PA66

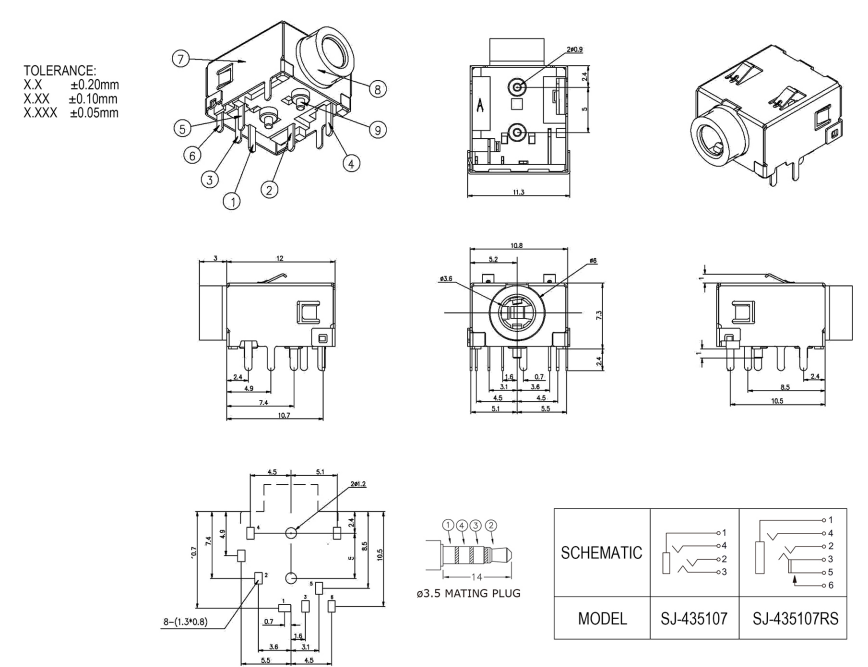

PRODUCT DRAWING
