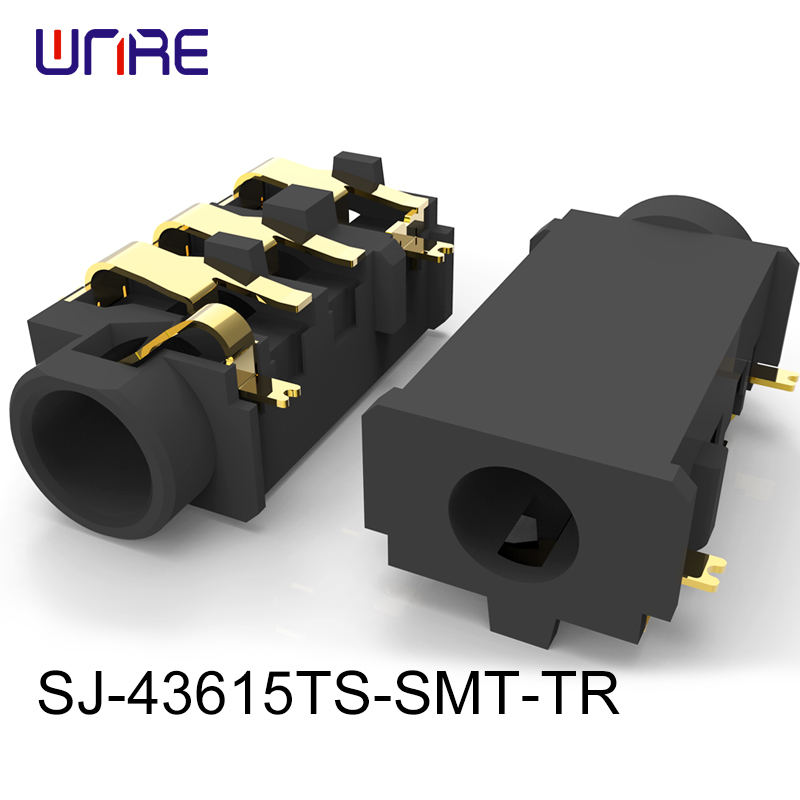

SJ-43615TS-SMT-TR AUDIO JACK 24V 5A copper alloy plating gold

SJ-43615TS-SMT-TR AUDIO JACK 24V 5A copper alloy plating gold Featured Image

Short Description:

Model no.SJ-43615TS-SMT-TR

DESCRIPTION:AUDIO JACK

rated input voltage	24V
rated input current	5A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

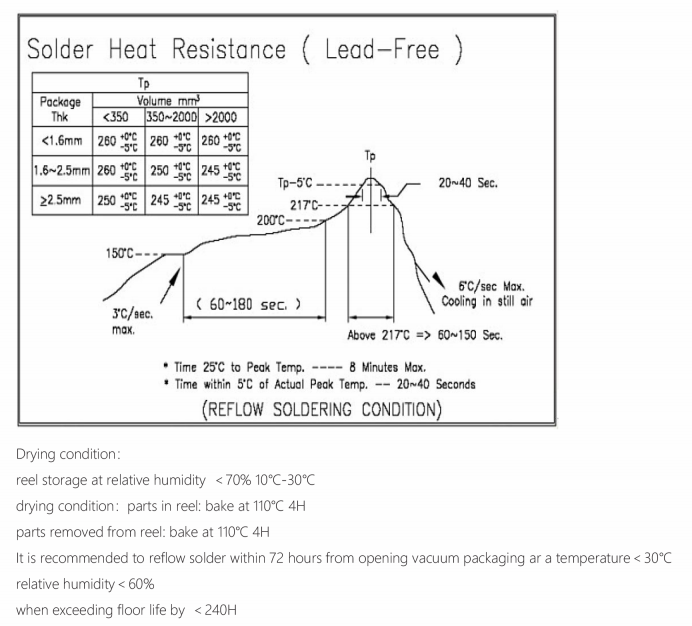

SOLDERABILITY

DESCRIPTION	MATERIAL	PLATING/COLOR
terminal (1-4)	copper alloy	gold
terminal (10-12)	copper alloy	gold
Housing	PAA

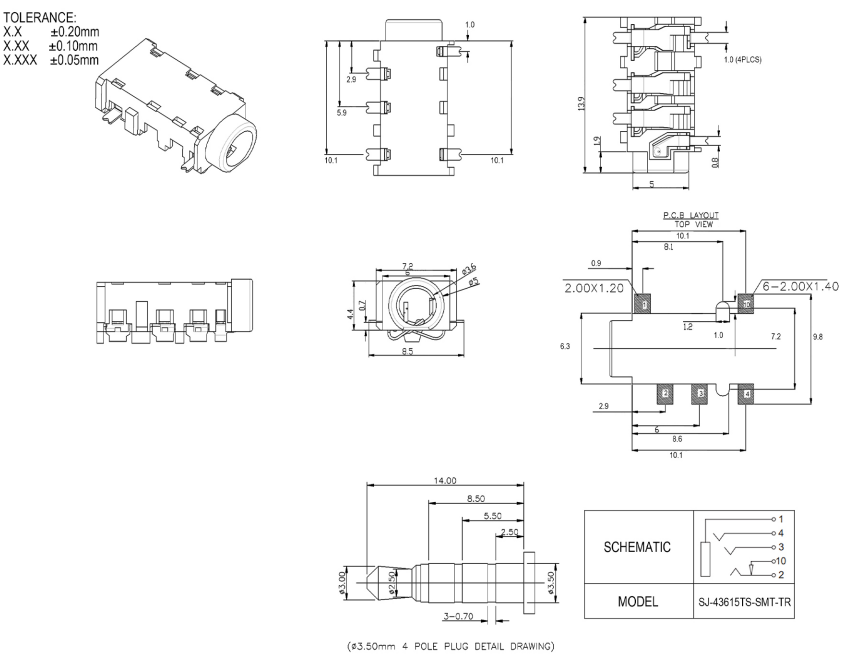

PRODUCT DRAWING

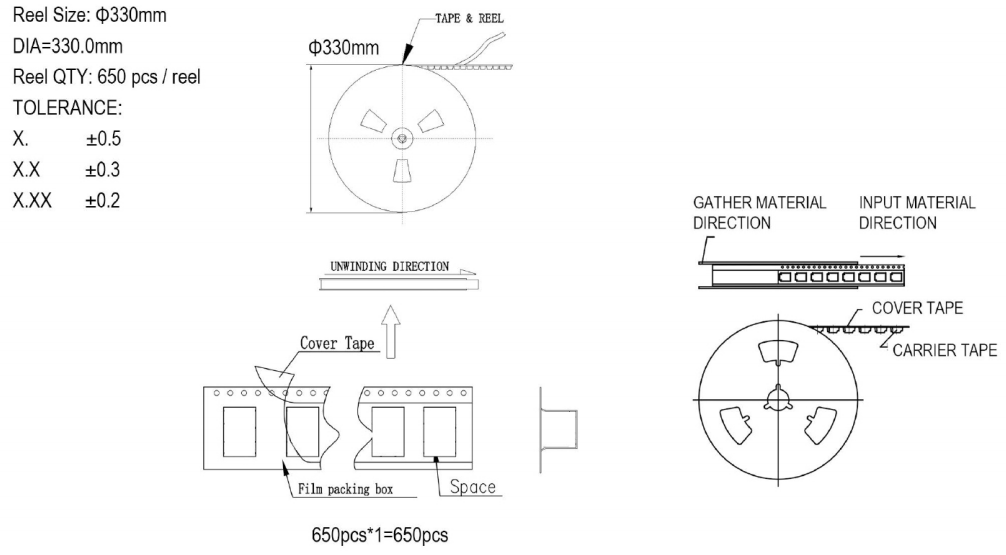

PACKAGE DRAWING
