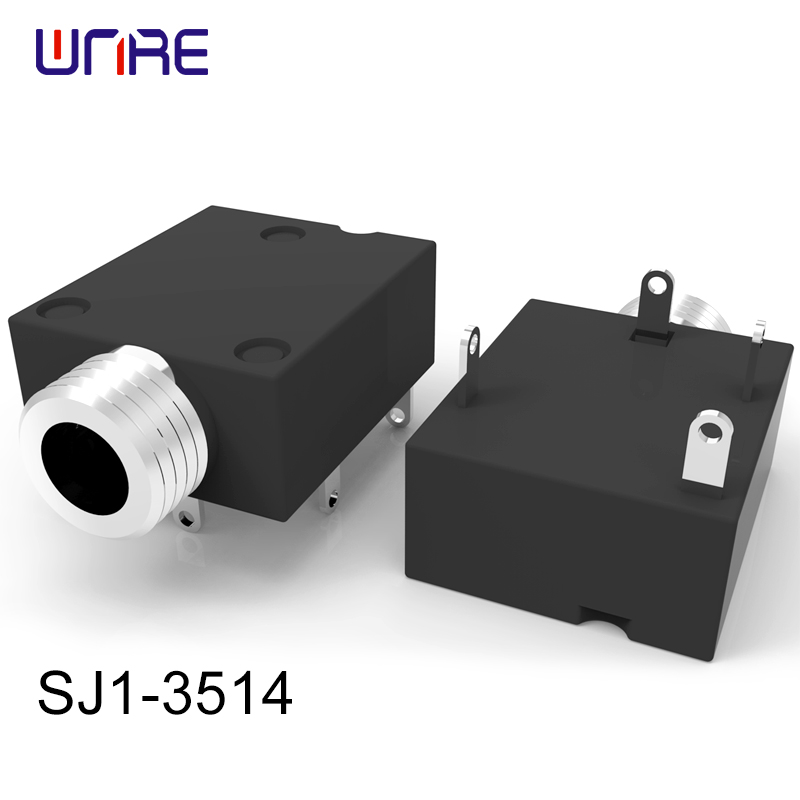

SJ1-3514 AUDIO JACK 12V 1A life 5000 RoHS

SJ1-3514 AUDIO JACK 12V 1A life 5000 RoHS Featured Image

Short Description:

Model no.SJ1-3514

DESCRIPTION:AUDIO JACK

rated input voltage	12 V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life at a rate of 10-20 cycles/minute	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

SOLDERABILITY

Parameter	Conditions/Description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 seconds at	255	260	265	℃

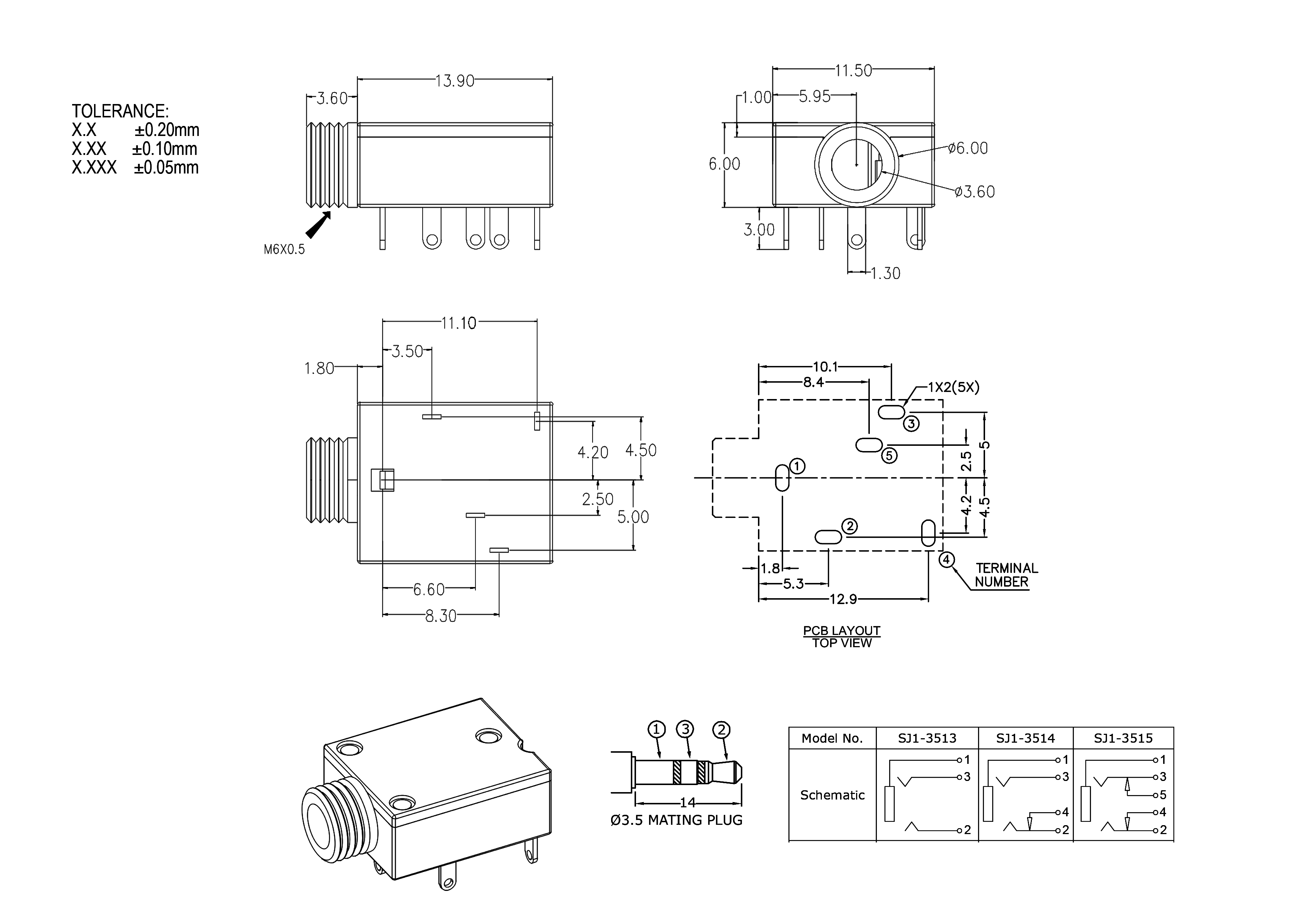

PRODUCT DRAWING
