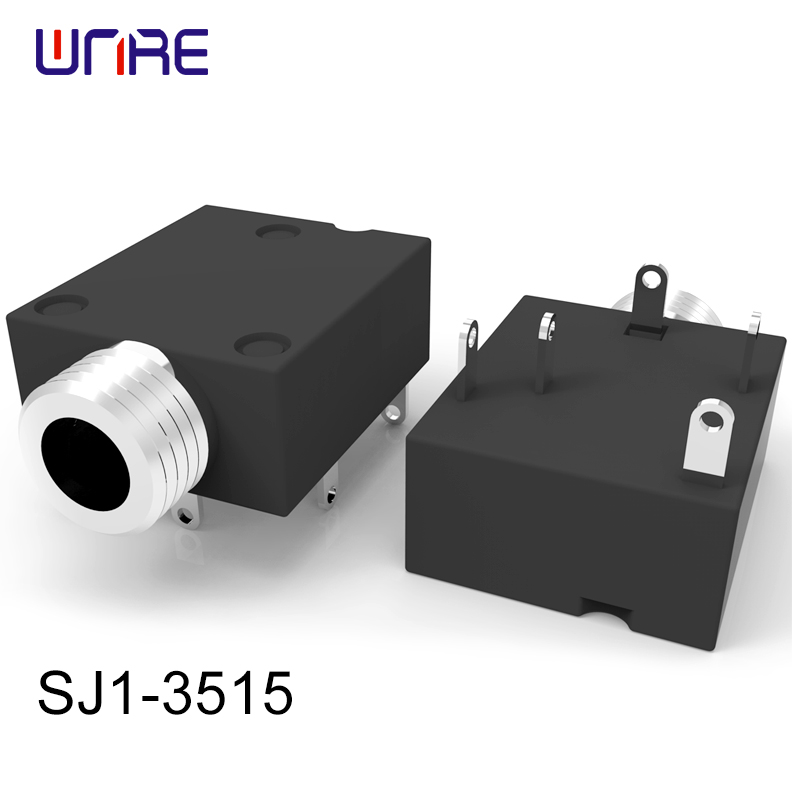

SJ1-3515 AUDIO JACK 12V 1A zinc alloy tin
SOLDERABILITY
| Parameter | Conditions/Description | min | typ | max | units |
| wave soldering | dipped in solder pot for 5±0.5 seconds at | 255 | 260 | 265 | ℃ |
| DESCRIPTION | MATERIAL | PLATING/COLOR |
| terminal 1 | brass=0.3 | silver |
| terminal 2 | phosphor=0.3 | silver |
| terminal 3 | brass=0.3 | sliver |
| terminal 4 | brass=0.3 | sliver |
| terminal 5 | phosphor=0.3 | sliver |
| thread | brass | nickel |
| shell | PBT black | |
| Housing | PTB black | |
| spring | steel black | |
| nuts | zinc alloy | tin |

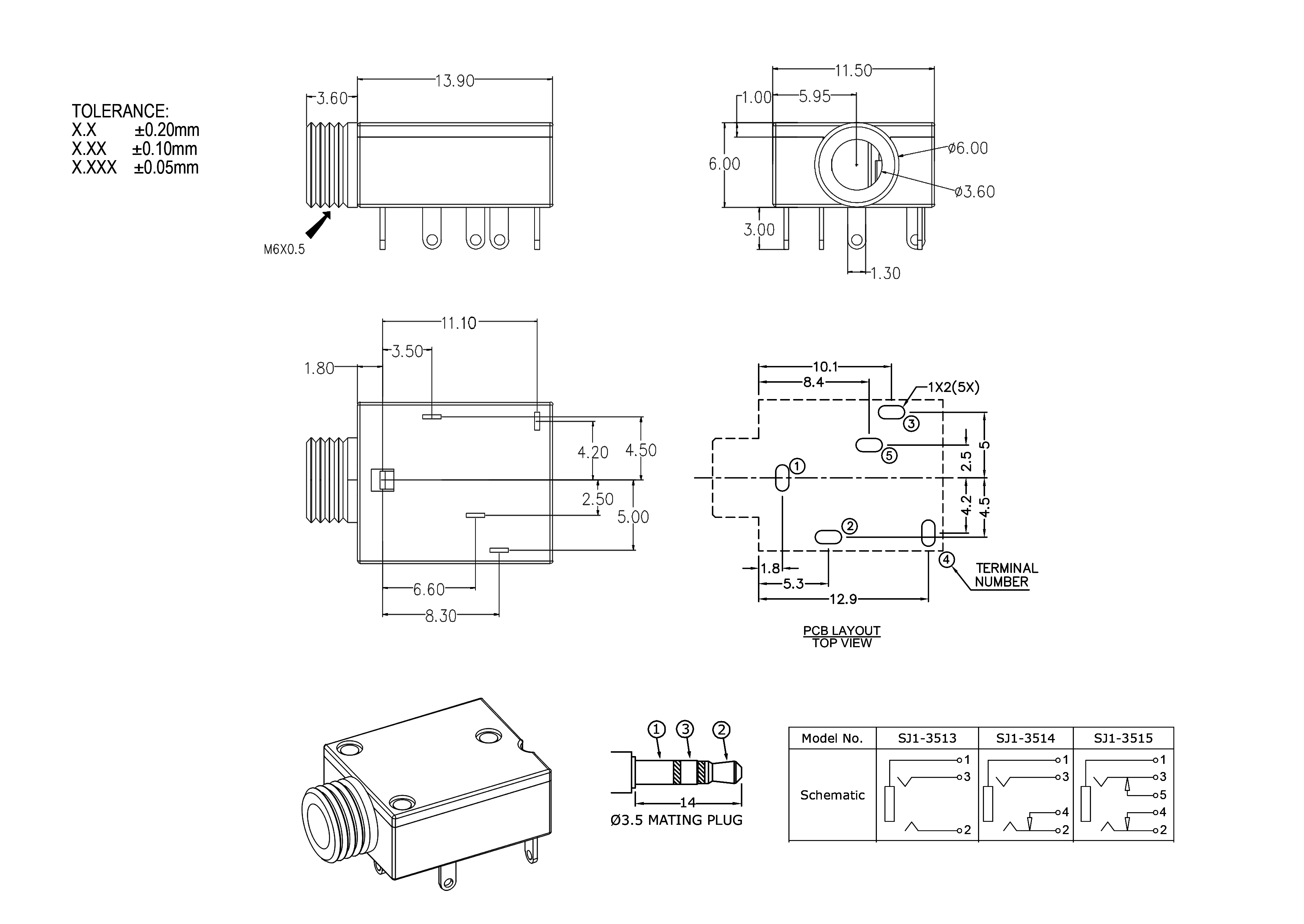

PRODUCT DRAWING
