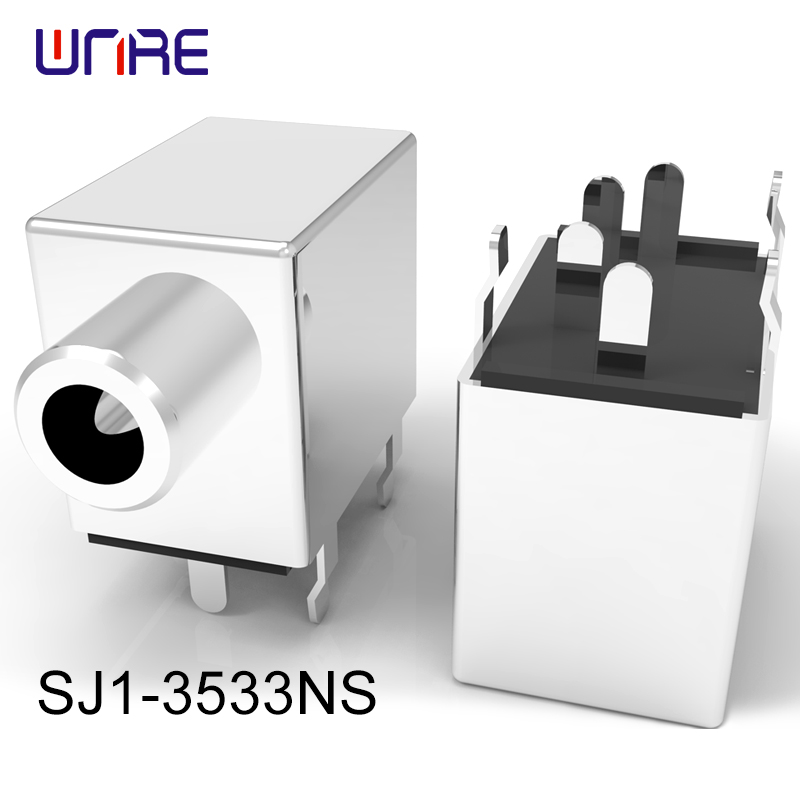

SJ1-3533NS AUDIO JACK 10 A rating Shielded No internal switch

Model no.SJ1-3533NS

DESCRIPTION: AUDIO JACK

FEATURES

• shielded

• low profile design

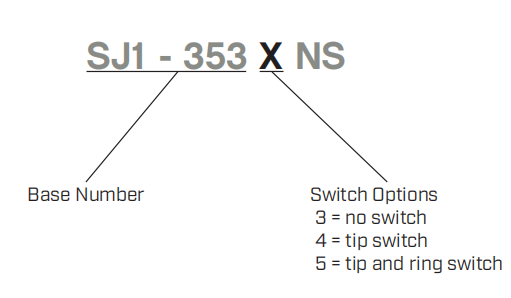

• switch options include:

- no switch

- tip switch

- tip and ring switch

Product Detail

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug50mΩ
	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ at 500VDC
voltage withstand for 1 minute	500V AC
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life	5000 cycles
RoHS	Yes
