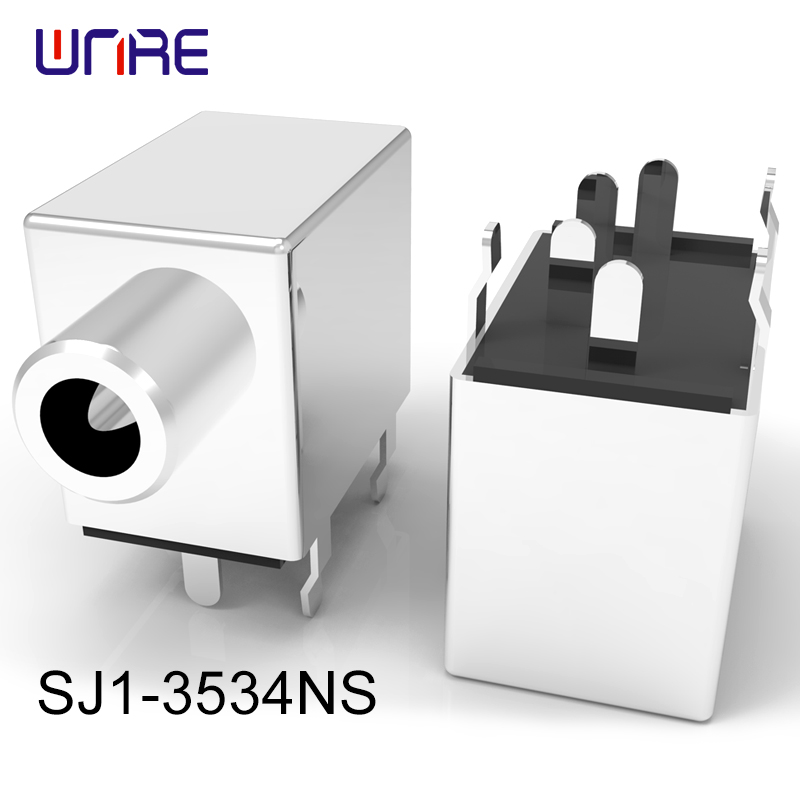

SJ1-3534NS AUDIO JACK no switch tip and ring shielded

Model no.SJ1-3534NS

DESCRIPTION: AUDIO JACK

FEATURES

• shielded

• low profile design

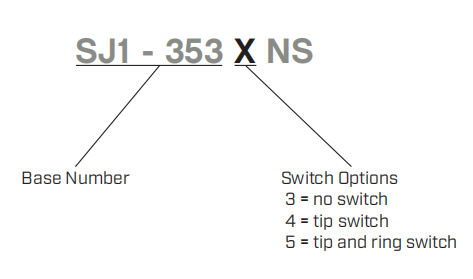

• switch options include:

- no switch

- tip switch

- tip and ring switch

Product Detail

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
	between terminal in a closed circuit30mΩ
insulation resistance	100MΩ at 500VDC
voltage withstand for 1 minute	500VAC
insertion/withdrawal force	0.3-3kg
operating temperature	-25-85℃
life	5000 cycles
RoHS	Yes
