SJ2-25774B-SMT-TR AUDIO JACK 12V 1A Solderability Brass Sliver

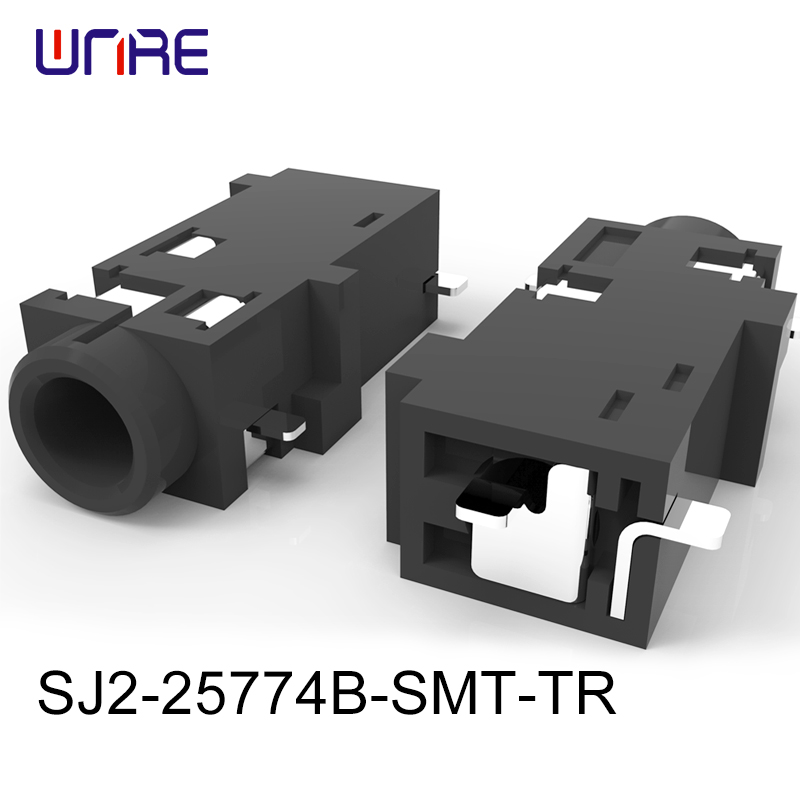

SJ2-25774B-SMT-TR AUDIO JACK 12V 1A Solderability Brass Sliver Featured Image

Short Description:

Model no.SJ2-25774B-SMT-TR

DESCRIPTION:AUDIO JACK

rated input voltage	12V
rated input current	1A
contact resistance	between terminal and mating plug 50mΩ
contact resistance	between terminal in a closed circuit 30mΩ
insulation resistance	100MΩ
voltage withstand for 1 minute	500V ac
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life	5000
flammability rating	UL94V-0
RoHS	Yes

Send email to us

Product Detail

Product Tags

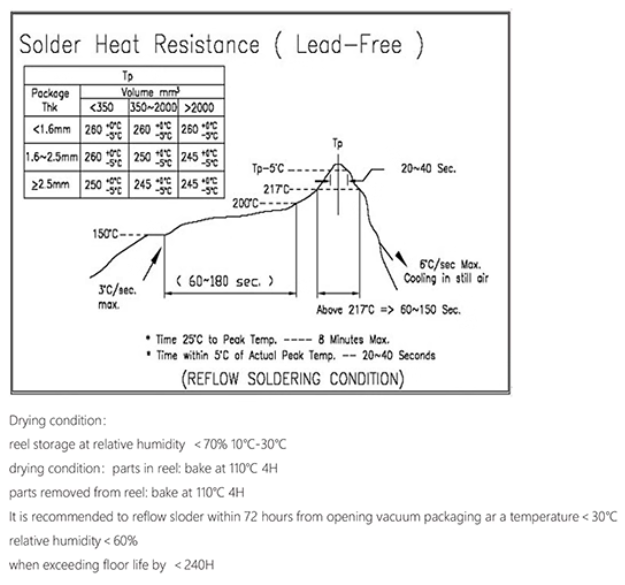

SOLDERABILITY

DESCRIPTION	MATERIAL	PLATING/COLOR
terminal 1	brass	silver
terminal 2	brass	silver
termial 3	brass	silver
termial 4	brass	sliver
termial 10	brass	sliver
Housing	PA10T BLK

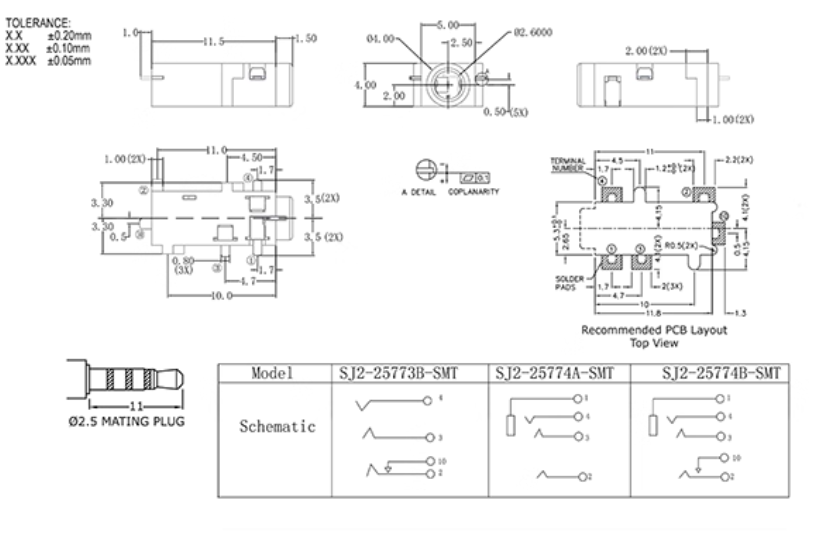

PRODUCT DRAWING

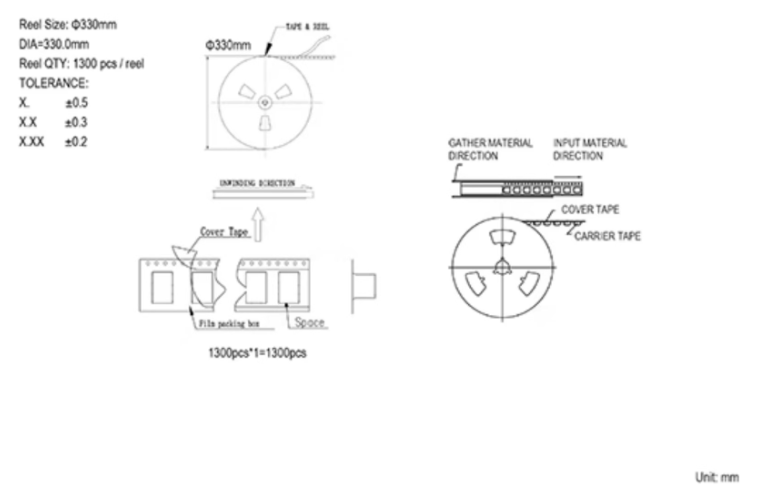

PACKAGE DRAWING
