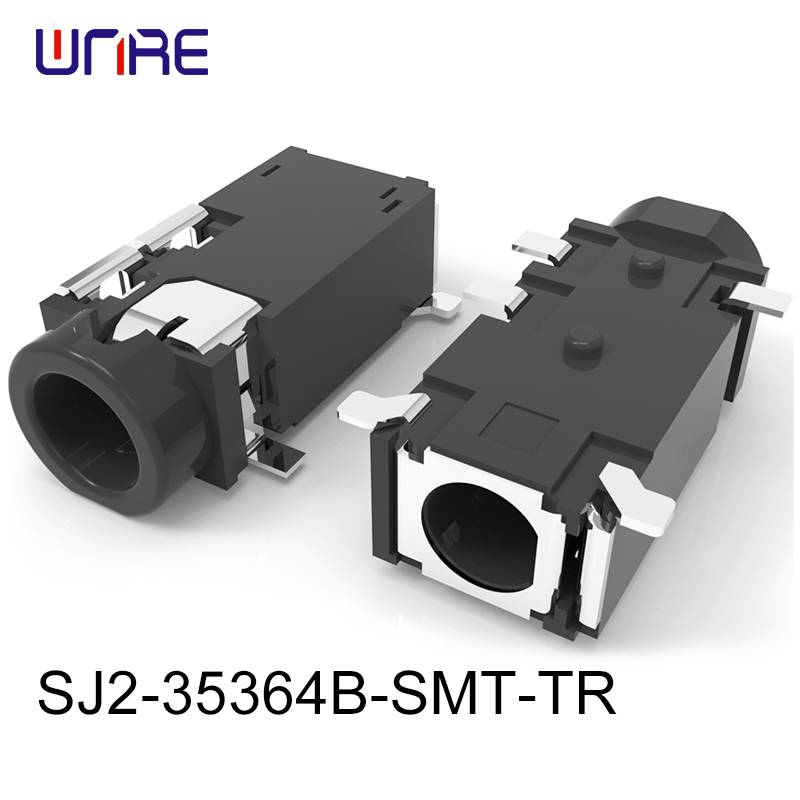

SJ2-35364B-SMT-TR AUDIO JACK Tip switch Low profile design
SOLDERABILITY
| Parameter | Conditions/Description | min | typ | max | units |
| Reel storage | at relative humidity＜80% | 40 | ℃ | ||

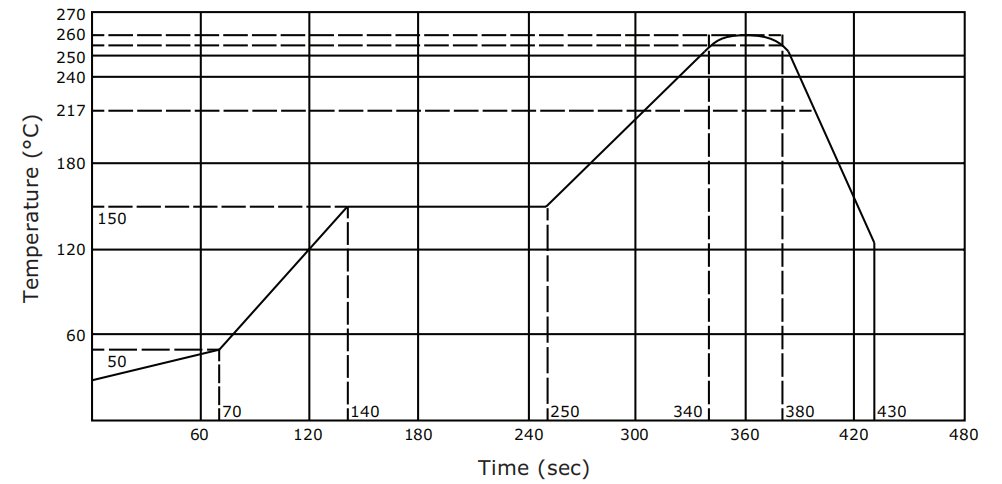

| Reflow soldering1 | See reflow profile | 255 | 260 | 265 | ℃ |
| Drying conditions2 | Parts in real:bake at 40℃±5℃ for 72 hoursParts removed from reel:bake at 40℃±5℃ for 10 hours |
Note:
1. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
2. When exceeding floor life by >72 hours.

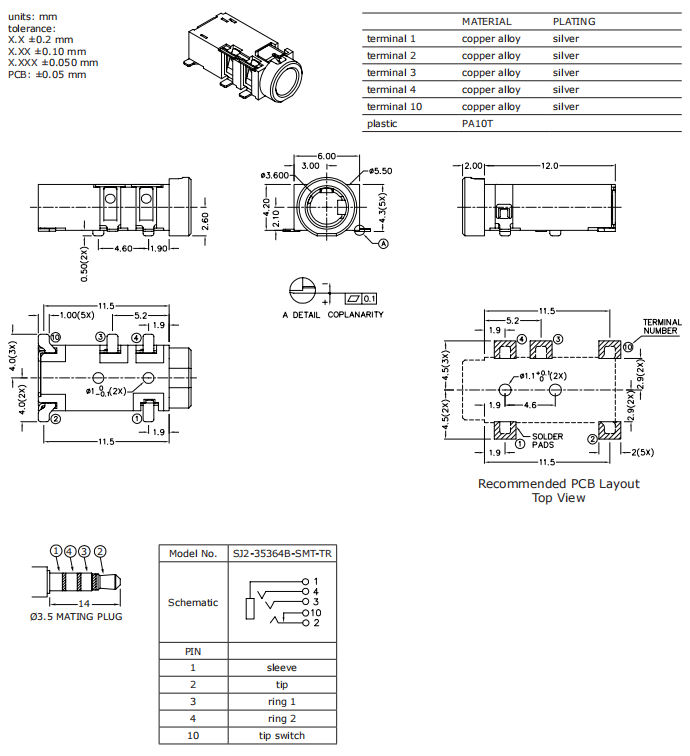

PRODUCT DRAWING
