Short Description:

Product name: 1P Right Angle High Voltage Connector

Plastic housing: PA66-GF V0, Orange

Terminal: Copper alloy, silver plated

RFI/EMI protection: metal shield


Product Detail

Product Tags

Product name: 1P Right Angle High Voltage Connector

Plastic housing: PA66-GF V0, Orange

Terminal: Copper alloy, silver plated

RFI/EMI protection: metal shield

Operation force: ≤100N

Temp. Range: - 40 ℃ ~ 140 ℃

Rated Voltage: 1500V DC

Mating Cycles: ≥50

Current Capacity: 125A=25mm²,  150A=35mm²,  200A=50mm²

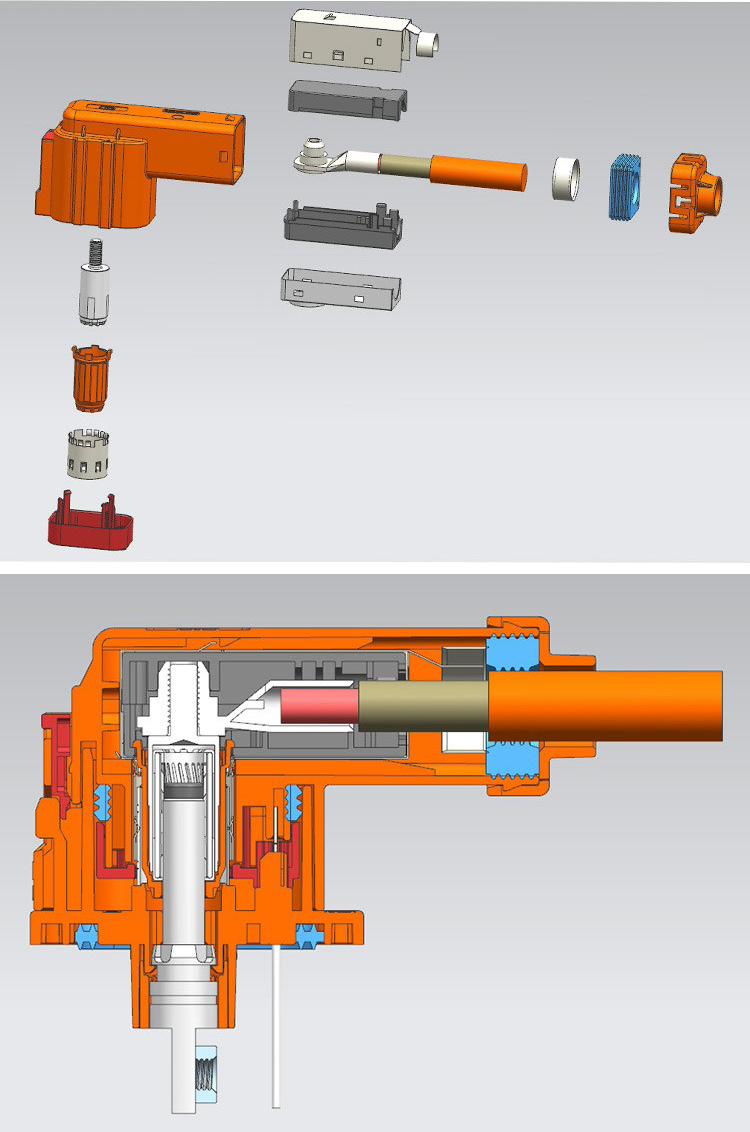

单芯弯插头配件1单芯插座8mm单芯弯插头插座2解析图弯头∅8一芯弯插高压连接器总成8mm单芯弯插产品说明书

Packing & Delivery

Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
