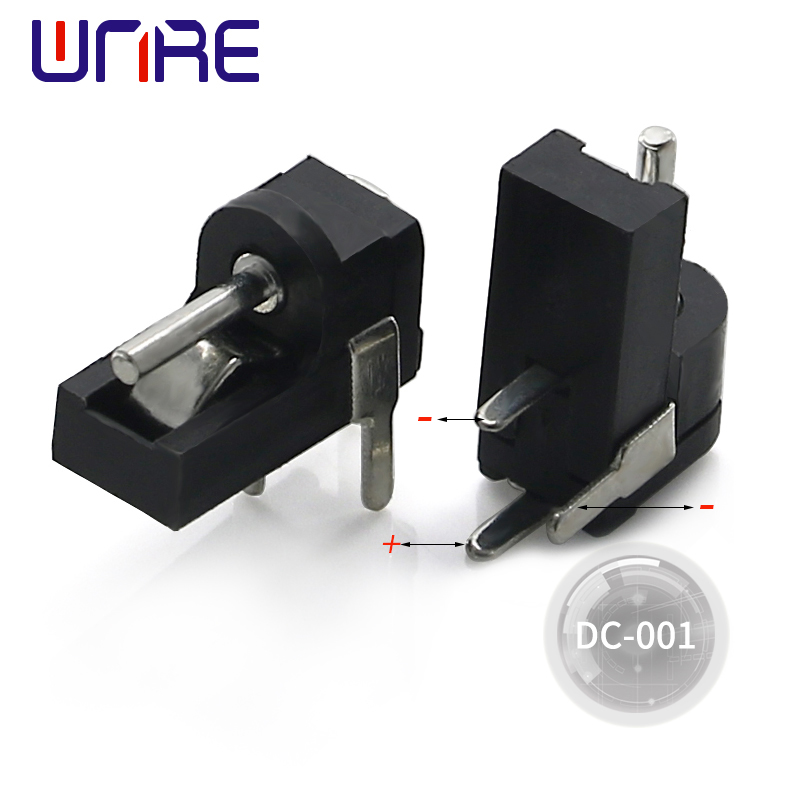

Featured Power Cabinet Switching & Interconnect Solutions
Compact, illuminated, and robust switching components designed for modular electrical distribution and control panel boards.
Ultra-Crisp Tactile Feedback
Engineered dome arrays deliver precise actuation force (160gf–260gf) preventing accidental false triggering in high-vibration power enclosures.
Integrated Dual & RGB LEDs
High-luminance micro-LED chips provide immediate visual status cues (Run, Fault, Standby, Calibration) across dark and high-glare environments.
Industrial IP67 Sealing
Laser-welded silicone membranes protect internal contacts from harsh electrical ozone, conductive dust, high moisture, and dielectric cleaning solvents.
Executive Overview: The Critical Role of LED Tact Switches in Power Cabinet Engineering
In contemporary industrial automation, smart power grids, and high-density renewable energy storage installations, the structural complexity of power distribution cabinets has evolved dramatically. Modern power cabinets—ranging from Low-Voltage Switchgear (LVS) and Motor Control Centers (MCC) to Intelligent Power Distribution Units (iPDUs) and Energy Storage System (ESS) battery management racks—require real-time human-machine interface (HMI) nodes that are both tactilely definitive and visually communicative.
The LED Tact Switch For Power Cabinets occupies a foundational position within this operational paradigm. Unlike conventional blind momentary switches or bulky rotary controls, an illuminated tactile switch integrates micro-travel mechanical contact domes with surface-mount or through-hole high-efficiency LEDs into a unified, ultra-compact footprint. This fusion delivers unmistakable mechanical snap feedback to the operator's fingertip while simultaneously projecting luminous optical signals regarding circuit state, fault alerts, channel selection, or emergency auxiliary functions.
Industrial & Commercial Landscape: Market Dynamics and Infrastructure Demands
The global shift toward electrification, edge computing data centers, and gigawatt-scale solar/wind farms has placed unprecedented reliability requirements on power cabinet components. Key market forces shaping the adoption of illuminated tact switches include:
- Miniaturization of Control Boards: As power cabinets integrate advanced microcontrollers, DSP telemetry units, and edge IoT gateways, the physical PCB space allocated for user input and diagnostic controls has shrunk by over 40%. Compact LED tact switches (6x6mm, 10x10mm, and 12x12mm) provide maximum density without sacrificing ergonomic accessibility.
- Arc-Flash Safety and Rapid Diagnosis: Under high-voltage operational standards (such as NFPA 70E and IEC 61439), technicians must minimize enclosure dwell time. Dual-color (e.g., Green/Red) and tri-color RGB illuminated switches enable instant diagnostic recognition from a safe distance before physical interaction occurs.
- Vibration and Thermal Endurance: Industrial power cabinets house high-current transformers, magnetic contactors, and variable frequency drives (VFDs) that emit continuous harmonic vibration and elevated ambient thermal loads. Premium tactile switches engineered with high-grade stainless steel domes and liquid crystal polymer (LCP) bodies resist contact bounce and plastic degradation.
Deep-Dive Application Scenarios of LED Tact Switches in Power Cabinets
1. Smart Energy Storage System (ESS) Battery Cabinets
In commercial and utility-scale Battery Energy Storage Systems (BESS), each battery enclosure incorporates a Battery Management Unit (BMU) and Power Conversion System (PCS) interface. Illuminated tact switches serve as localized manual reset triggers, module balancing selectors, and pre-charge validation buttons. The integrated LED illuminates amber during pre-charging, solid green under nominal synchronization, and rapid flashing red upon ground-fault or cell over-temperature conditions.
2. Intelligent Power Distribution Units (iPDUs) in Data Centers
Hyperscale server rack power cabinets demand deterministic branch circuit monitoring. LED tact switches mounted on modular power distribution strips allow data center technicians to cycle through real-time power metrics (Amperage, Voltage, Power Factor, and Harmonic Distortion) on auxiliary OLED screens. The switch LED pulses in synchrony with data transmission packets, assuring field engineers of bus communications integrity.
3. Photovoltaic (PV) Central and String Inverter Enclosures
Outdoor solar inverter power cabinets are subjected to wide diurnal thermal swings (-40°C to +85°C), condensing moisture, and intense UV radiation. IP67-rated sealed LED tact switches are deployed on localized control modules for grid-tie disconnection confirmation, MPPT channel toggling, and firmware field update handshakes. The sealed silicone actuator prevents internal copper sulfidation and electrolytic creepage.
4. Modular Motor Control Centers (MCC) & Switchboards
In petrochemical, metallurgy, and automated manufacturing facilities, MCC enclosures house critical motor starters and soft starters. Tactile switches with high-actuation force (up to 260gf or 350gf) prevent accidental switching caused by heavy cabinet door closures or seismic vibrations. When a soft-starter bypasses line voltage, the integrated LED transitions from amber to emerald green, confirming contactor closure without requiring the operator to unlatch high-voltage sub-panels.
Technical Specification & Comparative Engineering Matrix
Specifying the correct illuminated tactile switch for industrial electrical cabinets involves balancing mechanical travel, electrical ratings, LED drive currents, and environmental protection indices. The table below delineates critical baseline parameters for cabinet-grade illuminated switches:
| Parameter Attribute | Standard Industrial Grade | Power Cabinet High-Reliability Grade | Testing Protocol |
|---|---|---|---|
| Contact Rating | DC 12V / 50mA | DC 24V / 50mA – DC 32V / 100mA | IEC 61058-1 |
| Actuation Force | 160 ± 30 gf | 260 ± 50 gf / 320 ± 50 gf | ASTM D2000 Tactile Profile |
| Operating Lifespan | 100,000 Cycles | 500,000 – 1,000,000 Cycles | Endurance Cycling Test |
| Dielectric Withstanding | 250V AC (1 min) | 500V AC to 1,000V AC (1 min) | IEC 60664 Insulation Class |
| Contact Resistance | ≤ 100 mΩ | ≤ 30 mΩ (Initial) | MIL-STD-202 Method 307 |
| Ingress Protection | IP40 Dust Resistant | IP67 / IP68 Hermetically Sealed | IEC 60529 Water/Dust Chamber |
| Operating Temperature | -25°C to +70°C | -40°C to +85°C / +105°C | Thermal Shock (-40/+125°C) |
Design Considerations for Power Cabinet PCB Layout and Electrical Safety
When integrating LED tact switches into the control and monitoring circuit boards of power cabinets, hardware engineers must observe stringent signal isolation and layout design rules:
- LED Ground & High-Voltage Signal Isolation: LED drive lines must maintain sufficient creepage and clearance distances from high-voltage AC bus trace routes on the printed circuit board. Optocouplers or dedicated isolated LED driver ICs should be utilized to shield microcontrollers from voltage transients induced by inductive load switching.
- ESD Protection Protocols: Since cabinet operators frequently interface directly with tactile switch caps, static electricity discharges (up to 15kV air discharge) can strike the switch chassis. Incorporating transient voltage suppressor (TVS) diodes directly adjacent to the switch pins prevents catastrophic microcontroller latch-up.
- Custom Laser-Marked Keycaps: Standard tactile switches feature modular keycaps available in various dimensions (round, square, concave) with custom laser-etched symbols such as Power, Reset, Run, Auto/Manual, or Fault icons. Translucent PC caps combined with internal light-guide diffusers ensure 100% uniform light distribution without hotspot glare.
Future Trends: Smart Status Reporting and Modular Ergonomics
The trajectory of switchgear and cabinet HMI design points toward multi-functional smart tactile nodes. Emerging innovations include:
1. Bi-directional Bus-Addressable Tact Nodes: Future cabinet switches incorporate micro-ASIC chips on the switch substrate, allowing hundreds of illuminated tact switches across multi-bay switchgear lineups to communicate over a single RS-485 Modbus or CAN-FD twisted pair wire, drastically reducing wiring harness congestion.
2. Eco-Friendly Halogen-Free Materials: In compliance with global RoHS 3 and REACH guidelines, manufacturers are transitioning to UL 94V-0 halogen-free flame retardant resins that emit zero toxic halogenated gases during high-temperature arc incidents.
