Mini Double ON-OFF Switch Waterproof Light Rocker Switch

Short Description:

Product Name:KCD Rocker Switch

Contact Resistance:< 30 mΩ max initial @ 2-4VDC, 100mA

Dielectric Strength:1500Vrms min

Insulation Resistance:> 100MΩ min

Operating Temperature:-40°C to 85°C

Storage Temperature:-40°C to 85°C

Electrical Life:50,000 cycles typical

Color:Black, Red, White, Green, Yellow, Orange, Blue


Product Detail

Product Tags

rocker switchtact switch
toggle switchmetal push button switch

Product information

The rocker switch has the same structure as the button switch, except that the handle is replaced with a boat shape. Rocker switches are commonly used as power switches for electronic devices. The rocker switches have single pole single throw or double pole double throw contacts, and some switches have indicator lights.

Switch type:

SPST(Single Pole Single Throw) : 1 moving contact and 1 static contact. There's only one channel

SPDT (Single Pole Double Throw) : 1 moving contact and 2 static contact (static contact on both sides can be connected)

DPST(Double Pole Single Throw) : 2 moving contacts and 2 static contacts, with 2 channels

DPDT(Double Pole Double Throw) : 2 moving contacts and 4 static contacts, with 4 channels (2 static contacts on both sides can be connected)

Waterproof rocker switch: rocker switch can be used in wet environment or can be operated by wet hand.

Notes for use:

The specific application of waterproof rocker switches is limited by many factors, such as: installation method and installation direction of the product, airflow, differential pressure acting on the product, strength of fluid rebound, and operating voltage; And so on. Even the state-of-the-art sealing of the Arcolectric waterproof rocker switch does not mean that the switch is completely sealed and that corrosive gases or substances need to be prevented.

Scope of application:

Ship type switch is used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TV sets, coffee POTS, row insertion, massage machines, etc., mainly for household appliances and so on.

Product display

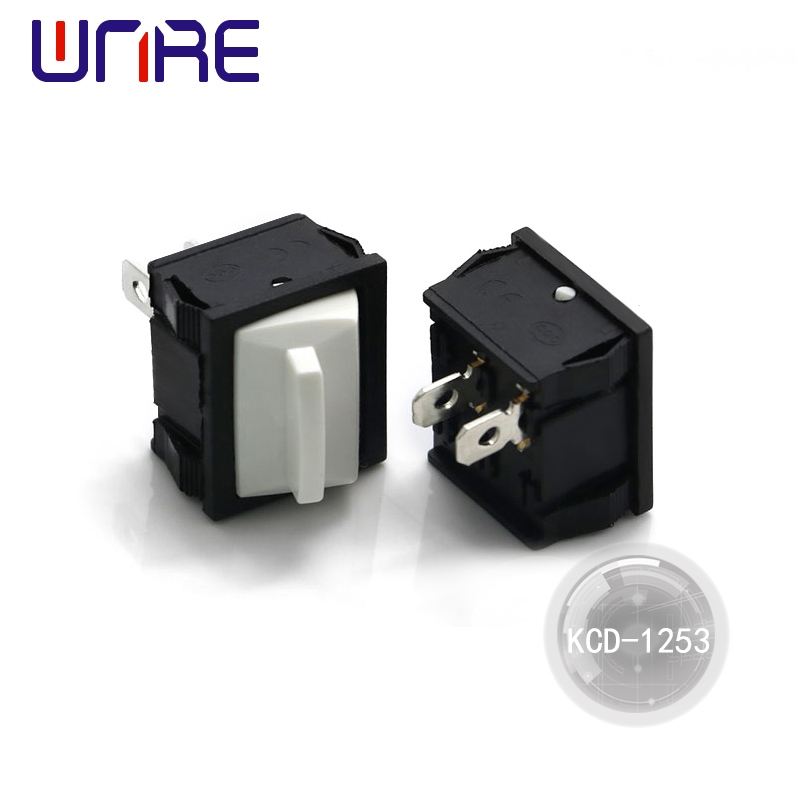

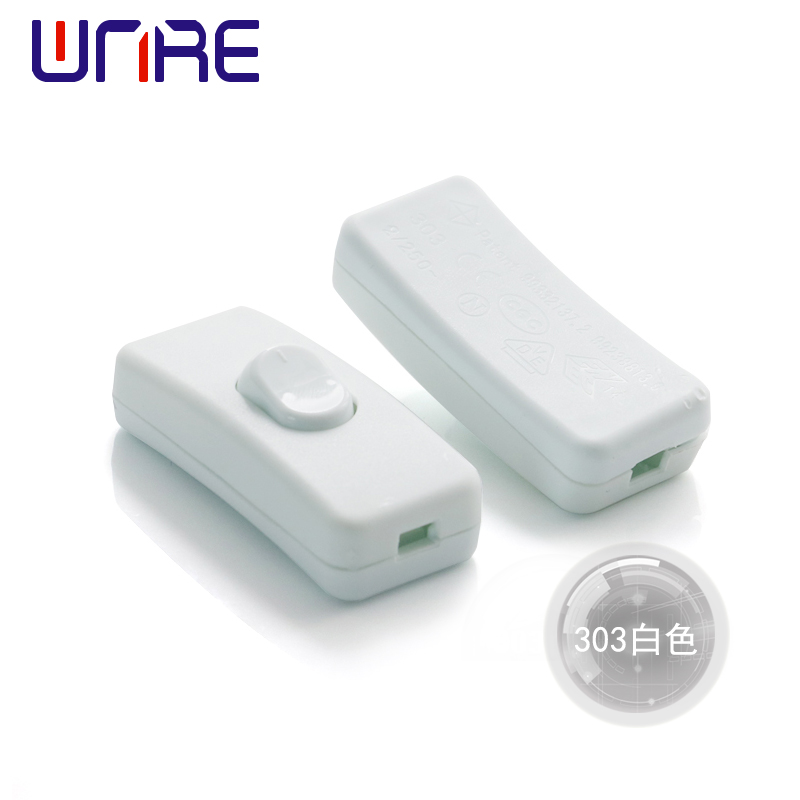

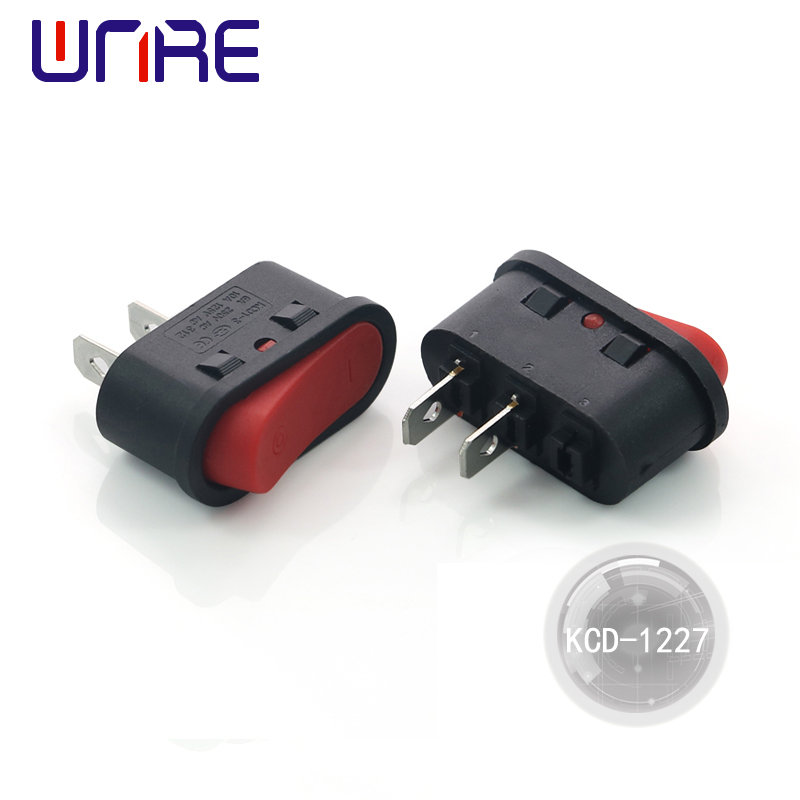

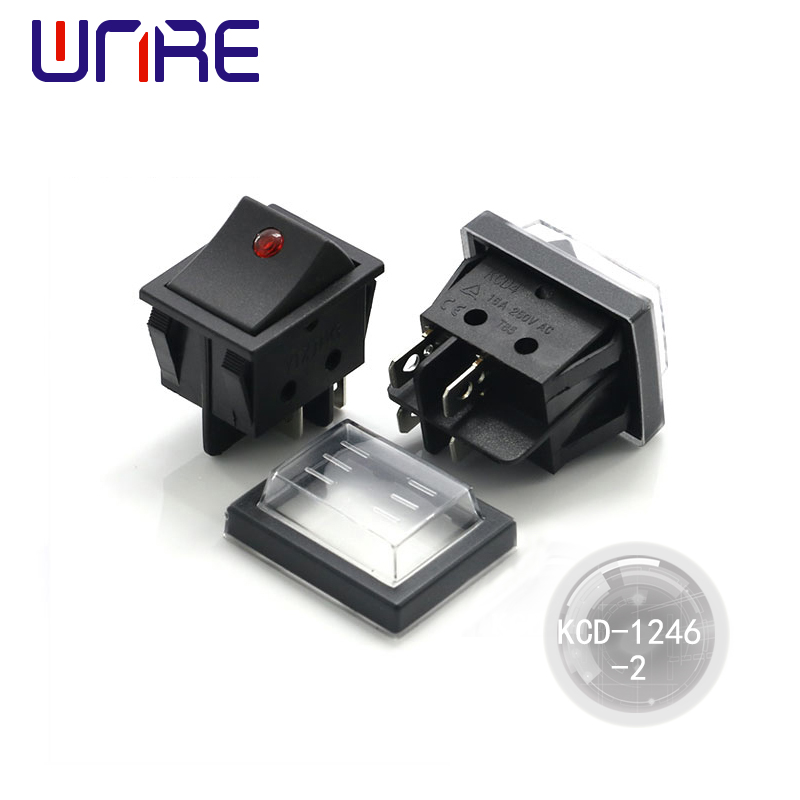

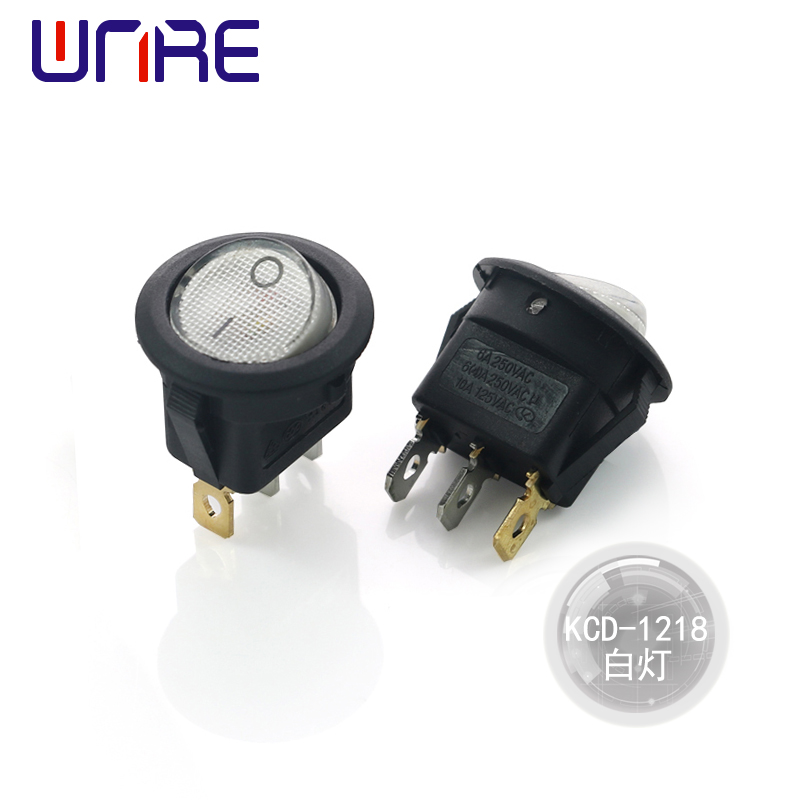

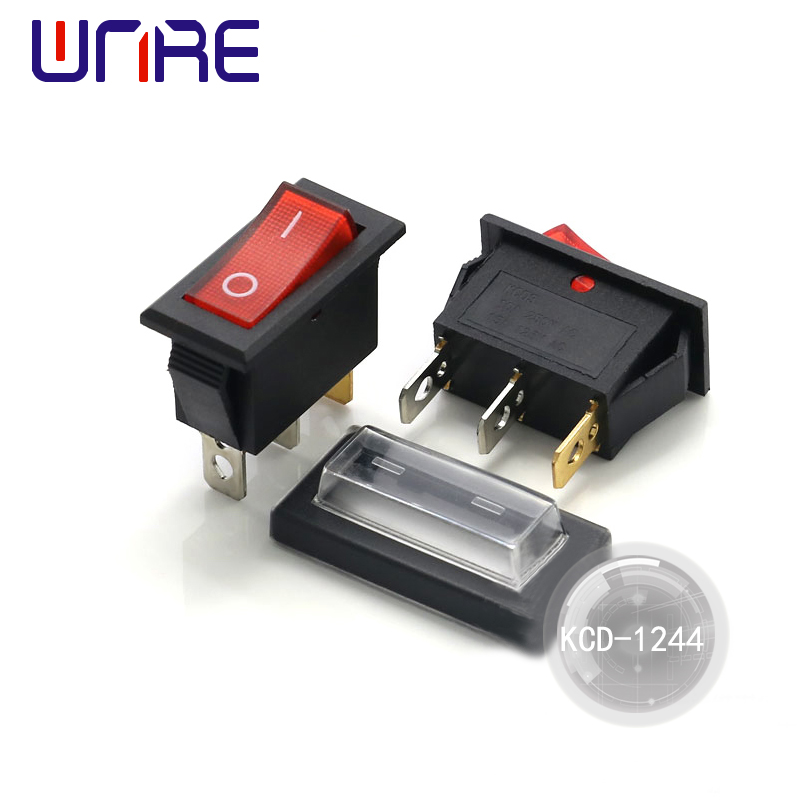

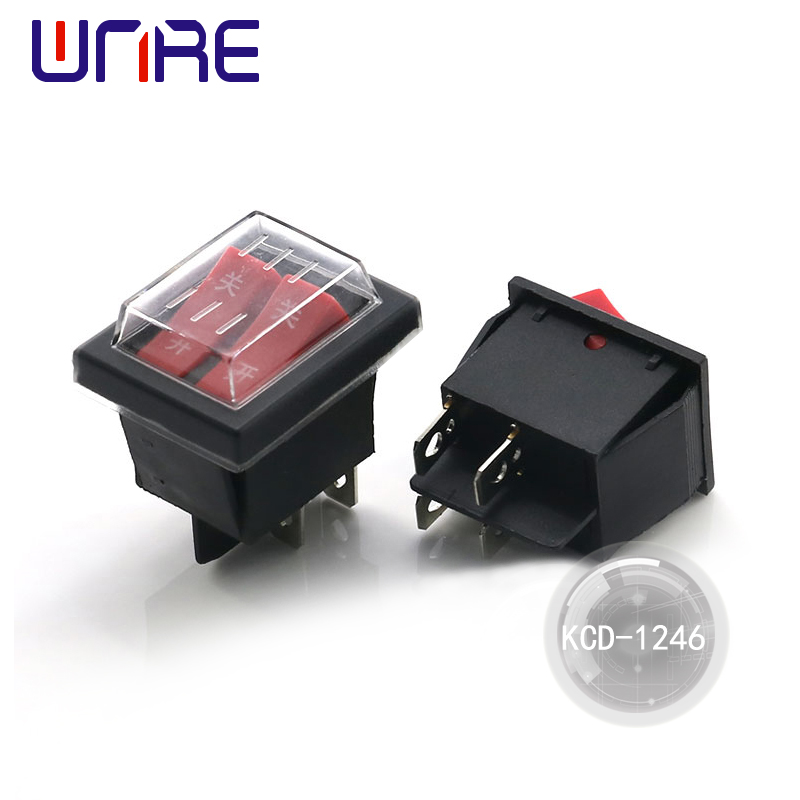

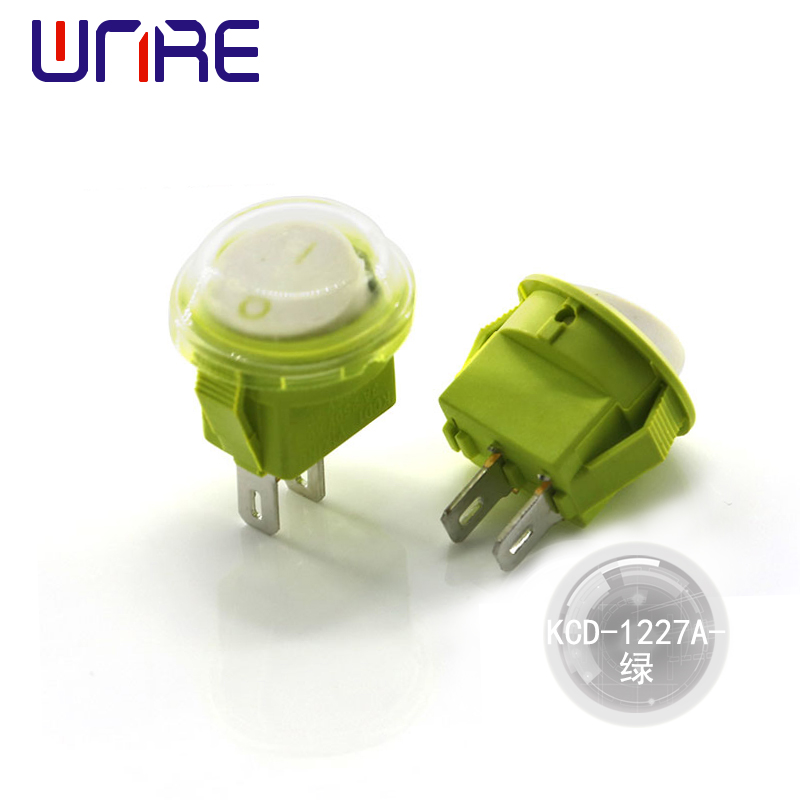

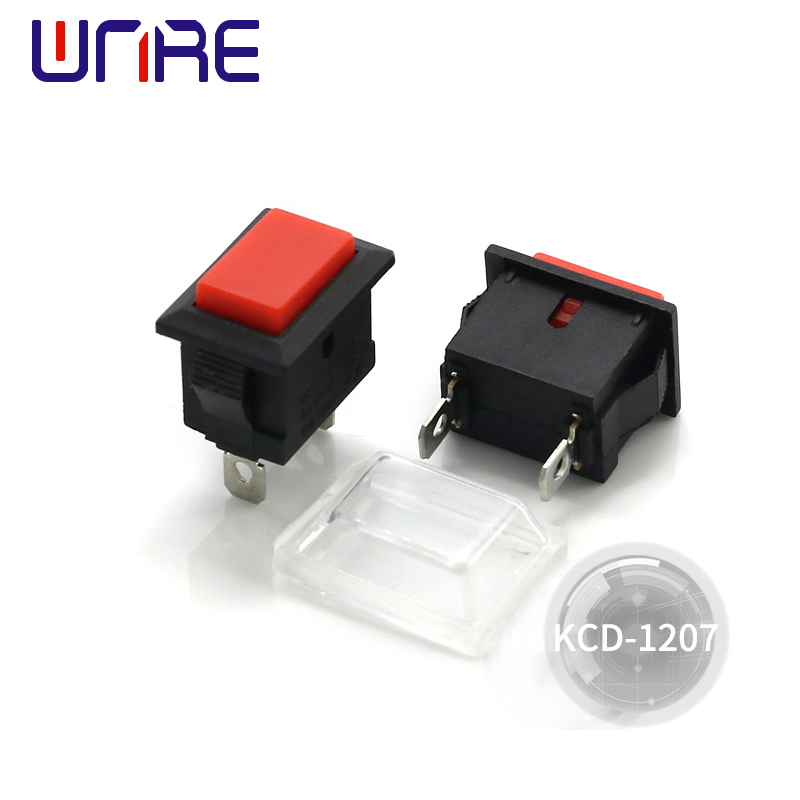

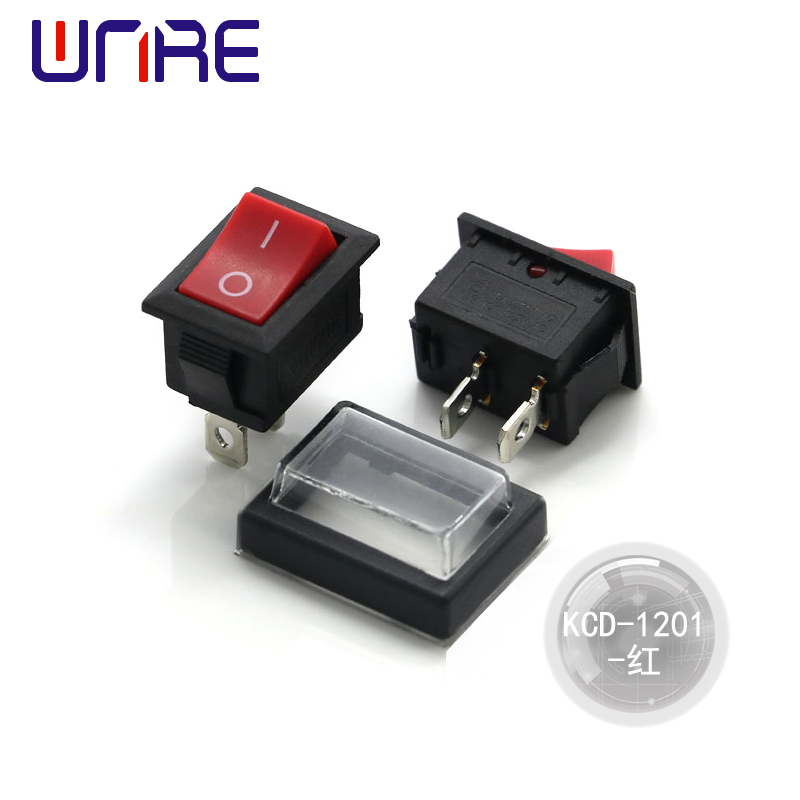

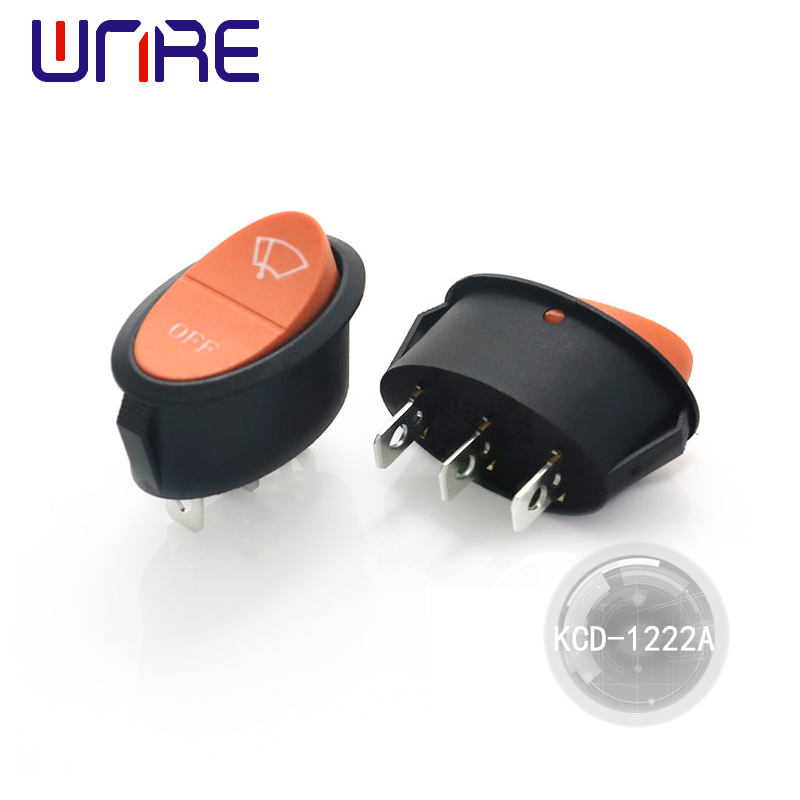

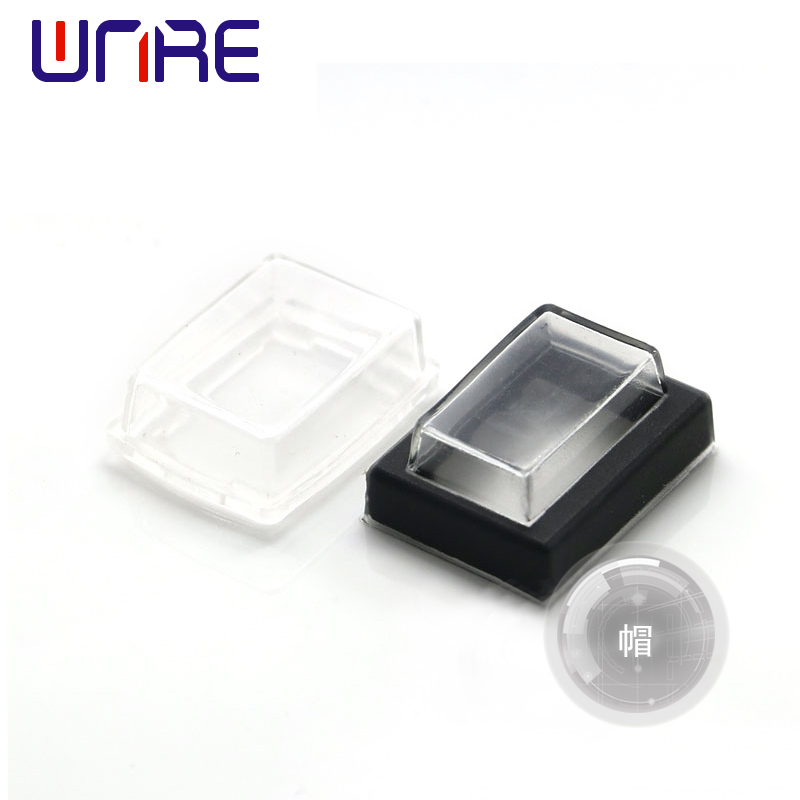

KCD-1244-1 KCD-1246 KCD-1246-2 KCD-1253 303白色 KCD-1201-红 KCD-1207 KCD-1218白灯 KCD-1222A KCD-1227 KCD-1227A-绿 帽

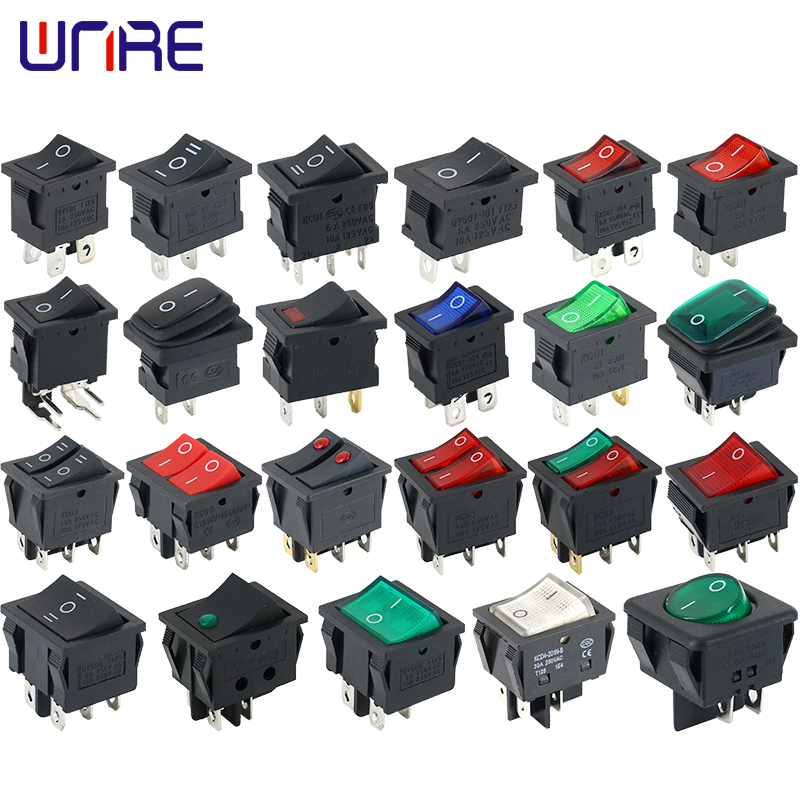

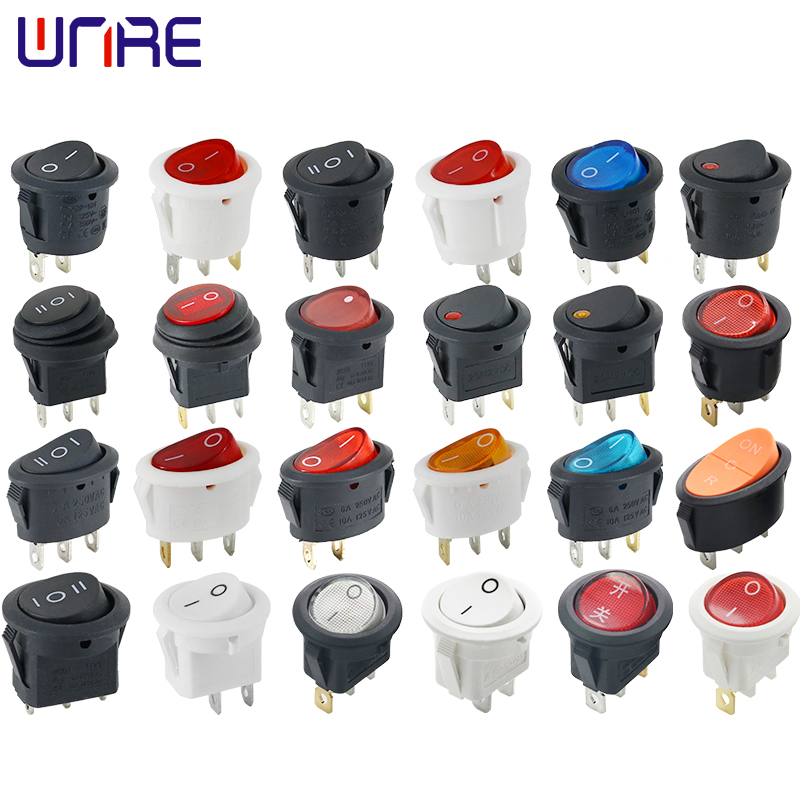

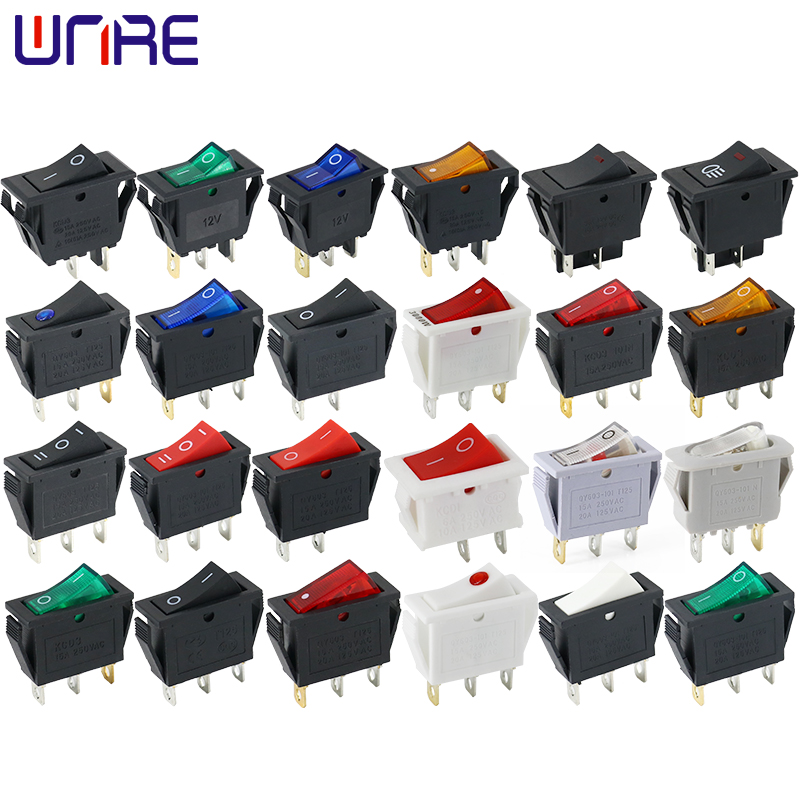

新方案模板-扁长 船型开关-方 船型开关-圆

Product drawings

KCD-1246
KCD-1252

Application

Rocker switch is used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TV sets, coffee POTS, row insertion, massage machines, etc.。Rocker switch is a kind of small high capacity power switch which is suitable for household appliances and office equipment. Compared with other switches, it is more powerful.Please communication with us about your require rated current in order to stop overloading issue. And please avoid water if the switch without waterproof function.rocker switch
