SJ1-3513N AUDIO JACK 12V 1A

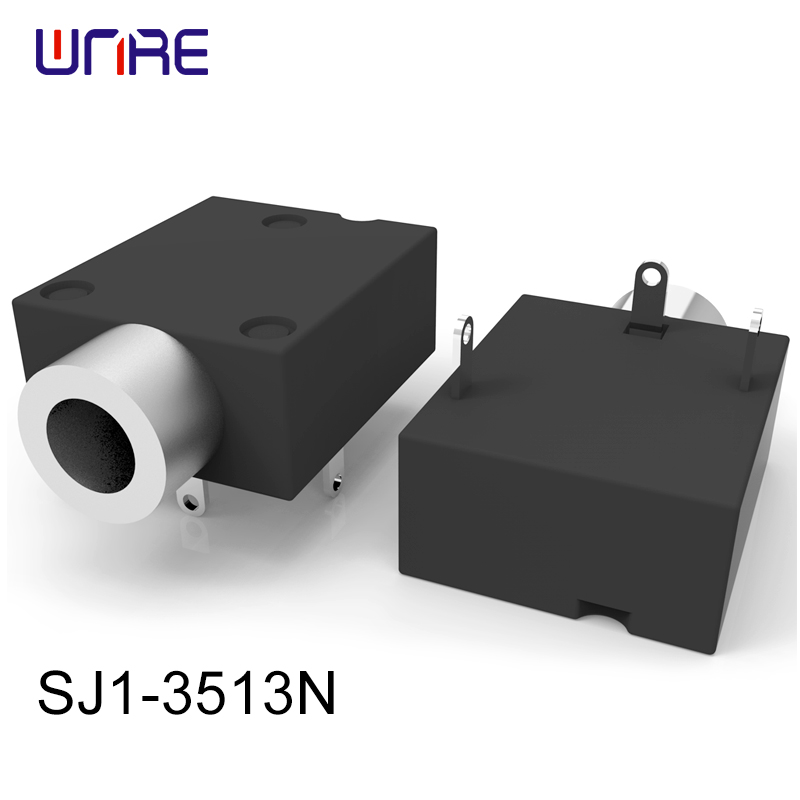

SJ1-3513N AUDIO JACK 12V 1A Featured Image
  • SJ1-3513N AUDIO JACK 12V 1A

Short Description:

Model no.SJ1-3513N

DESCRIPTION:AUDIO JACK

rated input voltage 12V
rated input current 1A
contact resistance between terminal and mating plug

50mΩ
between terminal in a closed circuit30mΩ
insulation resistance 100MΩ
voltage withstand for 1 minute 500V
insertion/withdrawal force 3-30N
operating temperature -25-85℃
life at a rate of 10-20 cycles/minute 5000
flammability rating UL94V-0
RoHS Yes


Product Detail

Product Tags

SOLDERABILITY

Parameter Conditions/Description min typ max units
wave soldering dipped in solder pot for 5±0.5 seconds 255 260 265 ℃

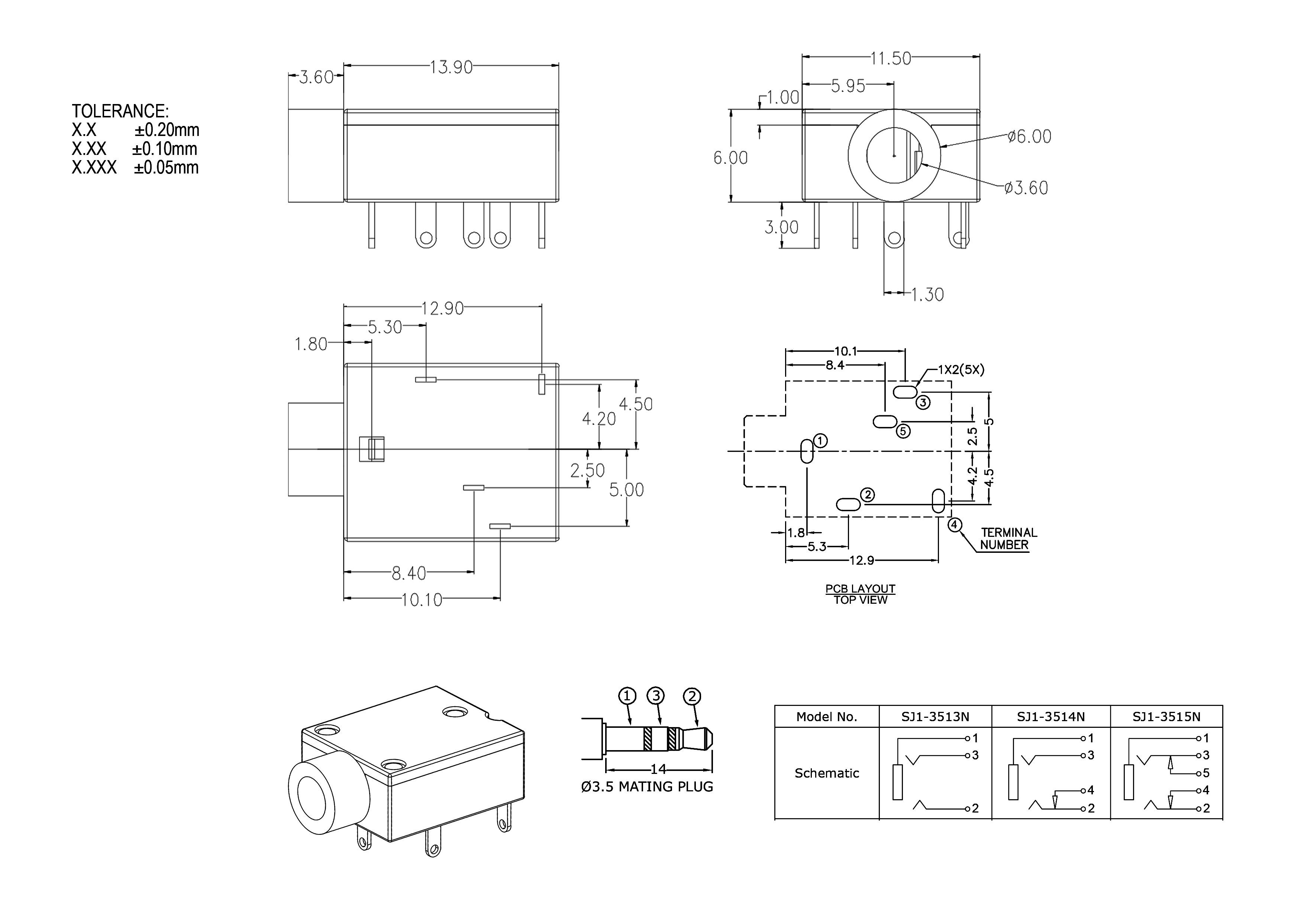

PRODUCT DRAWING

PRODUCT DRAWING
