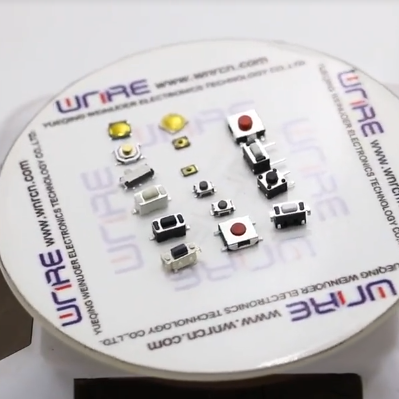

Tactile Push Button Switch Car Remote Control Keys Button Touch Microswitch

Short Description:

Product Name:Tact Switch

Terminal:DIP,SMT

Head shape:round head

Rated load:50mA 12V

Contact resistance:≤0.03Ω

Insulation resistance:100mΩ max

Temperature:-20ºC~+70ºC

Life:≥100,000 cycles

Certification:ROHS


Product Detail

Product Tags

Momentary tact switch Specifications

Temp:-50 ~80

Cycle time >100000 times

Features:

Long life span, durable.

Wide application.

Brand new and high quality.

Used in the fields of electronic products, household appliances and more.

Illuminated tact switch touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.

Good electrical Conductivity.

Compact and light weight, easy to carry and dismantling.

Applications: TV, Audio equipment, Video recorders, Cameras, Computers, Game consoles, Fax machines,Walkie-talkie, Batons, Machine tool control unit, Photocopying,Printers

We also provide tactile push buttons alps tact switch micro tact switch smd push button tact switch.

Features:

Push button to the operating direction with force the circuit closed. Push off the circuit opens.Product features: use standard copper parts which are dust-proof, anti-corrosion, strong conductivity, high sensitivity, long service life, wear-resistant, good electrical insulation, high-quality material, excellent impact resistance and vibration resistance.

The life test method is to test the opening and closing times until it is damaged. If not manually, a small motor can drive the eccentric opening and closing switch, and a counter can be used to record the times.

The height not included the terminal, height=shaft length+base thickness. EX. Part no.6X6X5, means base length 6 witch 6 base 3.5+shaft 1.5



Series


Operation feeling Mount type Dimensions (W×D×H) Features

Catalog

SKHL



Sharp feeling Snap-in Top push: 6×3.5×4.3/5mm
Side push: 7.3×7.22×4.3mm
-



SKHH



Sharp feeling Snap-in Top push: □6×4.3/5/7/9.5/13/17mm
Joint stem: □6×7.3mm
Side push:
7.5×7.85/9.85/12.35/19.85×7.4mm
-



SKHW



Sharp feeling Snap-in □6×4.3/5mm Dust-proof type



SKQJ



Sharp feeling Snap-in Top push: □6.6×5/7/9.5mm
Side push: 7.5×7.85×7.3mm
Dust-proof type



SKQB



Sharp feeling Snap-in Top push: □10×5/13/23.2mm
Side push: 11.5×11.9×11.3mm
Water-proof & Dust-proof Type



SKQE



Sharp feeling Snap-in Joint stem: □12×7.3mm
Flat stem: □12×4.3mm
Dust-proof type
Long life



SKHC



Sharp feeling Snap-in Joint stem: □12×7.3mm
Flat stem: □12×4.3mm
-



SKPF



Soft feeling Snap-in 8×9×10mm High operating force
Long-travel







Photo Operation feeling Mount type Dimensions (W×D×H)

Features

NET SHOP

SKSH



Sharp feeling Surface mount 3.3×2.9×0.35mm Low-profile



SKRW



Sharp feeling Surface mount □3.7×0.35mm Low-profile



SKRM



Sharp feeling Surface mount □4.5×0.4mm Low-profile



SKRB



Sharp feeling Surface mount □4.8×0.55mm Low-profile



SKRR



Sharp feeling Surface mount 7.5×7×0.6mm Low-profile
Long life



SKQG



Sharp feeling Surface mount □5.2×1.5mm Low-profile



Water-proof & Dust-proof Type Selection

Offering information:

Samples

1.Samples Lead time:3-10days

2.Samples cost: Samples are free but buyer pay freight charge

Volume

3.producing capacity 100k/week

Lead time volume Qty 10-25days less than 100k

                  15-30days less than 200k

1.Samples Qty:5-100pcs

2.Volume Qty:

Estimated volume quantities

The estimated year quantity for this parts

Package:Neutral packing or print your band on carton

        Bags/carton    Tape in reel

Payment Terms:Paypal(less than 300$) T/T L/C at sight

Currency: US dollar. RMB

Trade Terms:EXW FOB CIF CFR

Shipping ways: Express(DHL UPS) by sea by air freight

Shipping:

1)Worldwide shipping.

2)Orders processed timely after the payment verification.

3)Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.except holiday.
