TS-6029 DIP 4 Pin Tact Switch 6X6 Micro Self-reset Push Button Tactile Switch

Short Description:

Product Name:Tact Switch

Size:6*6



Color: Black (4.3-22H), Gray (4.3H), Red (4.3H), Green (5H), Orange (7.5H), Blue (8H), Yellow (8.5H)

Terminal:DIP

Head shape:round head

Rated load:50mA 12V

Contact resistance:≤0.03Ω

Insulation resistance:100mΩ max

Temperature:-20ºC~+70ºC

Life:≥100,000 cycles

Certification:ROHS


Product Detail

Product Tags

tact switchrocker switch
toggle switch
metal push button switch
Product Name Tact Switch Model Number TS-6029
Size 6X6mm Terminal DIP
Rated Load 50mA 12V Temperature -20ºC~+70ºC
Contact resistance ≤0.03Ω Insulation resistance 100mΩ max
Life >100,000 cycles Certification RoHS
High 4.0 / 4.3 / 4.5 / 5.0 (customized support)

Warm tips:
Item heights come in a variety of sizes
Special note: the height does not include the overall height of the pin
Height = switch handle + total height of base

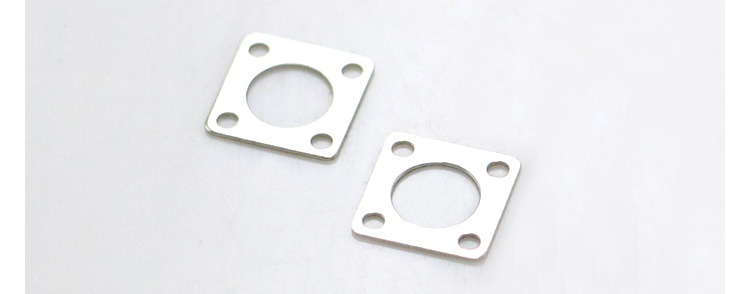

TS-6029JH-1

High quality support
High quality metal materials are selected, and nickel plating on the surface increases tin performance and prevents oxidation on the surface to add beauty.

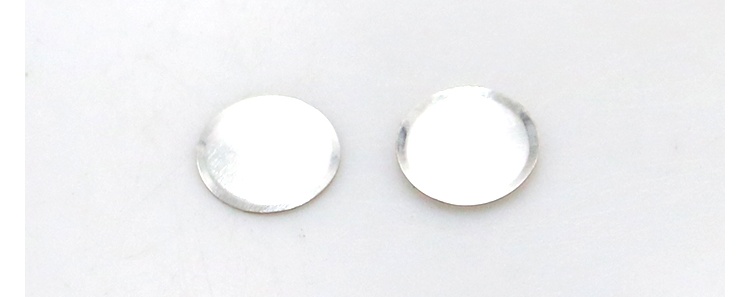

TS-6029JH-3High quality shrapnel
High quality stainless steel/silver-plated copper shrapnel, high rebound life and good contact performance, make the product more durable.

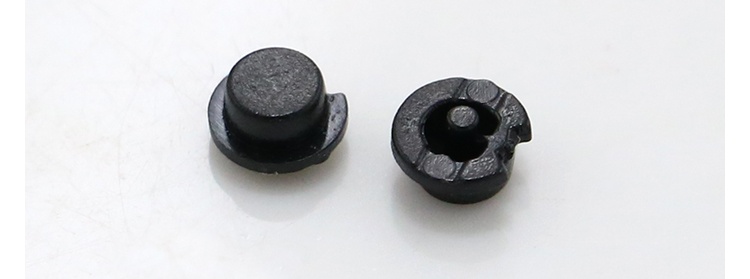

TS-6029JH-4Button press cap
Proper according to the cap, smooth surface processing feel more perfect.

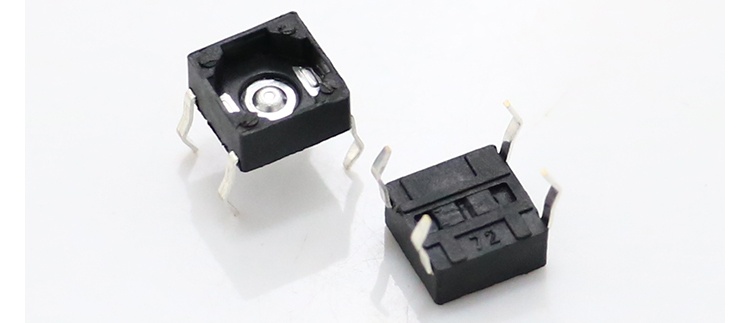

TS-6029JH-5Seiko base
High-tech achievements Seiko base for the quality of products to lay the foundation.
TS-6029JH-6Highly customized
Can customize the required height of the product.TS-6029JH-7

Product Drawing

TS-6029JH-8
