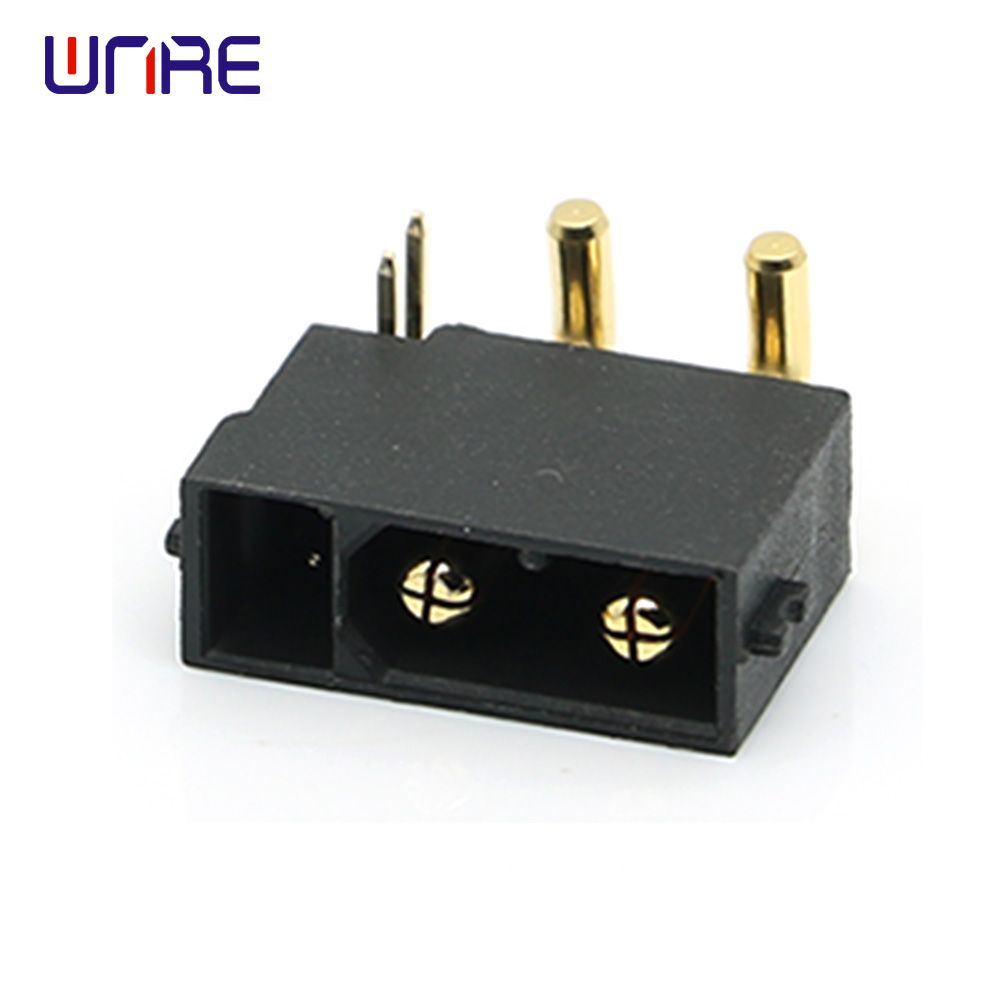

XT30PW(2+2) Male Gold Plated Plug With Signal Pin

Short Description:


Product Detail

Product Tags

Product Parameter

Product Model: XT30PW(2+2)-M

Rated Current: 20A MAX(△<85℃);Pin:1A

Voltage Resistance: 500V DC

Insulation resistance: ≥2000MΩ

Contact resistance: ≤1.2MΩ

Mechanical life: 100times

Salt Spray: 48h

Protection level: IP40

Operational Temperature: -20℃~120℃

Flame Retardant Rating: UL94 V-0

Outer Hull: PA, BLACK

Outer Hull: PA, BLACK

Pinhole: Aldary,Elecreoplate: Gold Plating

Product characteristics

1, XT30PW(2+2)-M is a horizontal plate assembly type 2+2PIN connector, is the current power lithium power plug-in standard parts, can be welded line type XT30(2+2)-F mutual matching.

2. It's available for connecting lithium batteries to the controller.

Announcements

When in use, do not exceed the rated current and voltage.

Do not use it when external forces are applied to the connector.

Do not use it when the temperature and humidity is high.

When open the package, be careful to prevent deformation, bending, or ejecting of terminals.

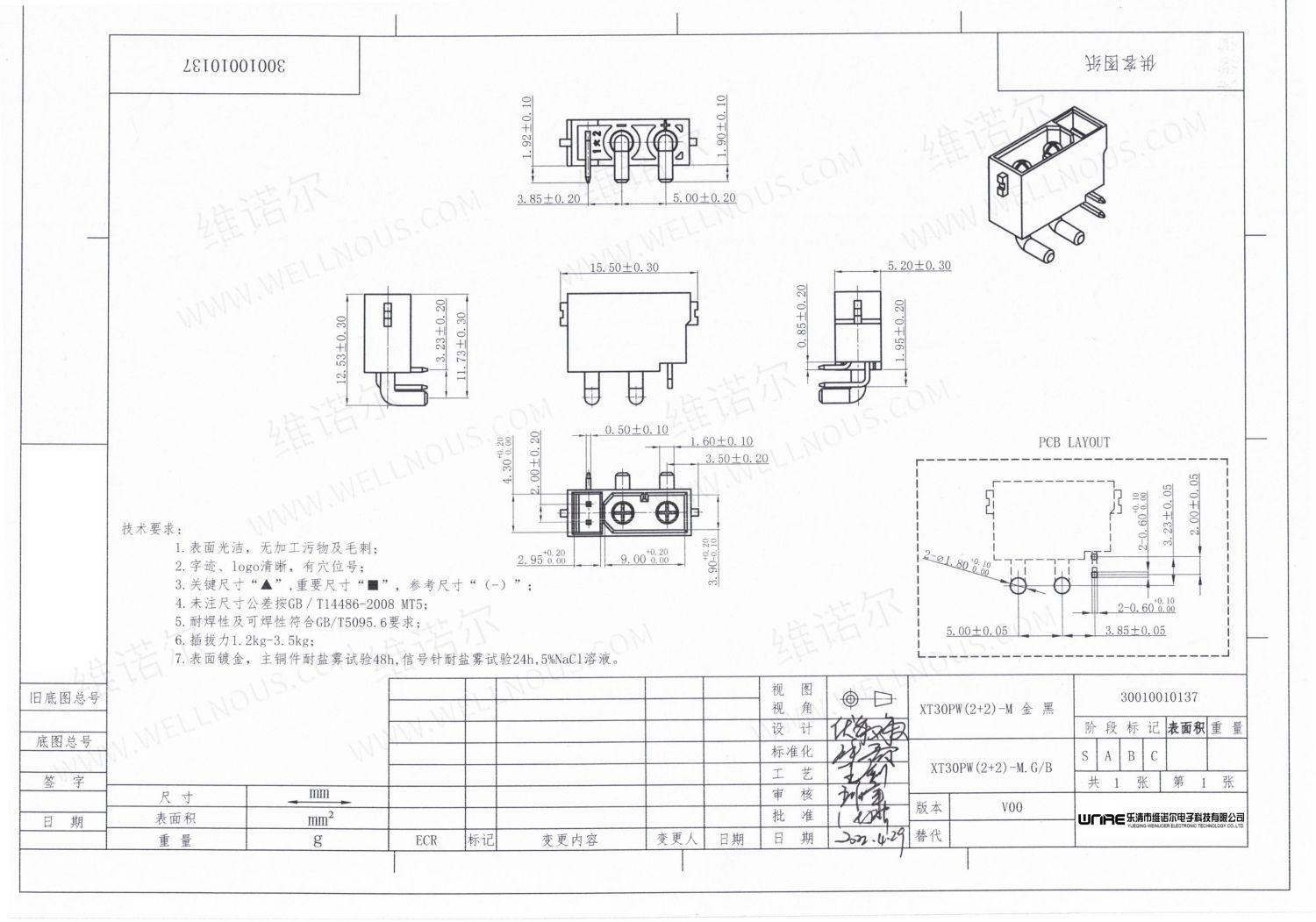

Product Drawing

XT30PW(2+2)-M

Application Areas

2

Telecontrolled aircraft

telecar

Remote control ship

Unicycle

3

Electric vehicle

UAV

Traversal machine

Solar lamp

1

Balancing car

Electric scooter

Solar lamp
