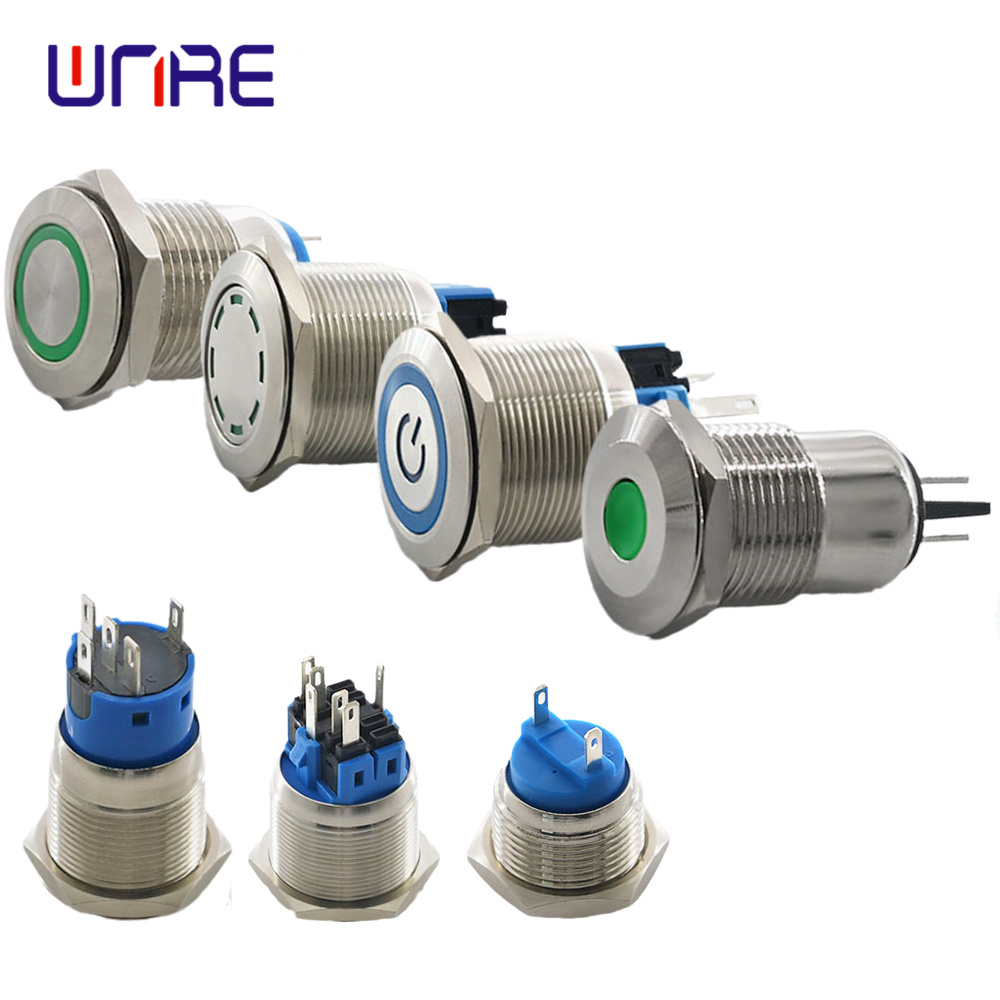

12mm 16mm 19mm 22mm 25mm Latching Momentary Waterproof Illuminated Metal Push Button Switch

Short Description:

Cover Thickness: 1-6mm
IP level: IP66
Protect level: IK08
Shape of button: Flat round led ring point
Panel mounting hole size
LED color RED GREEN BLUE ORANGE YELLOW WTHITE
Rated: 2A 36VDC
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000MΩ


Product Detail

Product Tags

Introduction

Cover Thickness:1-6mm

IP level:IP66

Protect level:IK08

Shape of button:Flat round led ring point

Panel mounting hole size

LED color RED GREEN BLUE ORANGE YELLOW WTHITE

Rated:2A 36VDC

Contact resistance:≤50mΩ

Insulation resistance:≥1000MΩ

Metal push button Switch combination 1NO 1NC 1NO1NC 2NO2NC

Operation Types:Momentary(reset) Latching(Maintained)

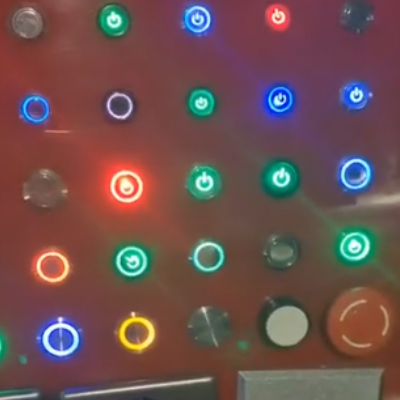

How many kinds of LED illumination types

1Ring LED 2DOT LED 3

Power Logo LED Ring Power Multi-DOT Customized LOGO

How many kinds of LED color RED GREEN BLUE ORANGE YELLOW WTHITE

BI-color Tri-color

How many kinds of connection Type

Solder Terminal Screw Terminal

Power Logo LED Ring Power Multi DOT Customized LOGO

How many kinds of LED color

BI-color Tri-color

How many kinds of connection Type

Solder Terminal Screw Terminal

What LED voltage do you have?

AC/DC 3V,6V,12V,24V,36V,48V,110V,220V

What housing Material do you have

Brass Plating Stainless Steel Aluminum Oxide color

Do you have harness for your switches?

We have harness for 12-40mm switches

Advantage

1. The stainless steel shell can be made of black l Aluminum Oxide color;

2. Waterproof/dust proof/anti-corrosion/high temperature resistance; long mechanical life and  quality guaranteed;

3. The rated load capacity is up to 15A;

4. The latching push button switch self-locking (press to power on, and then press to power off), and momentary push button switch self reset can be customized (press and hold to power on, and power off after hand release);

5. Optional connector, default length is 150 mm

6. The voltage of LED lamp is consistent with that of switch, otherwise it cannot be used;

7. Double self-locking mechanism inside, self-locking ability, more reliable;

8. LED color: red, green, blue, yellow (customized), white (customized);

9. LED voltage: 9-24 V, 220 V, LED customized voltage: 3-8 V, 25-48 V, 110 V;

10. The contact type , ex. 2No, can control the on/off of two circuit lines at the same time;

11. Terminal thick high-quality copper silver plated thick import silver covered contact to ensure power on ability;

12. The LED and switch are connected in parallel in an integrated design, which makes the wiring easier;

13. Attention: customized products could not be returned or replaced, and RoHS needs to be customized separately.

Anti vandal switch

Piezo Switch:

The Stainless Steel Piezo Switch is solution to use in conjunction with a TaskLED Piezotg board. The combination of the 2 units gets a water proof solution for underwater dive lights or other products that are used in harsh environments.

Operates from AC/DC (24V maximum), 200mA maximum switch current.

Can be directly wired to a Piezotg board to create a latched high current switch for battery operated equipment.

Offering information:

Samples

1.Samples Lead time:3-10days

2.Samples cost: Samples are free but buyer pay freight fee

Volume

1.producing capacity 50k/week

A.Lead time volume Qty 10-25days less than 100k

15-30days less than 200k

2.Samples Qty:5-50pcs

3.Volume Qty:

Estimated volume quantities

The estimated year quantity for this parts

Package:Neutral packing or print your band on carton100pcs/bag bags/carton

Payment Terms:Paypal(less than 300$) T/T L/C at sight

Currency: US dollar. RMB.etc

Trade Terms:EXW FOB CIF CFR DAP

Shipping ways: Express(DHL UPS Fedex) by sea by air freight
