3P Right Angle 125/150/200A DC 1500V High Voltage Connector Plug Batteries Plugs Terminal Socket HV Connector High Power Connect

Short Description:

Product name: 3P Right Angle High Voltage Connector
Plastic housing: PA66-GF V0, Orange
Terminal: Copper alloy, silver plated
RFI/EMI protection: metal shield

Send email to us

Product Detail

Product Tags

Product name: 3P Right Angle High Voltage Connector
Plastic housing: PA66-GF V0, Orange
Terminal: Copper alloy, silver plated
RFI/EMI protection: metal shield
Operation force: ≤100N
Temp. Range: – 40 ℃ ~ 140 ℃
Rated Voltage: 1500V DC
Mating Cycles: ≥50
Current Capacity: 125A=25mm², 150A=35mm², 200A=50mm²

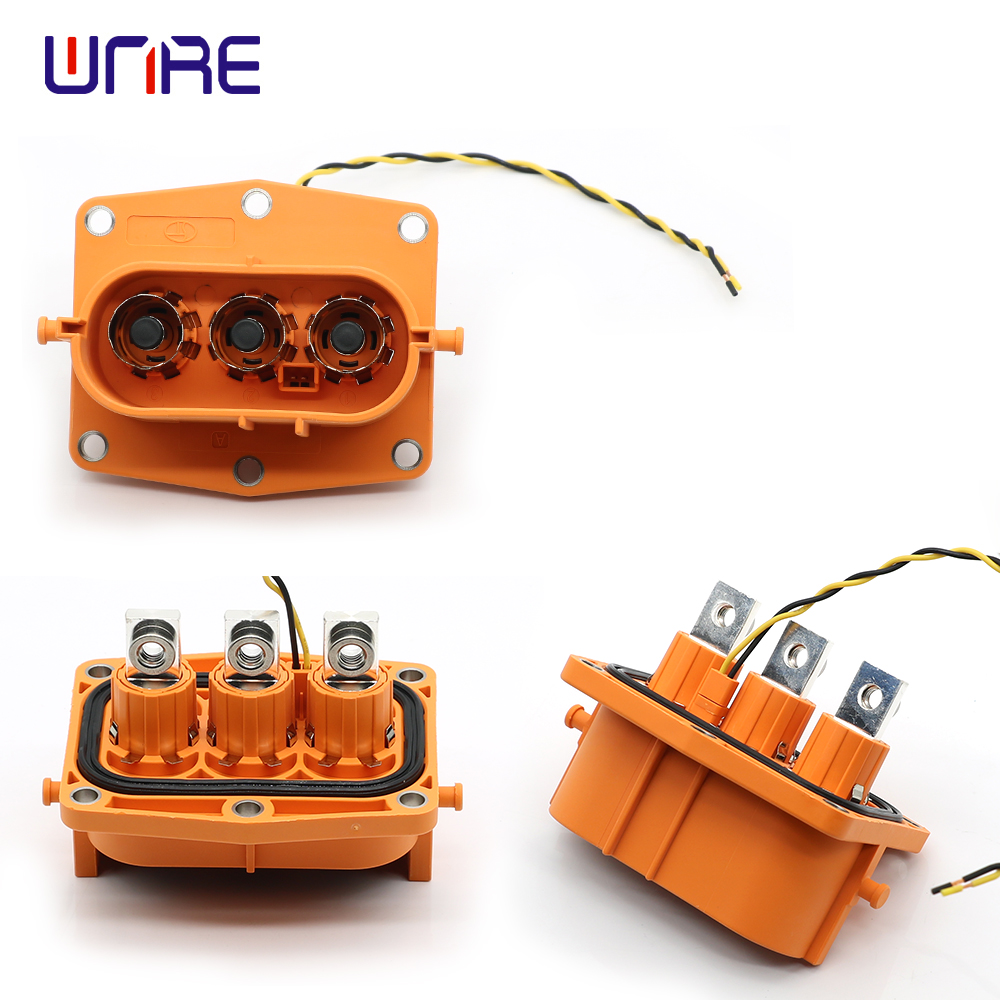

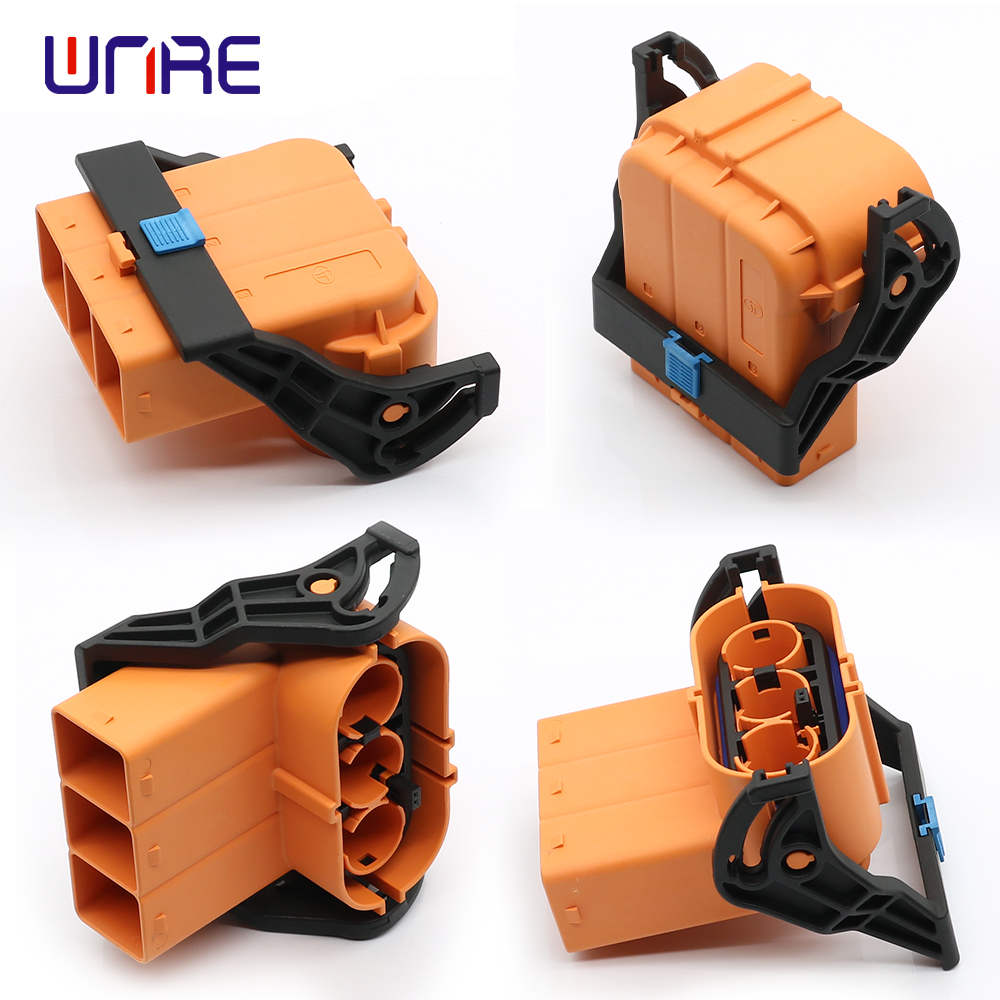

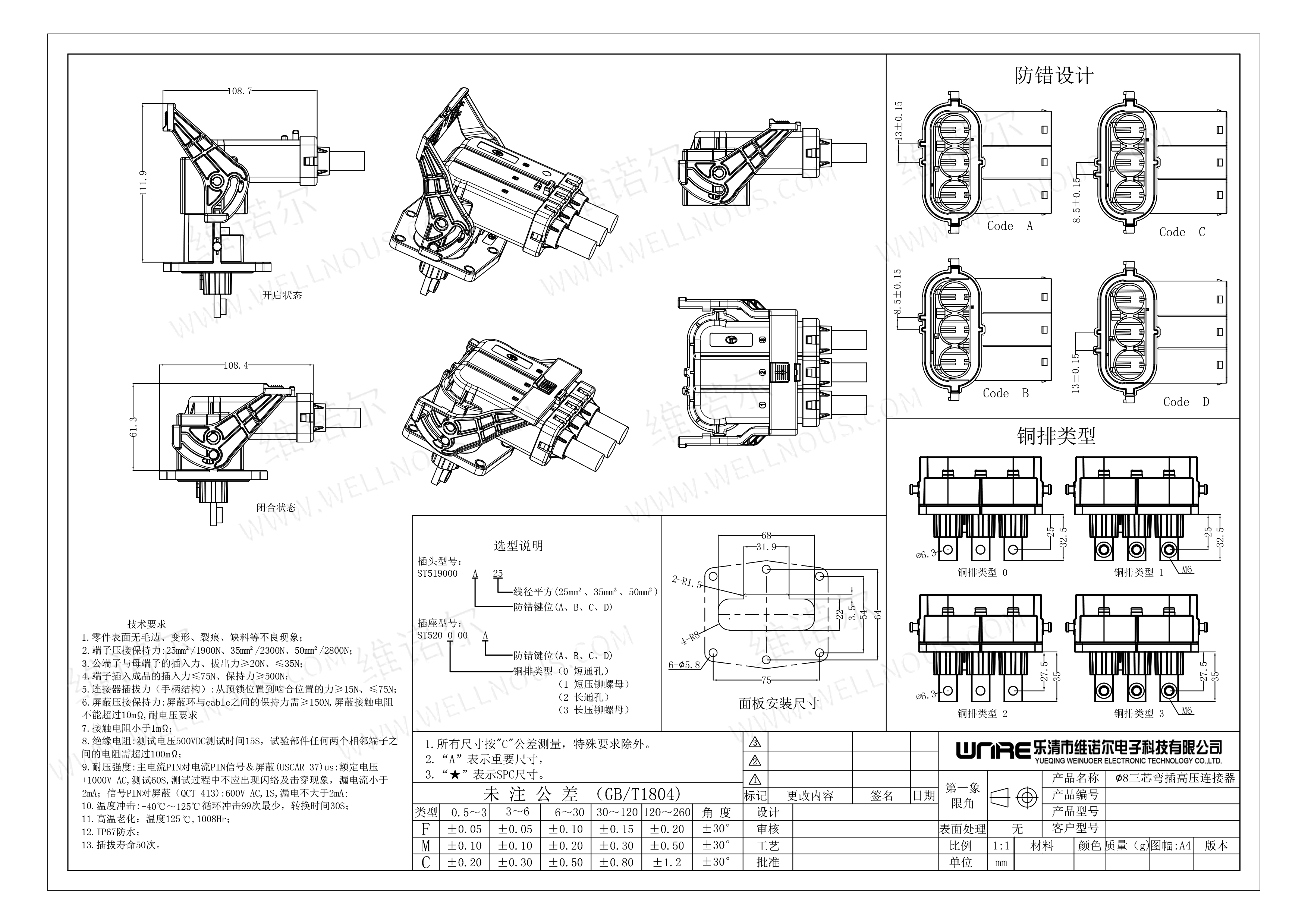

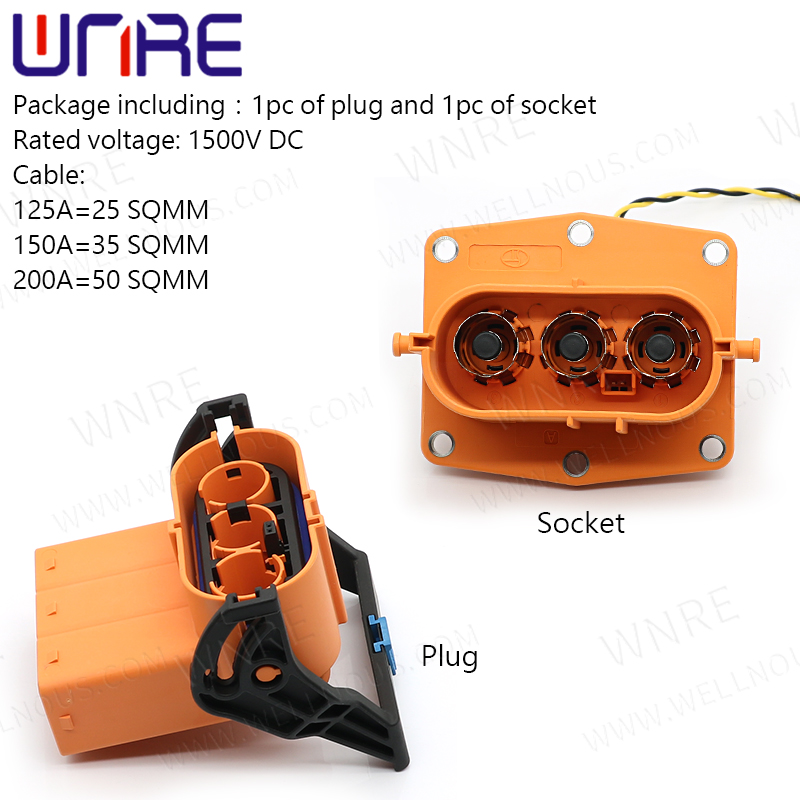

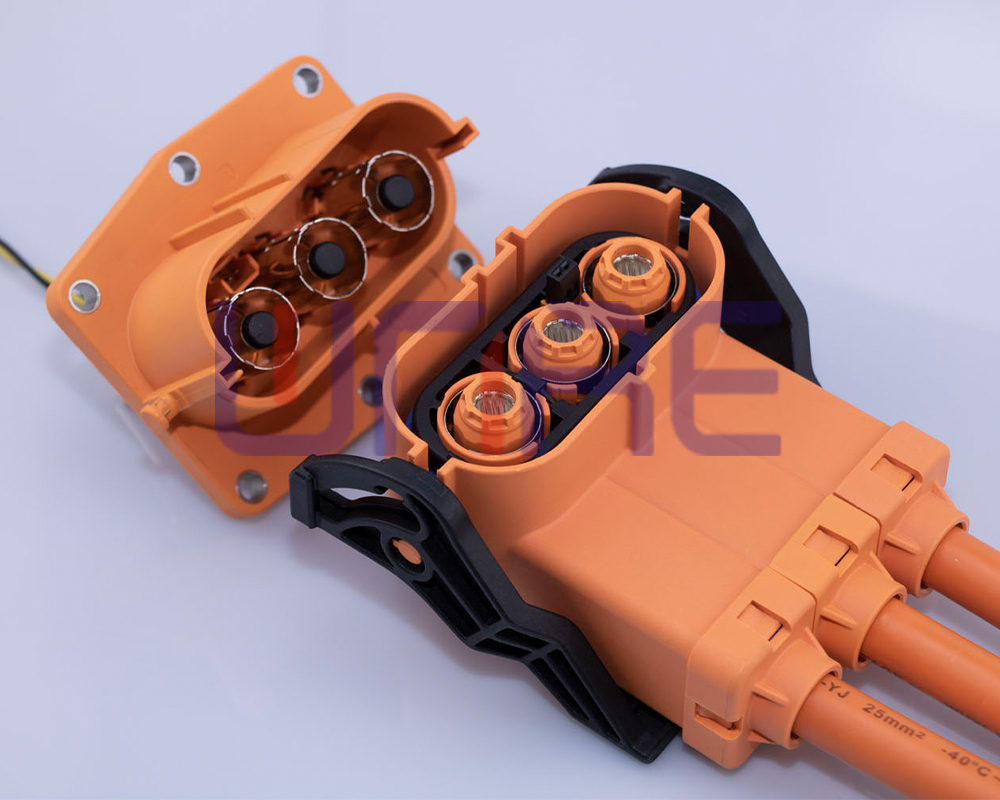

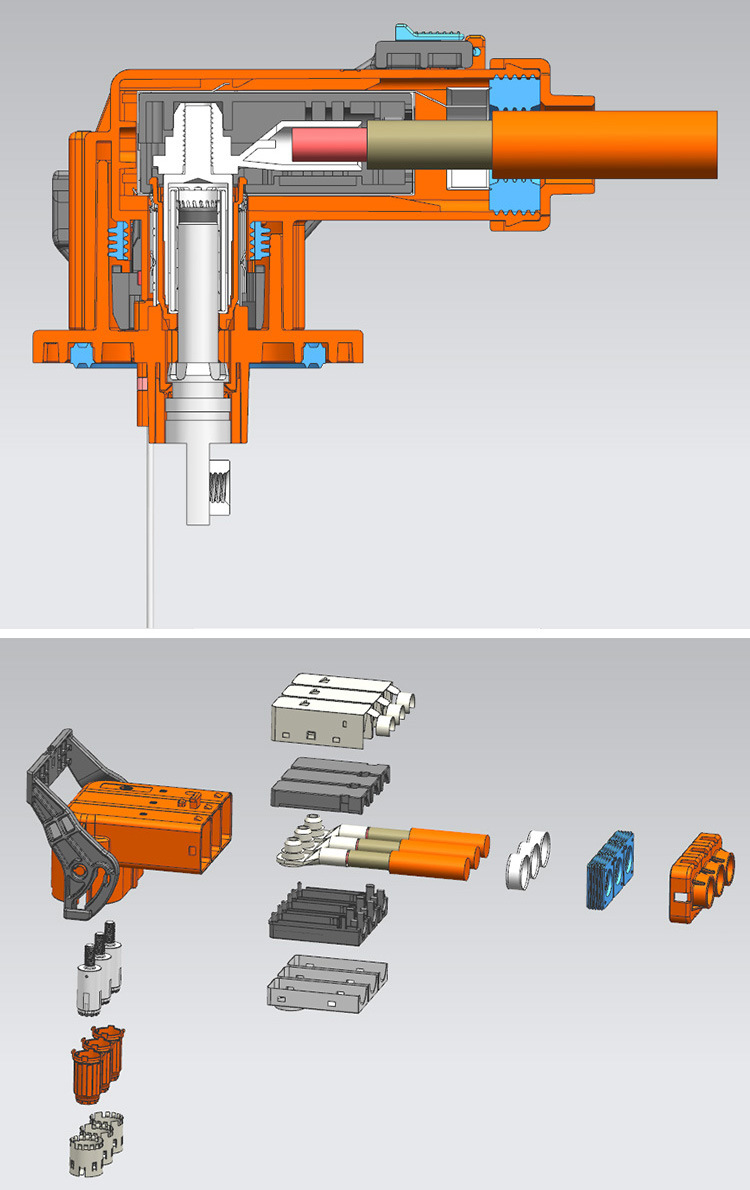

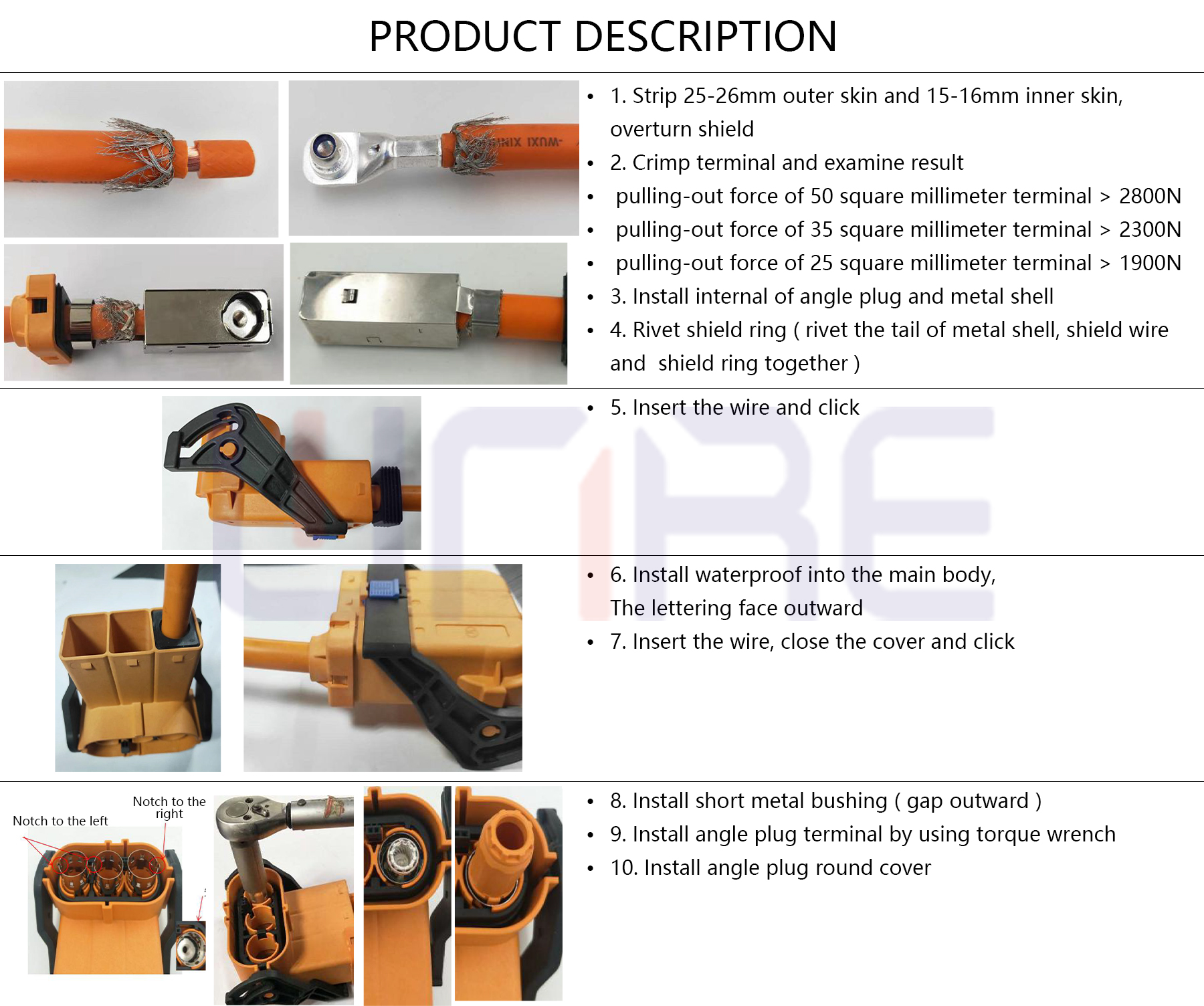

三芯弯插头配件 8mm三芯弯插头插座三芯插座解析图弯头接线图弯插 ∅8三芯弯插高压连接器总成 8mm三芯弯插产品说明书包装-三芯弯插头包装-三芯插座

Packing & Delivery

Packing
1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery
Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
