DC Power Jack Connector DC-044A Panel Mount 5.5X2.1MM Female Charging Socket

Short Description:

Product Name: DC Power Jack

Model Name: DC-044A

Color: Balck

Pins: 5P

Gender: Female

Contact Resistance: ≤100mΩ

Rating: DC 30V 0.5A

Operation Temp: -30℃ ~ +70℃

Actuating Force: 3~20N

Electrical Life: 50,00 Cycles Min


Product Detail

Product Tags

DC power socket is a kind of special power and computer monitor to match the socket, it is composed of transverse socket, longitudinal socket, insulation base, fork type contact shrapnel, directional keyway, two fork type contact shrapnel located in the center of the base, into the vertical and horizontal arrangement are not connected. One end of the fork contact shrapnel is a connection port, which is exposed on the top surface of the base cylinder body for connecting the input power supply cord or soft cable. The other end of the fork contact shrapnel is composed of two elastic arms connected by the matrix, which is arranged in the insulation base socket in the direction of the DC plug insertion. It is used for the computer monitor to make it work normally.

DC sockets come in two packages: SMT and DIP.

DC power outlet center needles are: 0.5 mm / 0.7 mm / 1.0 mm / 1.1 mm / 1.3 mm / 1.65 mm / 2.0 mm / 2.5 mm / 3.0 mm

Products & Drawings

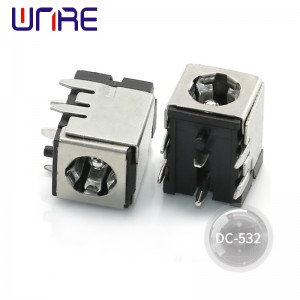

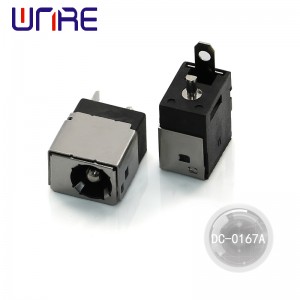

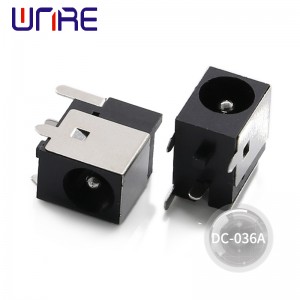

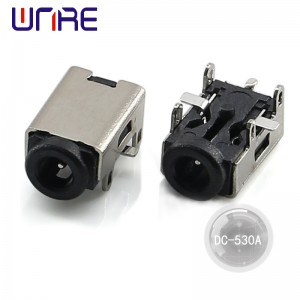

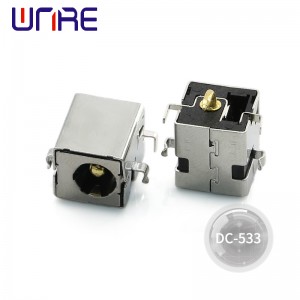

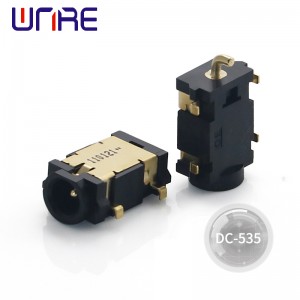

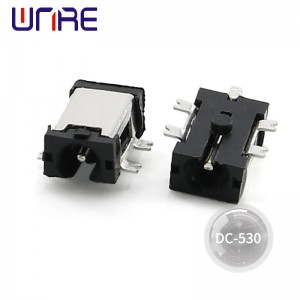

DC-044ADC-044BDC-530ADC-532DC-533DC-0167ADC-530DC-535DC-0167ADC-036A74cd72d2b3c5a80c414d8fcec02d6b8d85bc4820f838b73715ebcc909fc4b8

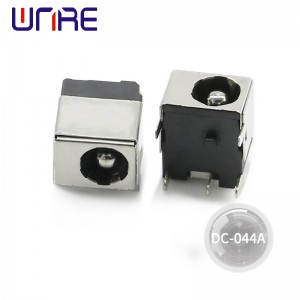

DC-044A

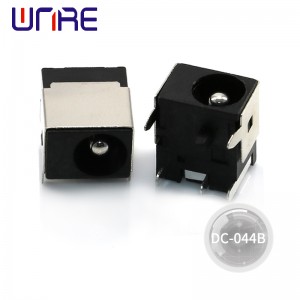

DC-044B

Application Range

1. Audio / Video product:MP3, MP4, DVD, stereo system

2. Digital devices: digital camera, digital video

3. Remote control: Vehicle, rolling door, Home security products

4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.

5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.

6. Security Products: Videophone, Monitor etc.

7. Toy: electronic toy etc.

8. Computer products: Camera, recording pen etc.

9. Fitness equipment: running machine, massage chair, timer etc.

10. Medical Equipment: sphygmomanometer, thermometer,the hospital call system and other similar products.

Packing & Delivery

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery

Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
