5.8X5.8 6 Pin DPDT Plastic Momentary PCB Self-lock or Reset Push Button Switch

Short Description:

Product Type: push button switch

Model Number:kan-5.8

Pins: 3 or 6 pins

Rating: 0.1A 30VDC

Function: DPDT Latching/Momentary

Contact Resistance: 0.03Ω max

Insulation Resistance: 100MΩ min

Dielectric Strength: 1500V AC for 1 min

Operating Temperature: -25°C~+70°C

Electrical Life: ≥10,000 Cycles


Product Detail

Product Tags

Model number KAN-5.8 Product type
push button switch / key press switch
Pins 3 or 6 pins Button type
high head/flat head
Contact Resistance 0.03Ω max Insulation Resistance
100MΩ min
Rating
0.1A 30VDC Dielectric Strength 1500V AC for 1 min
Operating Temperature -25°C~+70°C Electrical Life ≥10,000 Cycles

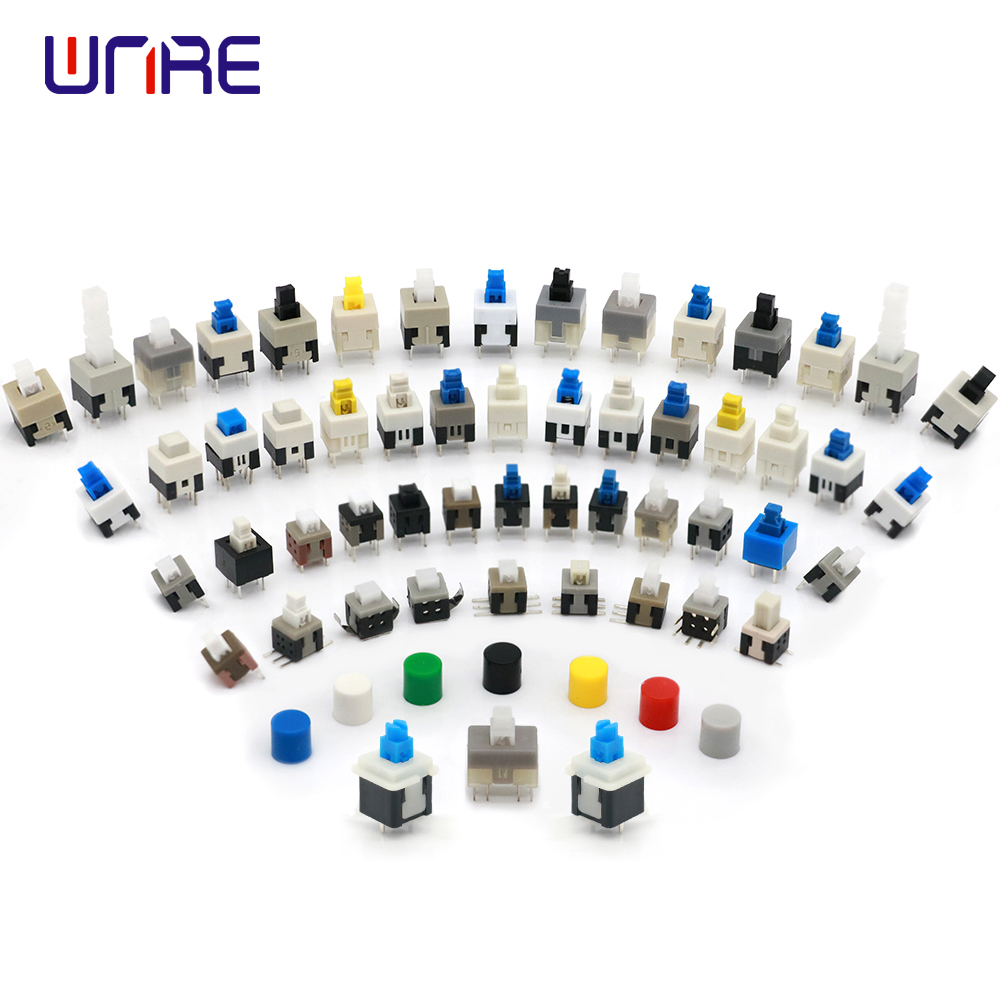

Specifications of self-locking/unlocking switches are:  5.8*5.8 / 7*7 / 8.0*8.0 / 8.5*8.5mm

Terminal pins can be used on PC boards.

It feels good and can be matched with a cap.

Self Locking:NO,Press power on maintain, one more press power off

Reset: Press Button power on, press off come back to power off

Self-locking switch generally refers to the switch comes with mechanical locking function, press down, let go of the button is not completely jump up, in a locked state, need to press once again, only to unlock completely jump up. It's called a self-locking switch. Early TV sets and monitors that were completely power off were the ones that used the switch.

Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

Self-locking switch and tact switch difference:

In fact, self-locking switch and light touch switch describe switch performance from different aspects; "Self-locking" means that the switch can be kept in a certain state (on or off) by a locking mechanism, and "light touch" means the amount of force used to operate the switch.

Products & Drawings

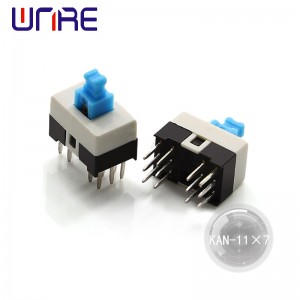

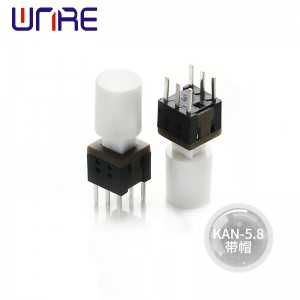

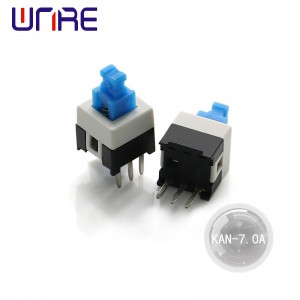

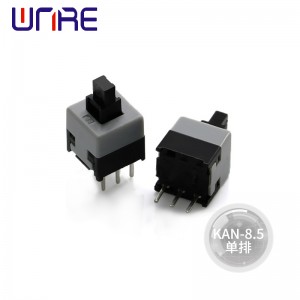

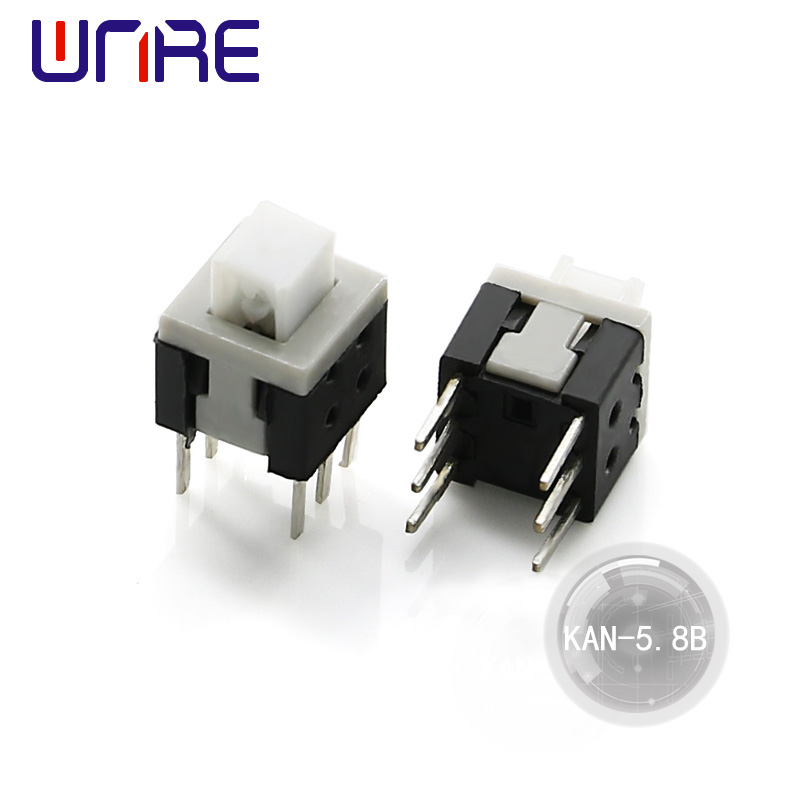

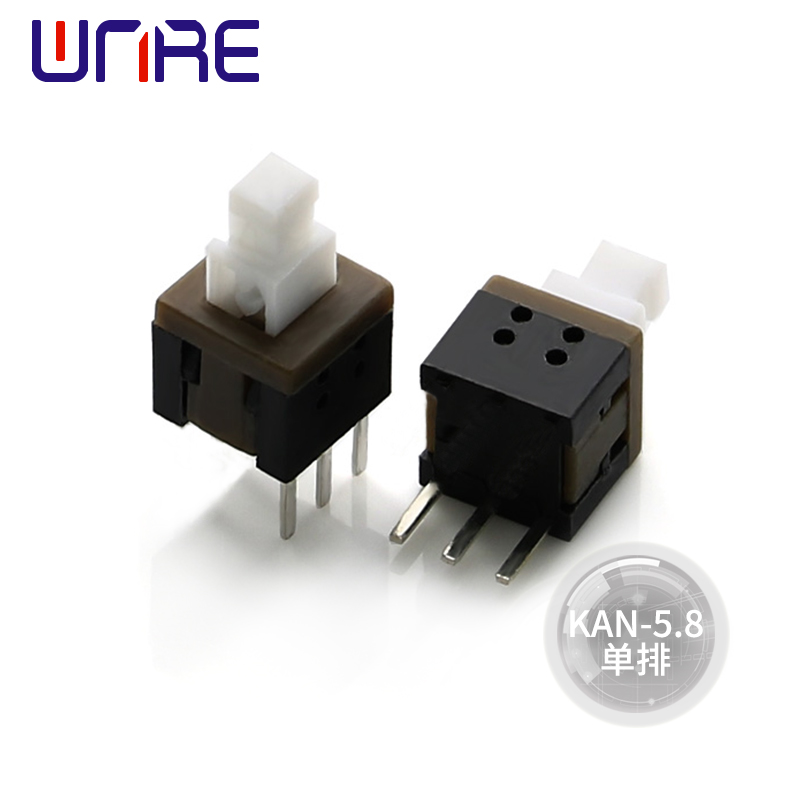

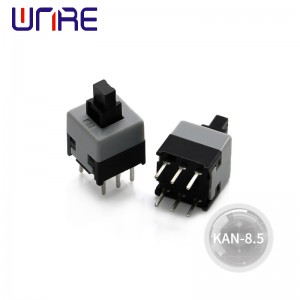

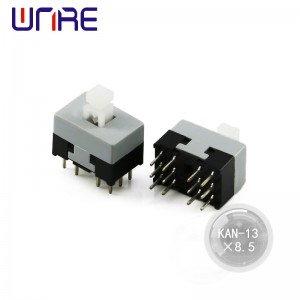

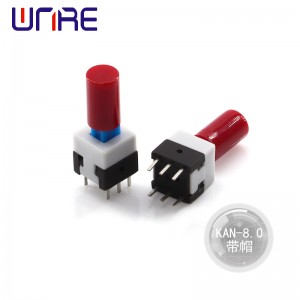

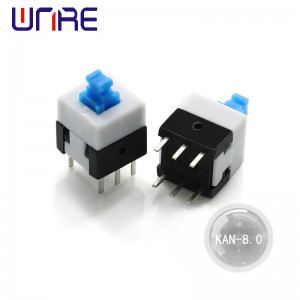

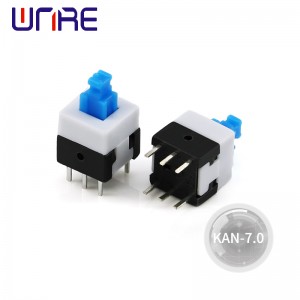

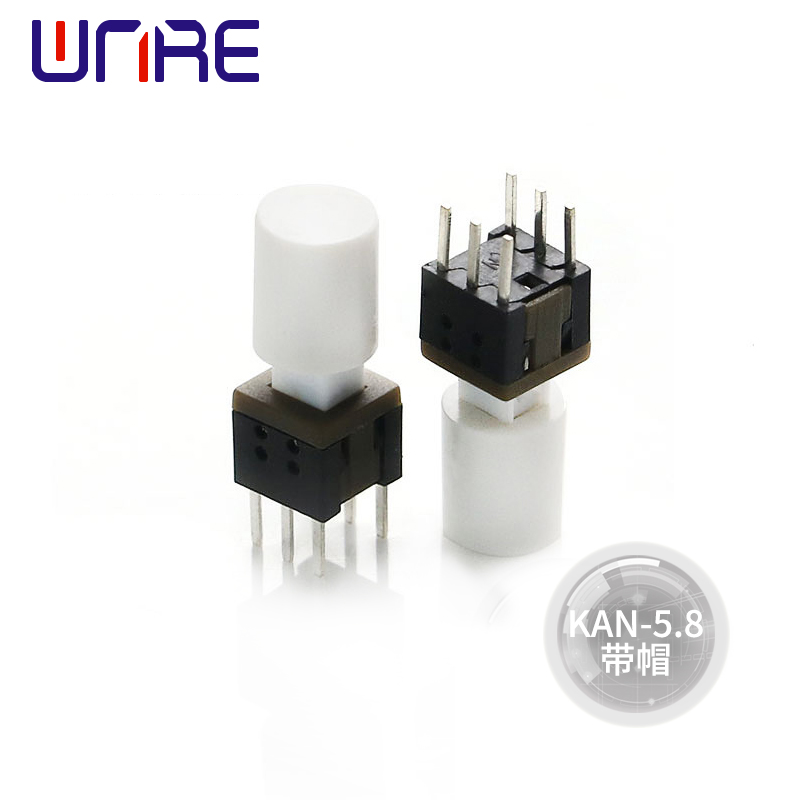

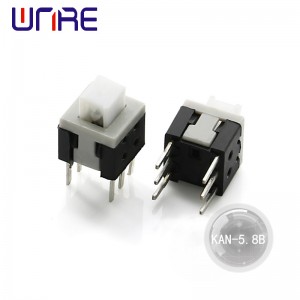

KAN-5.8 KAN-5.8B KAN-5.8. KAN-5.8 3P KAN-7.0 KAN-7.0A KAN-8.0 KAN-8.5KAN-13×8.5 KAN-11×7 KAN-8.5. KAN-8.0.

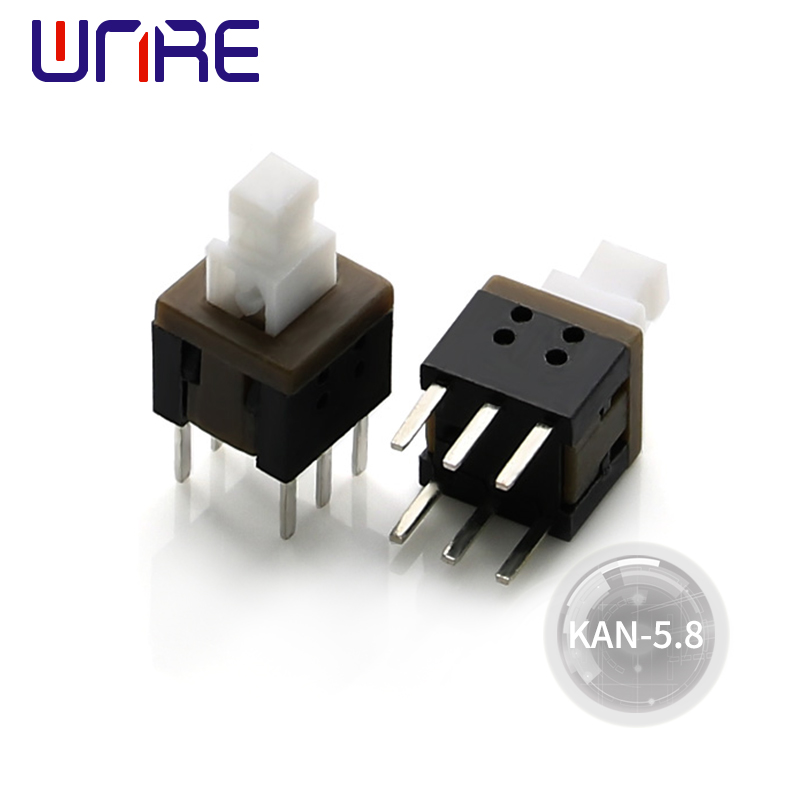

KAN-5.8

Packing & Delivery

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery

Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
