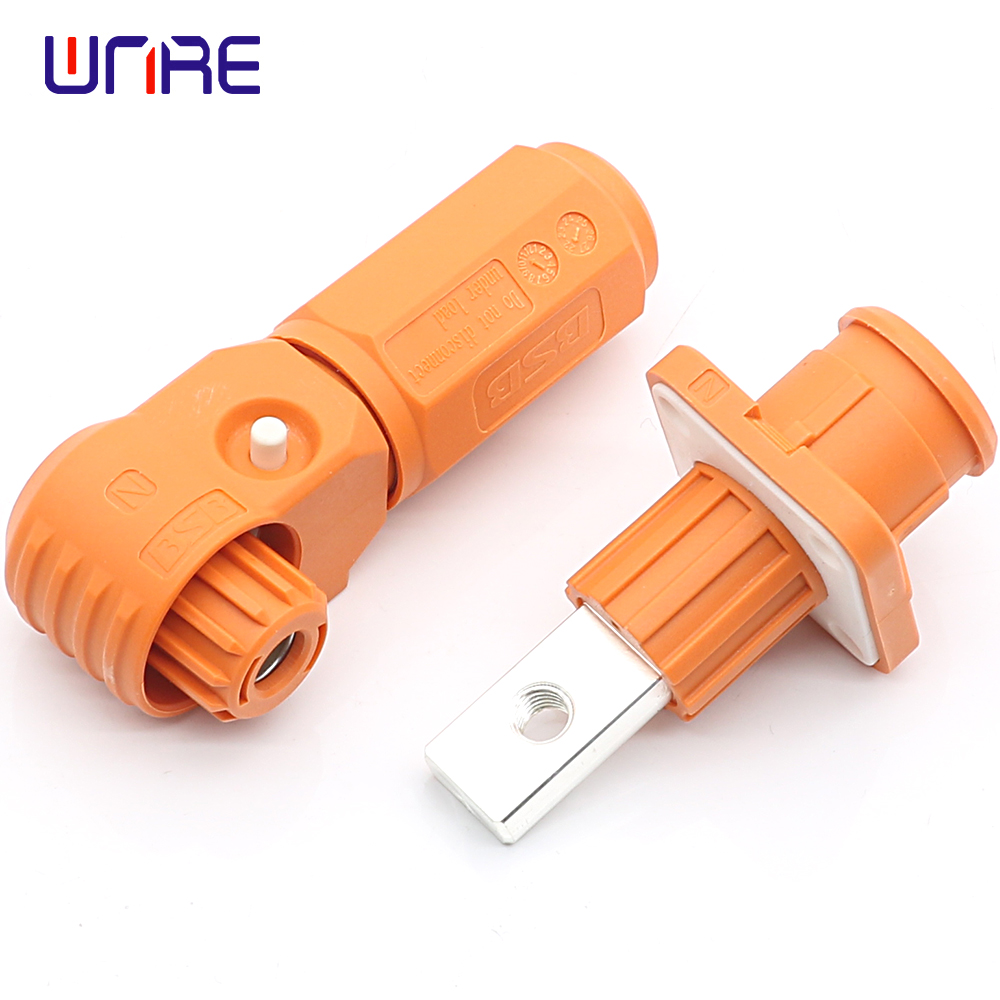

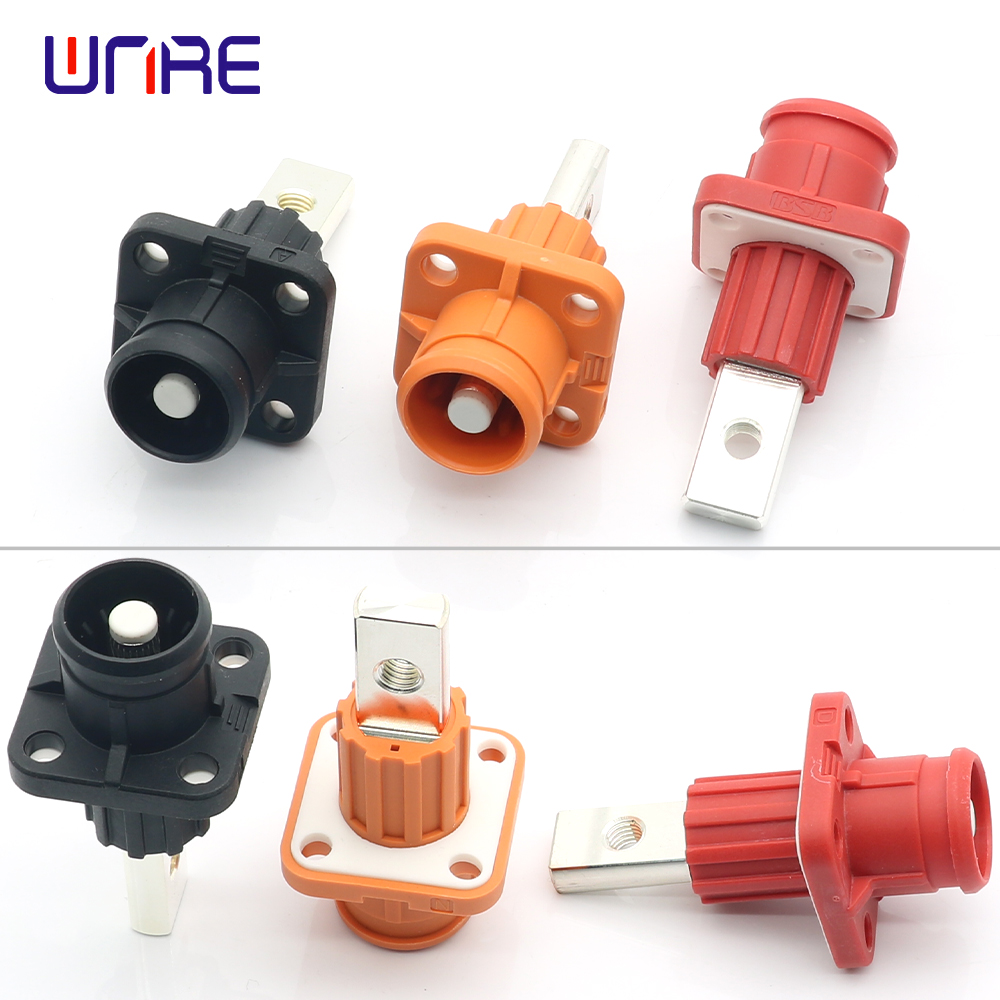

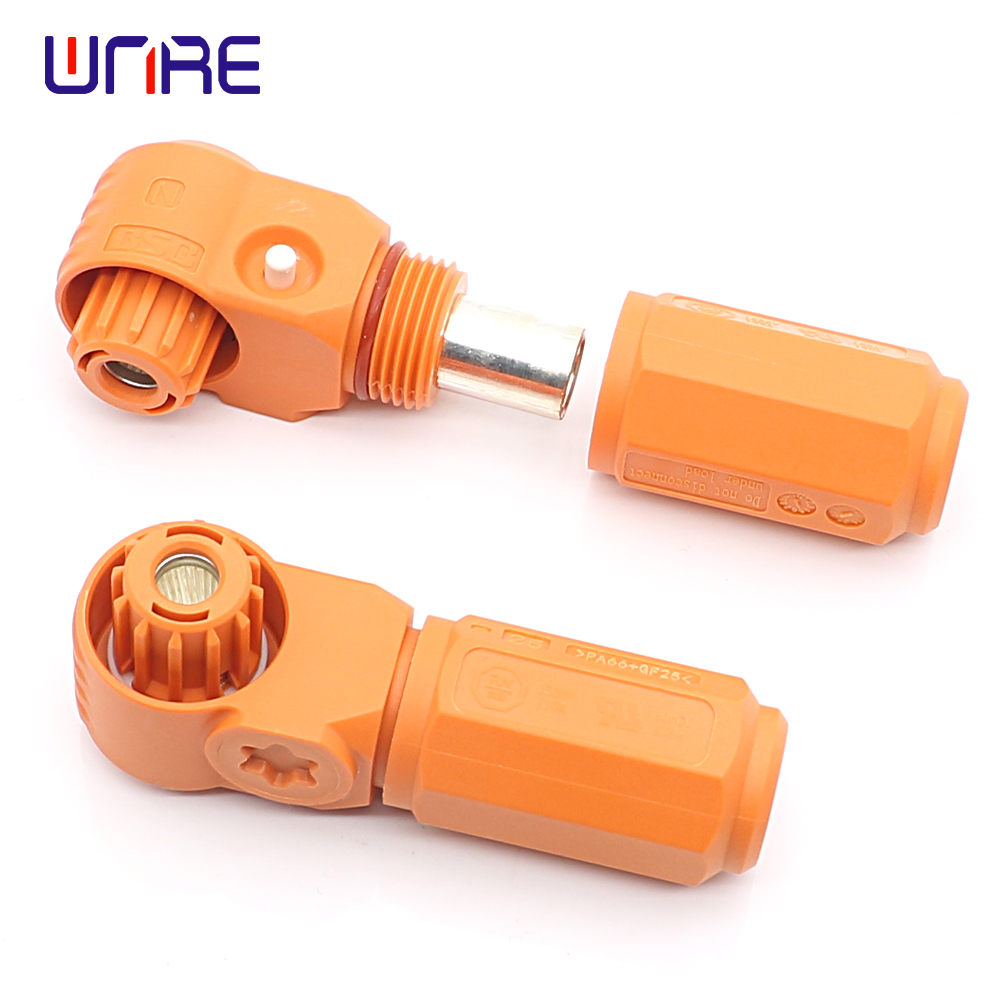

High Voltage Battery Energy Storage Connector Quick Plug Terminal Orange Black

Package including：1 set (plug and socket), orange ,red or black

Product Parameter：

Model: E57 Right Angle energy storage connector

Rated voltage: 1000V/DC

Rated current: 80A (wire 10mm²), 100A (wire 16mm²), 130A (wire 25mm²)

Dielectric strength: 4000V AC (50Hz, RMS) withstand voltage for 1min

Insulation resistance: Test voltage 1000V DC, ≥500 Mω under normal conditions, ≥20 Mω in hot and humid conditions

Operating temperature: ‐40℃ ~ 85℃

Use relative humidity: 25℃, 5% ~ 95%

Storage temperature: ‐5℃ ~ 30℃

Salt spray grade: 144h (sealed)

Protection level: Before plugging, the plug and socket meet IP20, IPXXH. After insertion, IP67 is satisfied

Mechanical life: 200 cycles

Note: Socket M5 threaded hole, recommended torque: 1.7-2.5N.M

Product Detail

Product features:

1, the connector insertion is convenient and fast, can achieve blind insertion

2, the positive and negative poles have key structure error prevention function and color vision error prevention function

3, 360° arbitrary Angle insertion, insertion can be 360° rotation

4. The protection level after connector separation meets IPXXB

5. The protection level after connector insertion meets IP67

6, double insulation protection to ensure the safety of the operator

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product.
