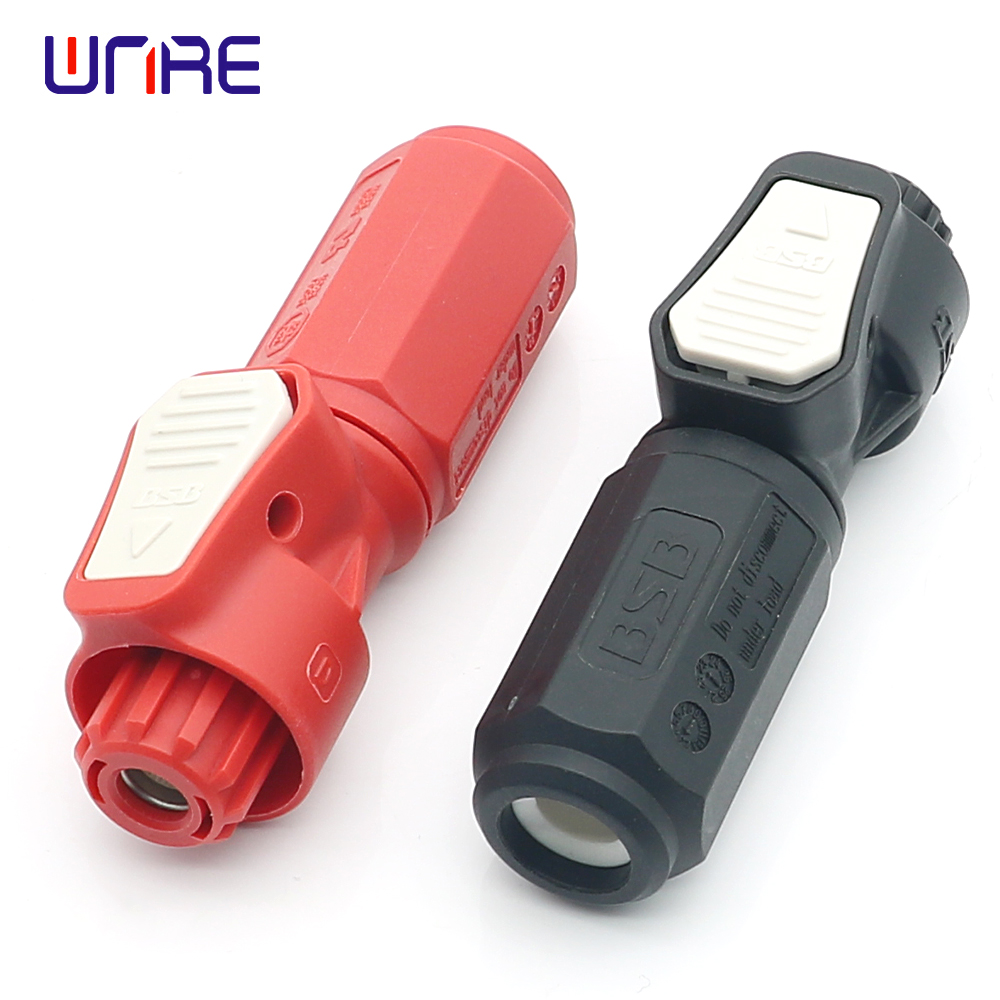

High Voltage Battery Energy Storage Connector Straight Plug Terminal 80/100A

Package including：1 set (plug and socket), red or black

Product Parameter：

Model: E57 Straight energy storage connector

Rated voltage: 1500V/DC

Rated current: 80A (wire 10mm², 7AWG), 100A (wire 16mm², 6AWG), 130A (wire 25mm², 4AWG)

Insulation resistance: 2000MΩ (1000V DC)

Voltage requirement: 5000V DC 60S

Contact resistance: 1.5MΩ max

Operating temperature: ‐40℃ ~ 125℃

Use relative humidity: 25℃, 5% ~ 95%

Storage temperature: ‐5℃ ~ 30℃

Salt spray grade: 48H

Protection level: After plugging, meet IP67

Mechanical life: 500 cycles

Note: Socket M5 threaded hole, recommended torque: 1.7-2.5N.M

Product Detail

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product.
