HVSL IP67 Waterproof Connector Straight 2 Pin 125A 150A 200A Orange Nylon High Current Power Connector

HVSL IP67 Waterproof Connector Straight 2 Pin 125A 150A 200A Orange Nylon High Current Power Connector Featured Image

Short Description:

Model:High voltage connector

Terminal specifications: 2 x Φ8mm Radsok

Plug type: straight/bent

Maximum rated voltage: 1500V DC

Adapter cable specifications: 25mm² (125A), 35mm² (150A), or 50mm² (200A), shielded

Pull out force: ≤100N

Temperature: -40°C to 140°C

Features: waterproof and dustproof, stable performance, reliable connection

Connector insulation part adopts PA66, high strength, high and low temperature resistance, flame retardant UL94/VO grade.

Send email to us

Product Detail

Product Tags

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product. Please make sure you do not mind before you bid. Thank you!

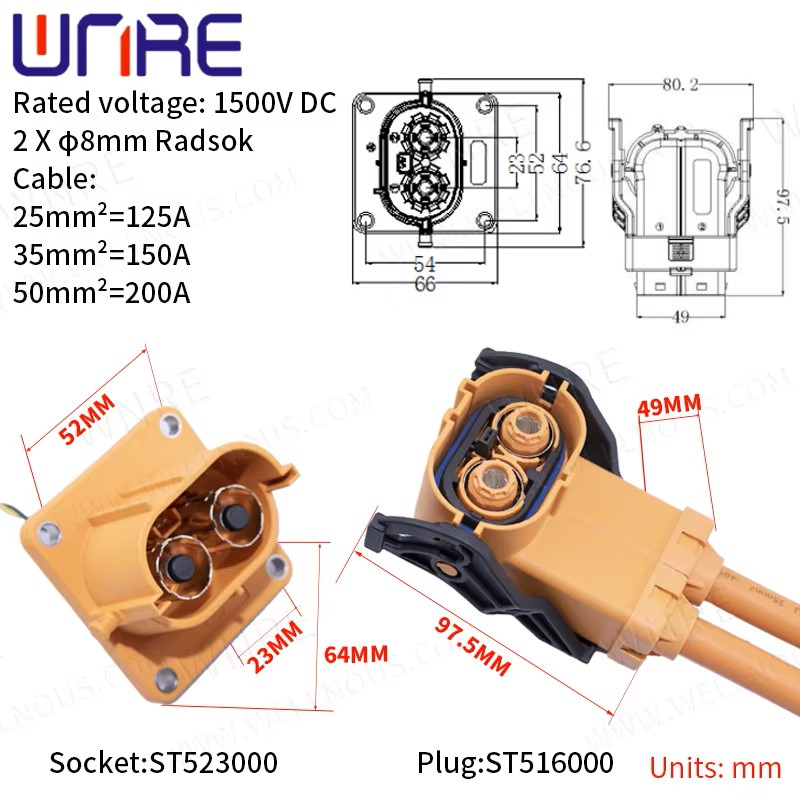

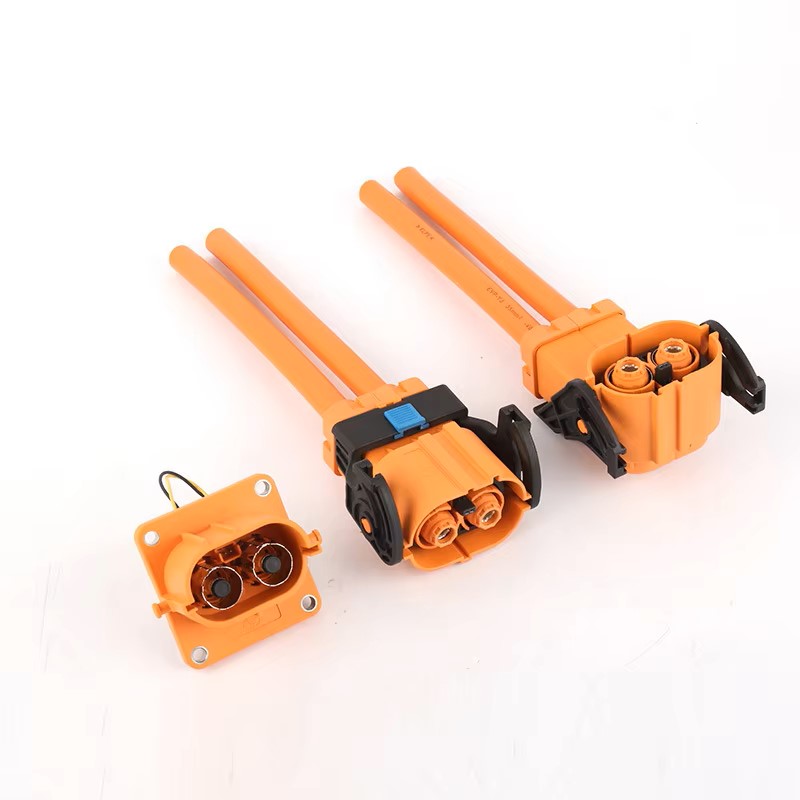

HVSL

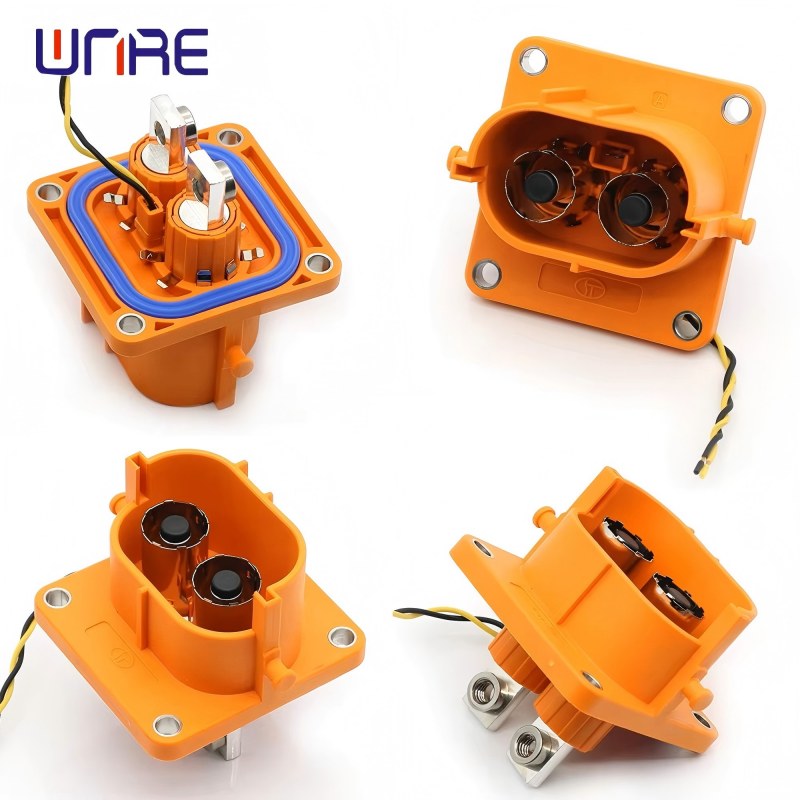

HVSL (2)(1)

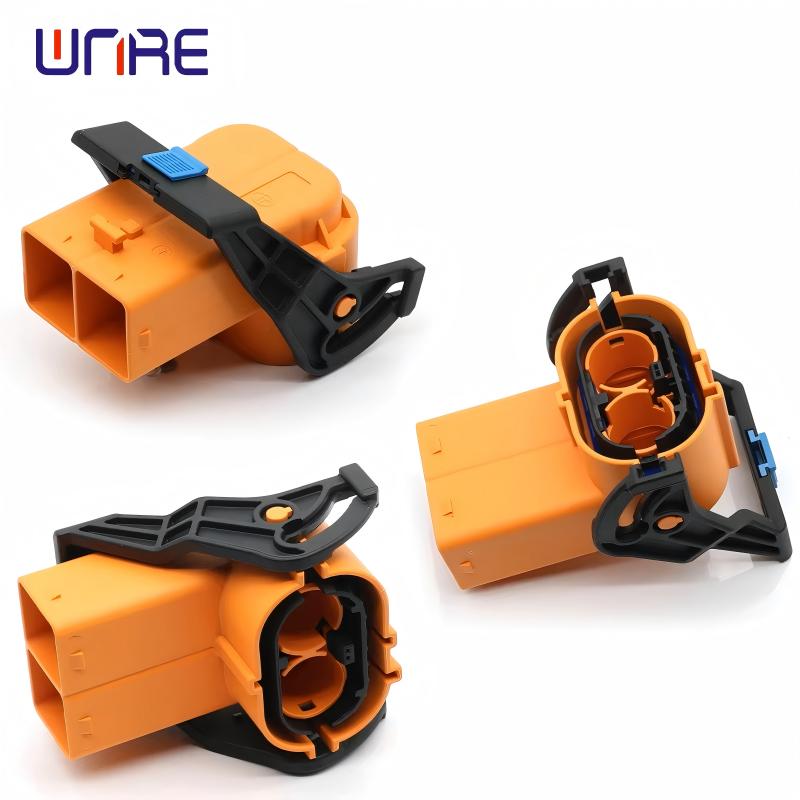

HVSL (3)(1)
